AT-S105 Management Software Web Browser User’s Guide
155
Basic STP and RSTP Configuration
To configure the basic STP and RSTP settings, do the following
procedure:
1. From the main menu on the left side of the page, select Bridge.
The Spanning Tree folder is displayed.
2. From the Bridge folder, select the Spanning tree folder.
3. From the Spanning tree folder, select RSTP.
The Rapid Spanning Tree Configuration Page is displayed. See
Figure 49.

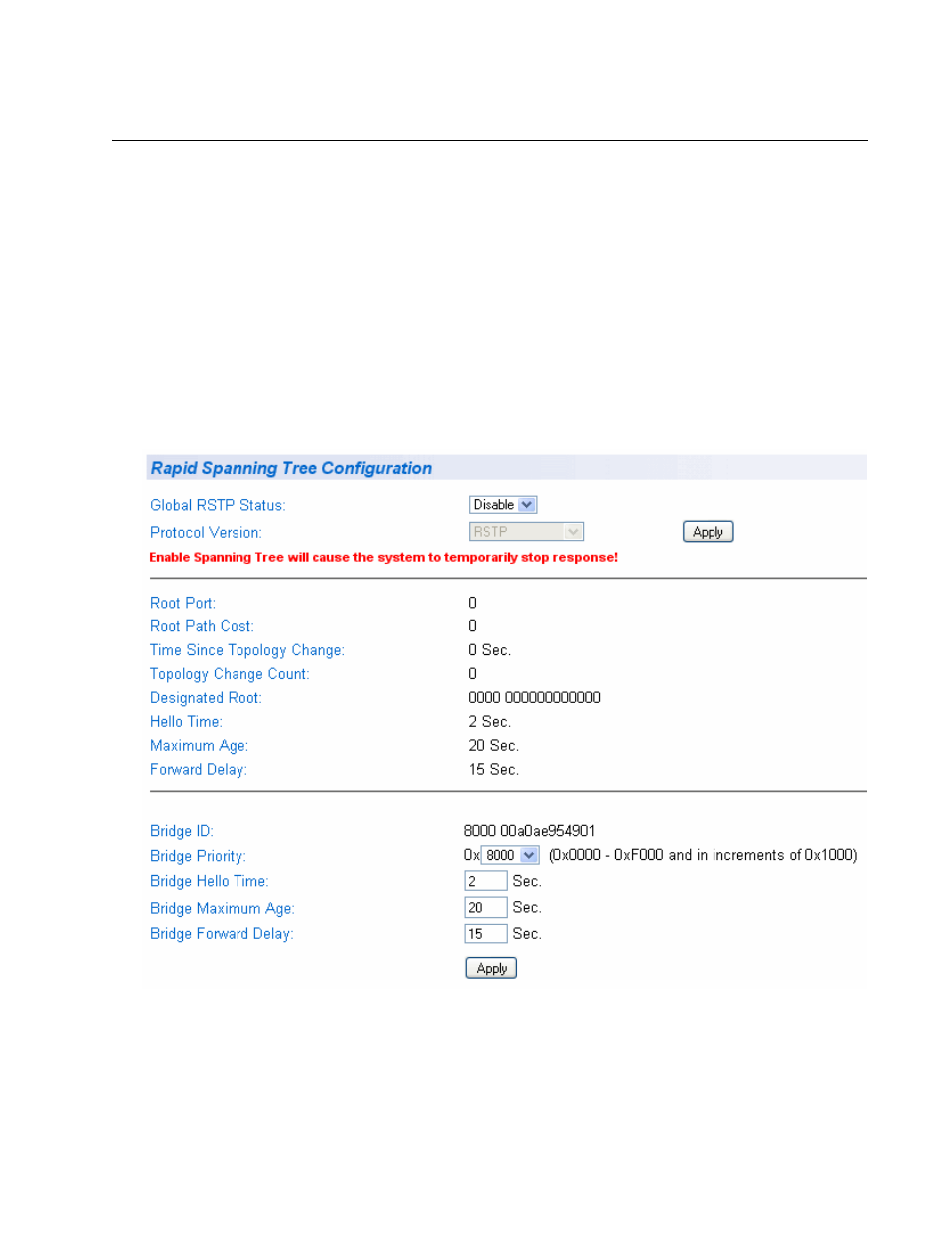

Figure 49. Rapid Spanning Tree Configuration Page
