AT-S105 Management Software Web Browser User’s Guide
105
Creating an SNMP Community
This procedure explains how to create an SNMP community.
To create an SNMP community, do the following procedure:
1. From the main menu on the left side of the page, select the SNMP
folder.
The SNMP folder expands.
2. From the SNMP folder, select Community Table.
The Community Table Page is displayed. See Figure 33.

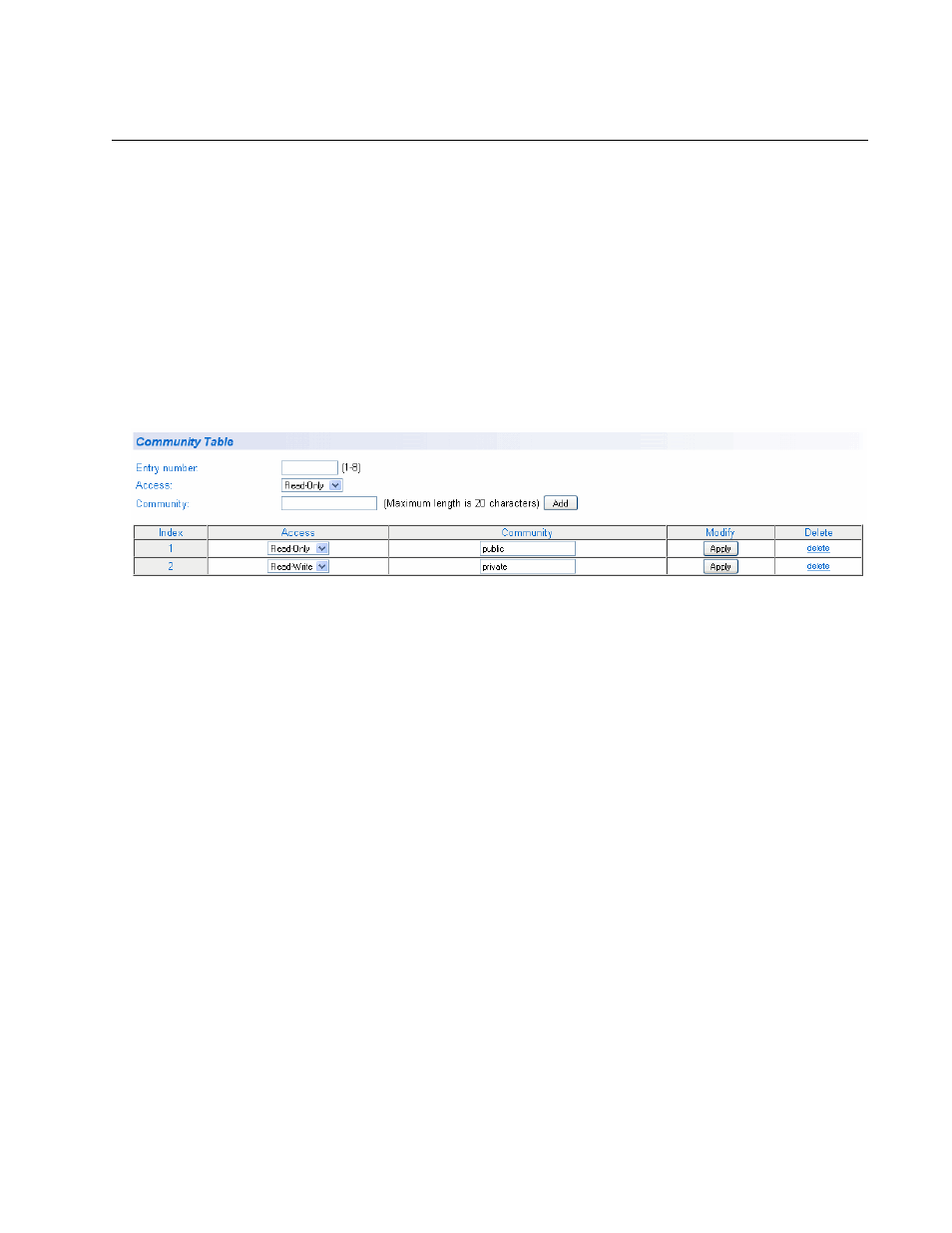

Figure 33. Community Table Page
3. Type an available entry number from 1 through 8 next to the Entry
number field.
4. To select the read/write access for the community, use the pull-down
menu next to the Access field to select Read-Only access or Read-
Write access.
5. Type the name of the new SNMP community in the Community field.
Enter a name between 1 and 20 characters in length.
6. Click Add.
7. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
