Chapter 13: Spanning Tree and Rapid Spanning Tree Protocols
158
Configuring RSTP Port Settings
This section contains the following topics:
ˆ “Configuring the Basic RSTP Port Settings,” next
ˆ “Configuring the Advanced RSTP Port Settings” on page 160
Configuring the
Basic RSTP Port
Settings
To configure the basic RSTP port settings, do the following procedure:
From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
5. From the Bridge folder, select the Spanning tree folder.
6. From the Spanning tree folder, select the RSTP Basic Port folder.

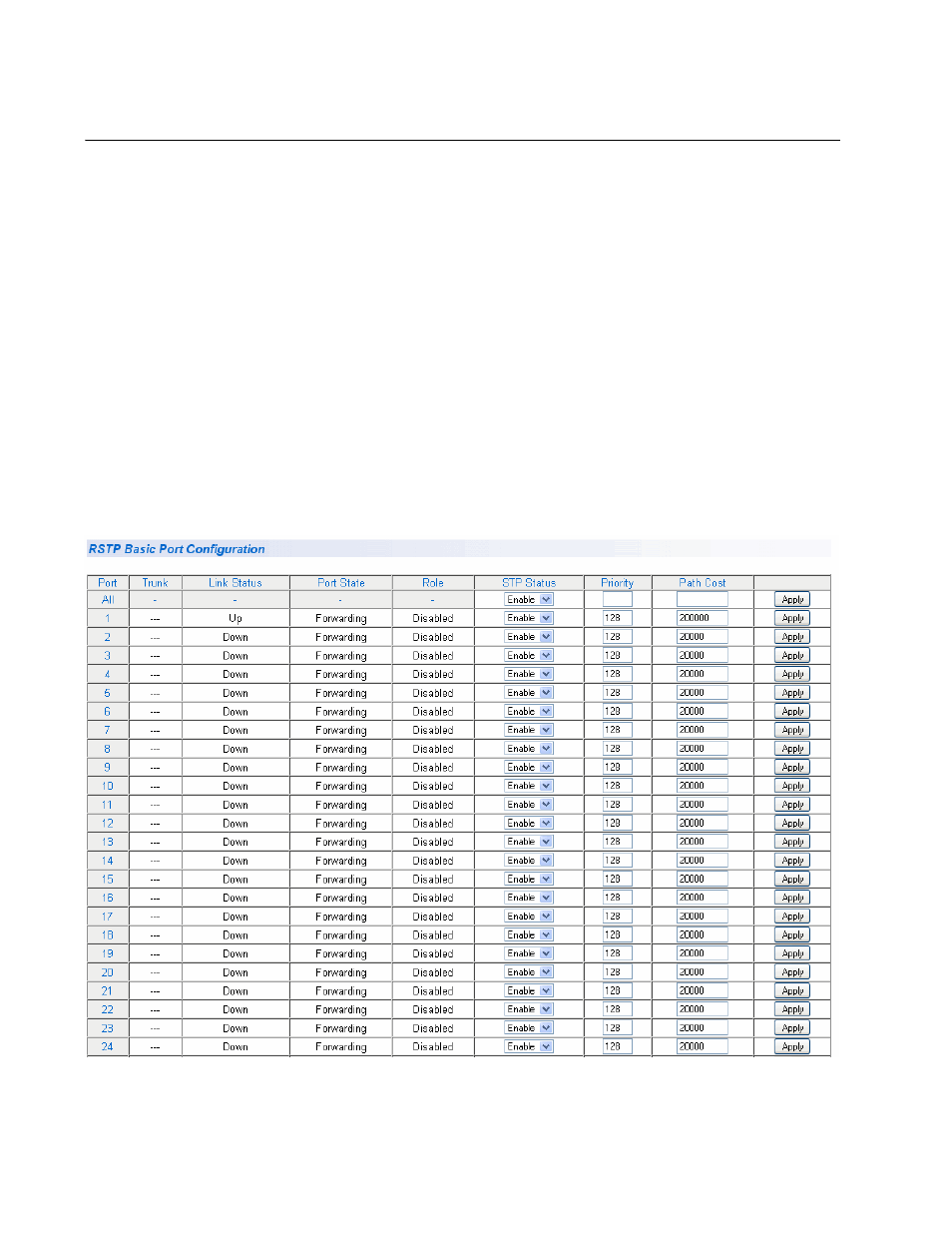

The RSTP Basic Port Configuration Page is displayed. A partial view is
shown in Figure 50.
Figure 50. RSTP Basic Port Configuration Page
