Chapter 13: Spanning Tree and Rapid Spanning Tree Protocols
164
Viewing the Spanning Tree Topology
To view the current spanning tree topology, do the following procedure:
1. From the main menu on the left side of the page, select Bridge.
This folder expands.
2. From the Bridge folder, select the Spanning tree folder.
3. From the Spanning tree folder, select Topology Info.
The Designated Topology Information Page is displayed. A partial
view is shown in Figure 52.

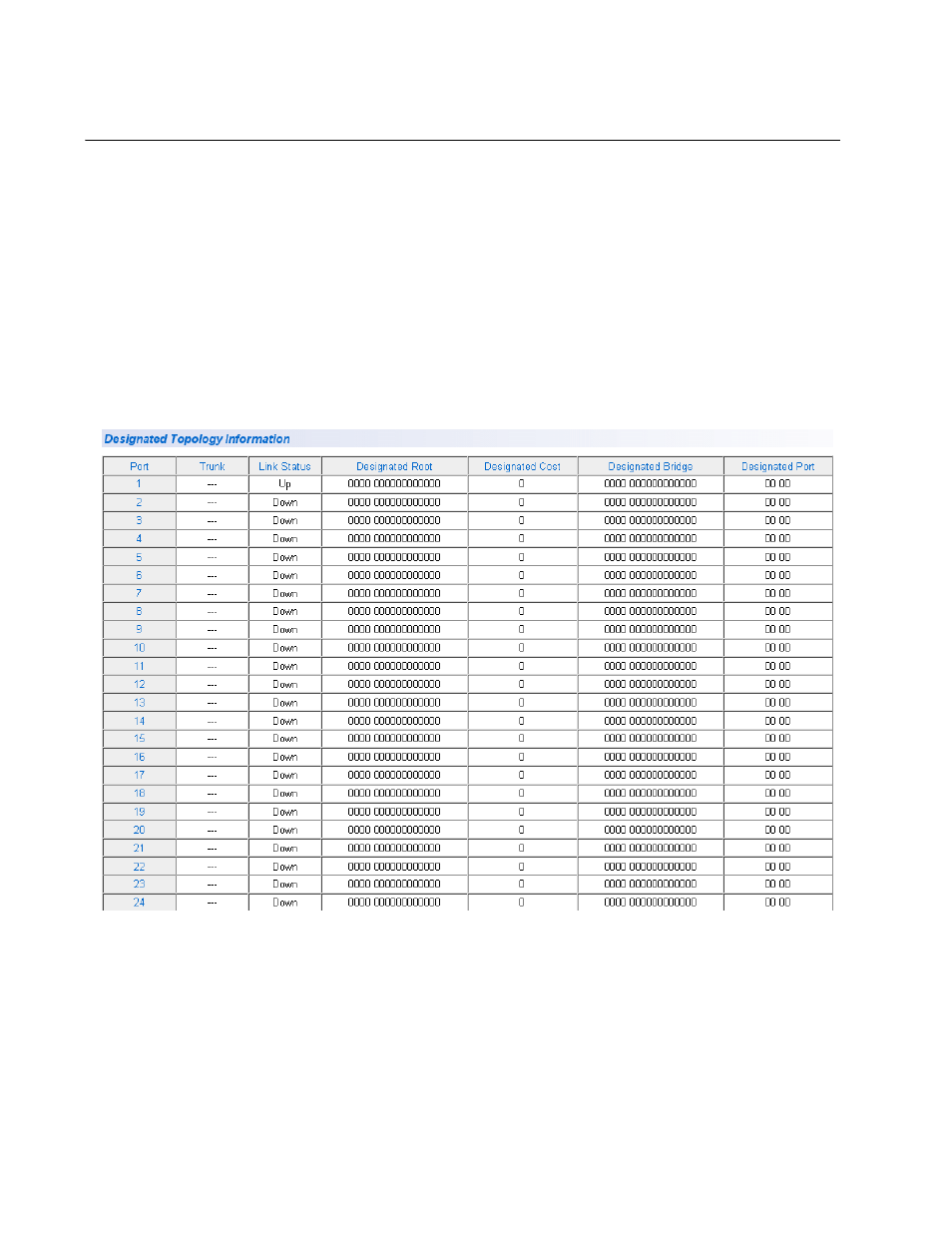

Figure 52. Designated Topology Information Page
