AT-S105 Management Software Web Browser User’s Guide
19
The AT-S105 Management software displays the front of the switch.
Ports that have a link to an end node are green. Ports without a link are
grey. Examples of both the AT-FS750/24POE and AT-FS750/48 front

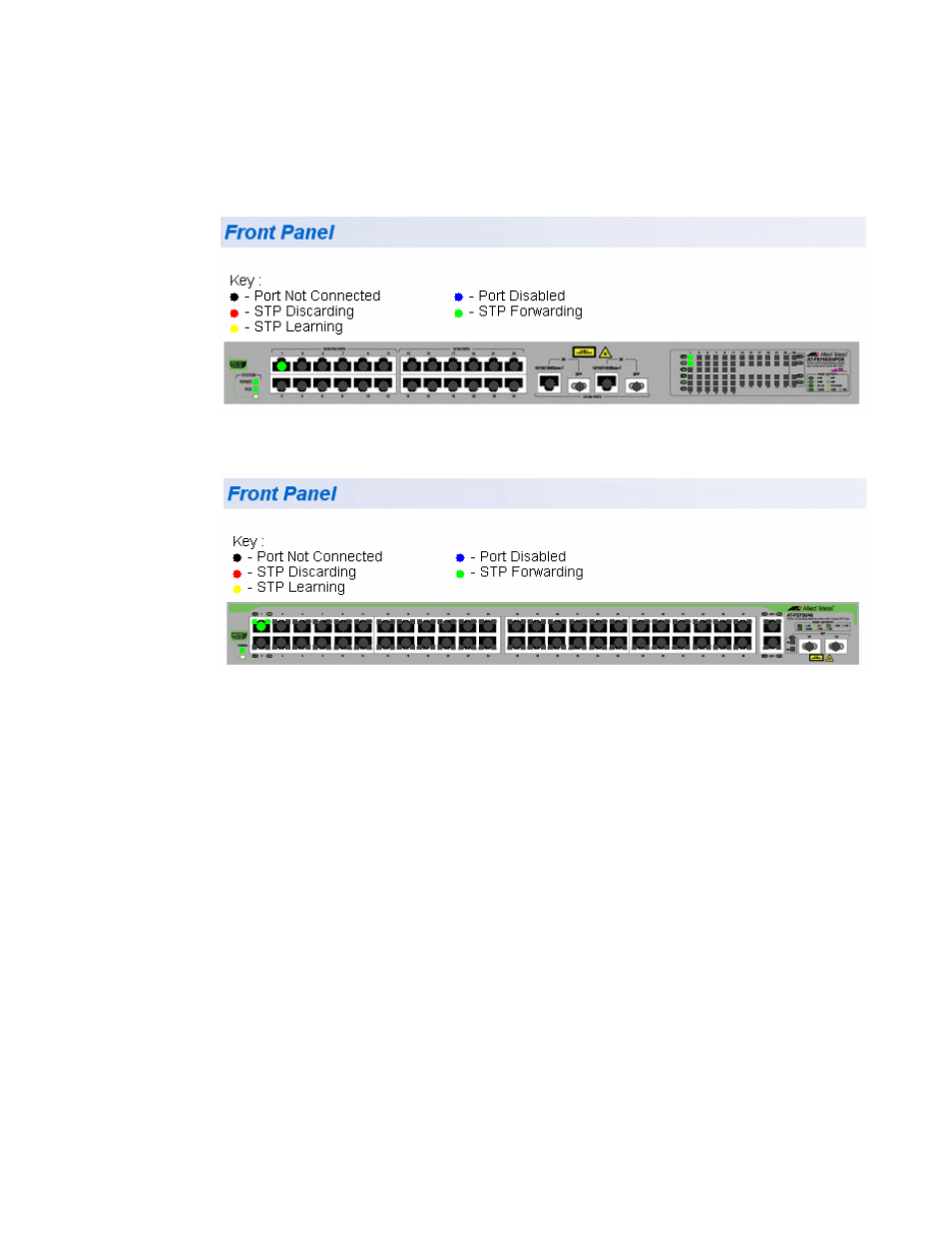

panel pages are shown in Figure 4.
Figure 4. AT-FS750/24POE Front Panel Page
Figure 5. AT-FS750/48 Front Panel Page
A web browser management session remains active even if you link to
other sites. You can return to the management web pages anytime as long
as you do not quit the browser.
