AT-S105 Management Software Web Browser User’s Guide
161
The RSTP Advanced Port Configuration Page is displayed. A partial
view is shown in Figure 51.

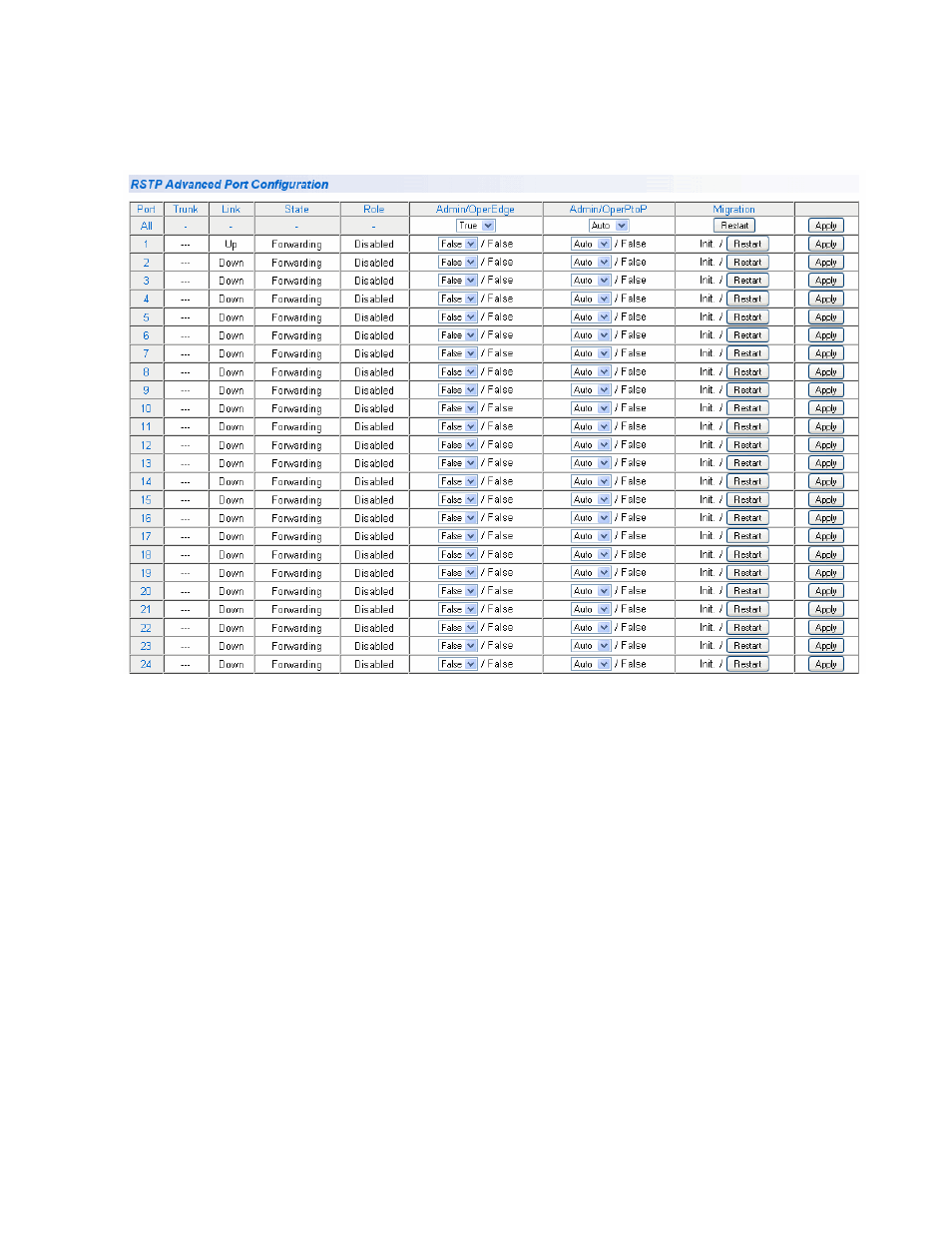

Figure 51. RSTP Advanced Port Configuration Page
This page displays the following information about the ports:
Port
Indicates ports 1 through 26 on the AT-FS750/24POE switch and ports
1 through 50 on the AT-FS750/48 switch. Use the All row to apply the
same settings to the STP Status, Priority, and Path Cost fields to all
the ports on your switch.
Trunk
Indicates the trunk assignment of a port.
Link
Indicates that the port’s link is active (Up) or inactive (Down).
