Chapter 7: LACP Port Trunks
88
Here is how the example looks in a table format on the AT-FS750/48
switch.
Table 2. Multiple Aggregators
If the aggregate trunks go to different devices, you can create one
aggregator and the AT-FS750/24POE or AT-FS750/48 switch form the
trunk or trunks automatically. This is illustrated in Figure 28 where the
ports of two aggregate trunks on the AT-FS750/24POE and AT-FS750/48
switches are members of the same aggregator. It is the switch that
determines that there are two separate aggregate trunks.

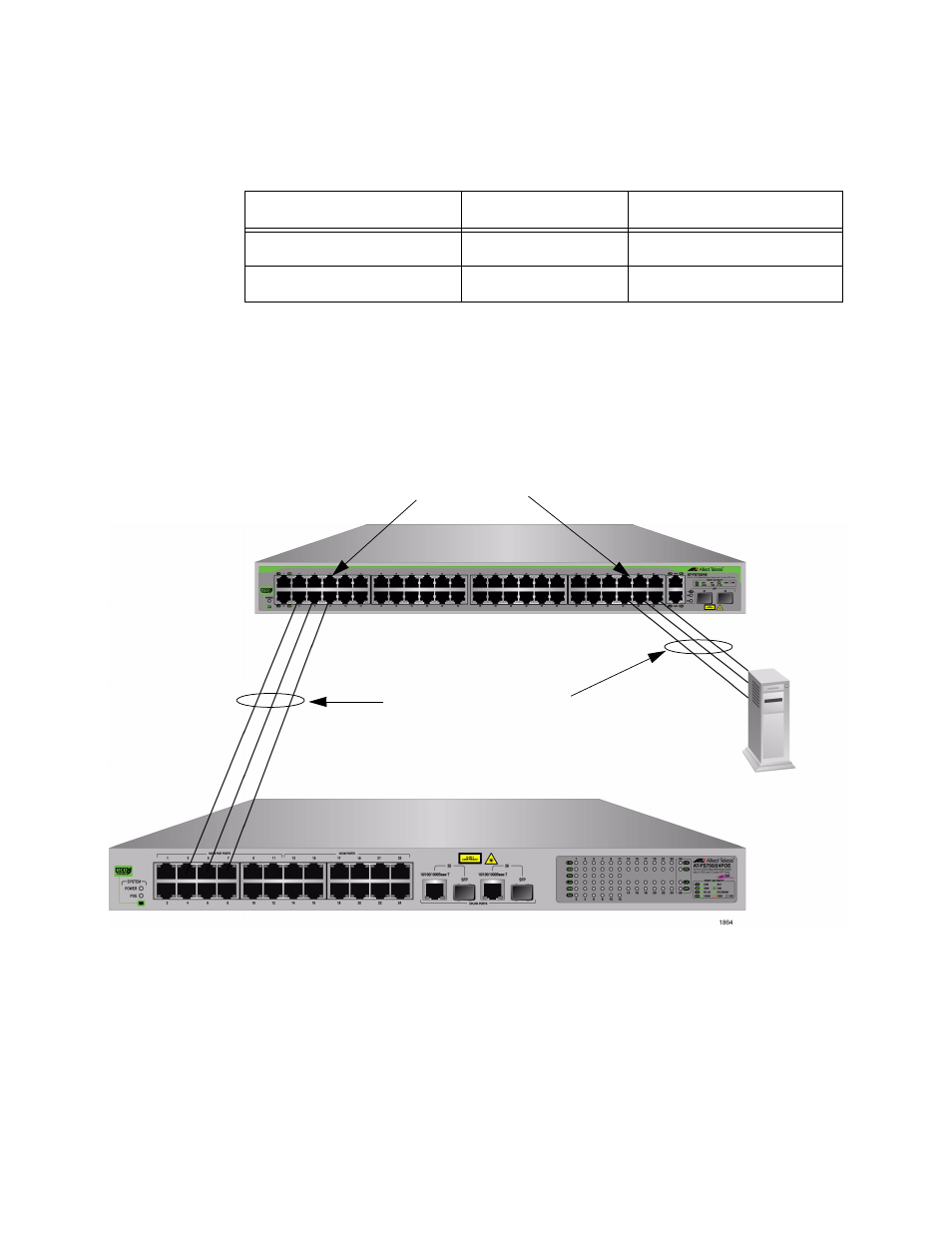

Figure 28. Example of a Single Aggregator with Multiple Trunks
Aggregator Description Aggregator Ports Aggregate Trunk Ports
Aggregator 1 4, 6, 8 4, 6, 8
Aggregator 2 20, 22, 24 20, 22, 24
AT-FS750/48
Switch
Aggregate Trunks
in Common Aggregators
Ports 4, 6, 8 and 20, 22, 24
in Aggregator 4
802.3ad-compliant
Server
802.3ad-compliant
Ethernet Switch
AT-FS750/24POE
Switch
