Displaying and Configuring Ports Using the Port Configuration Page
This procedure explains how to configure the ports on the switch using the
Port Configuration Page. This page allows you to view and configure the
parameter settings of all the switch ports at one time.
To configure the ports, do the following procedure:
1. From the main menu on the left side of the page, select Physical
Interface.
The Physical Interface Page is displayed. See Figure 24. Although
only 8 ports are shown here, the full page lists all the ports on the
switch and their current settings.

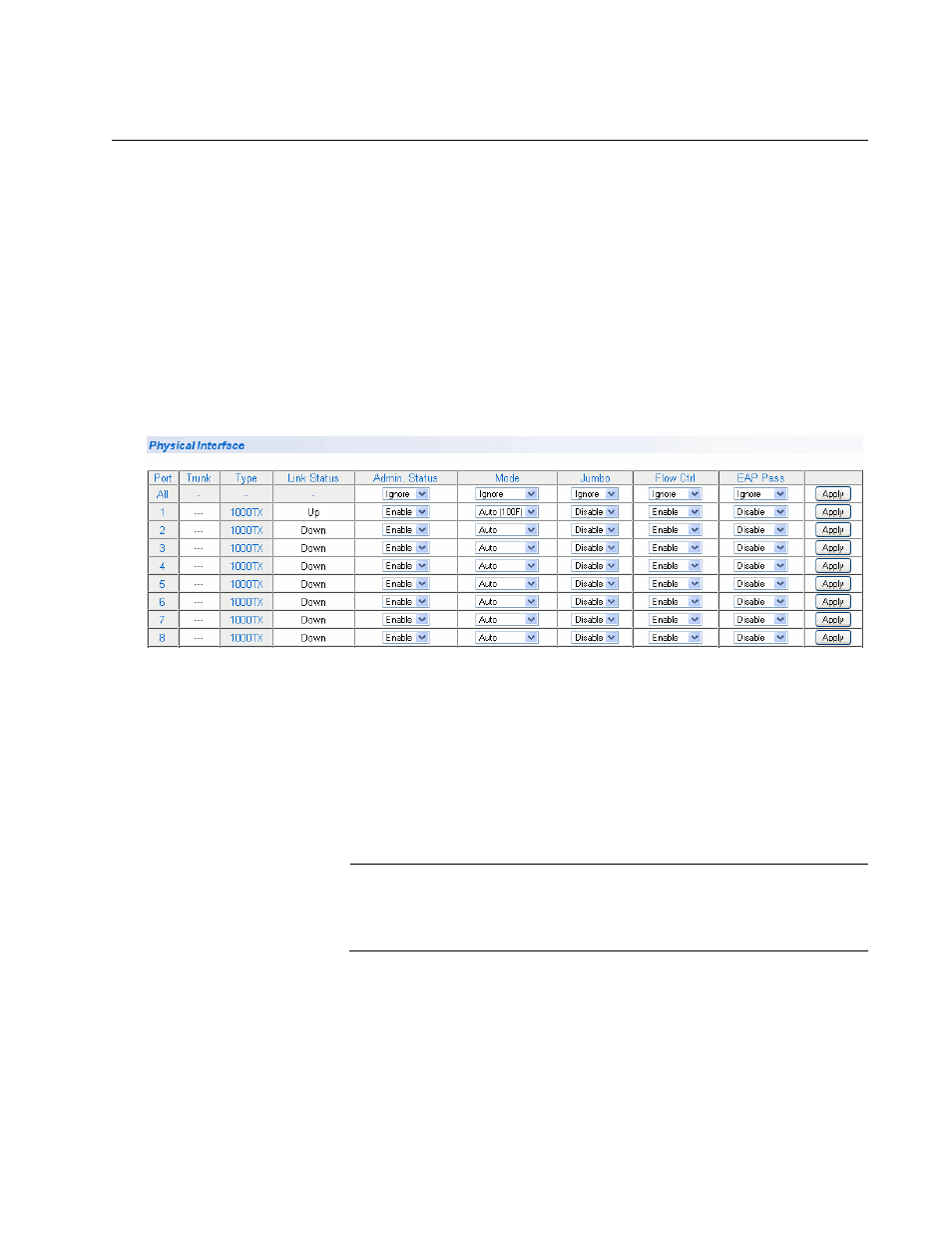

Figure 24. Physical Interface Page
2. Adjust the port settings as needed. Not all parameters are adjustable.
The parameters that can be configured are defined here:
Port
Specifies the port number. The All value indicates ports 1 through 26
on the AT-FS750/24POE switch and ports 1 through 50 on the AT-
FS750/48 switch. You cannot change this parameter.
Note
You can use the All value to set the Admin. Status, Mode, Jumbo,
Flow Ctrl, and EAP Pass fields to the same values on all 26 or 50
ports, depending on your switch model.
