Allied Telesis AT-S105 - Manual (Page 189)

AT-S105 Management Software Web Browser User’s Guide
189
Configuring a Destination MAC Filter
To set MAC address in the Destination MAC Filter, do the following
procedure:
1. From the main menu on the left side of the page, select the Security
folder.
The Security folder expands.
2. From the Security folder, select Destination MAC Filter.
The Destination MAC Filter Page is displayed. See Figure 59.

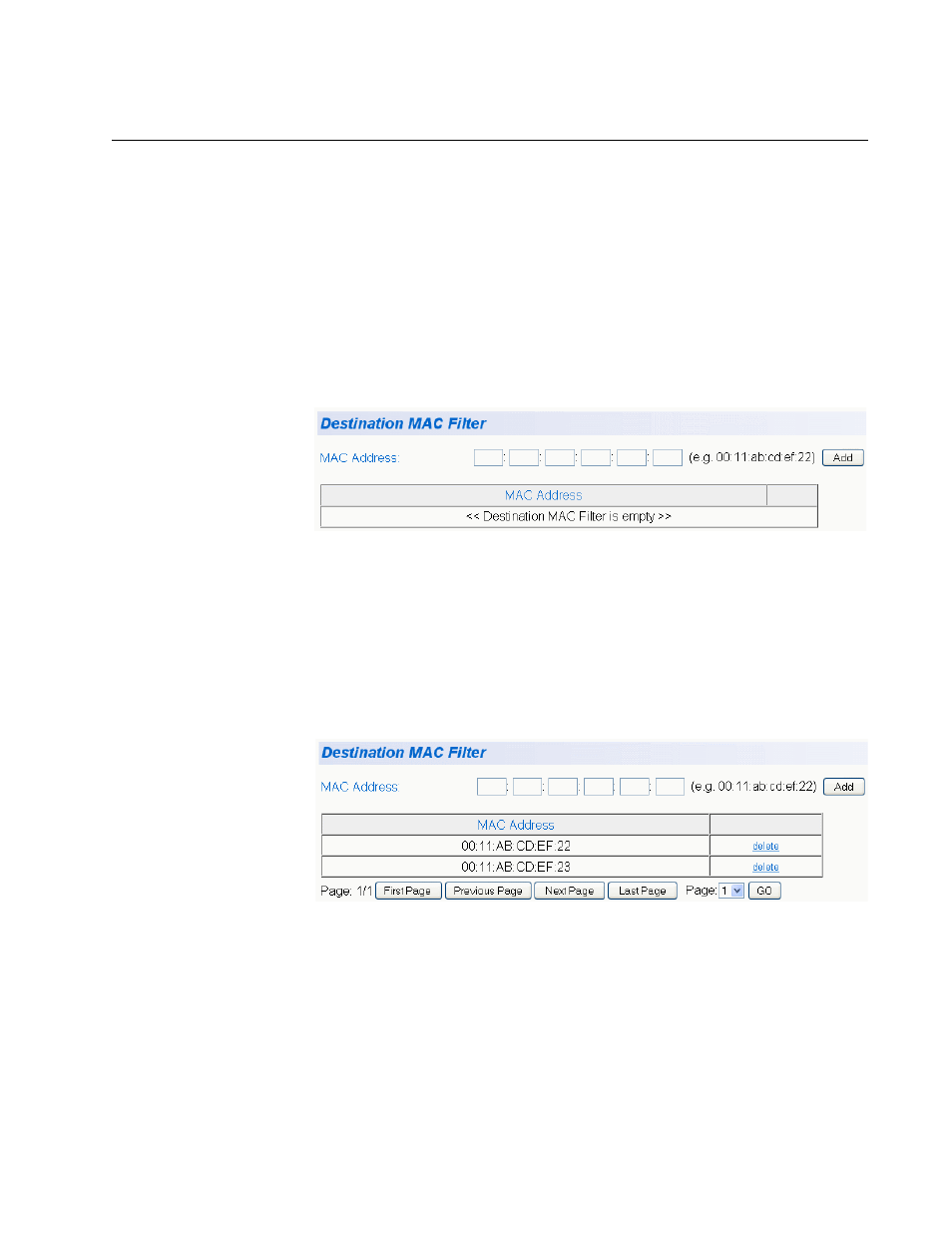

Figure 59. Destination MAC Filter Page
3. To enter the MAC address that you want filtered, enter the MAC
address into the MAC Address field.
4. Click Add.to save your entry.
5. After you have configured a destination MAC address, the Destination
MAC Filter Page is updated with the MAC address. See Figure 60.
Figure 60. Updated Destination MAC Filter Page
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
