Allied Telesis AT-S105 - Manual (Page 128)

Chapter 10: Bandwidth Control
128
Setting Egress Rate Limiting
This procedure explains how to set Bandwidth levels and Status for
Egress Rate Limiting on each port of the AT-FS750/24POE and AT-
FS750/48 switches.
To change the default settings, do the following procedure:
1. From the main menu on the left side of the page, select the Bridge
folder.
The Bridge folder expands.
2. From the Bridge folder, select Bandwidth Control.
The Bandwidth Control folder expands.
3. From the Bandwidth Control folder, select Egress Rate Filtering.
The Egress Rate Limiting page is displayed. A partial view is shown in
Figure 41.

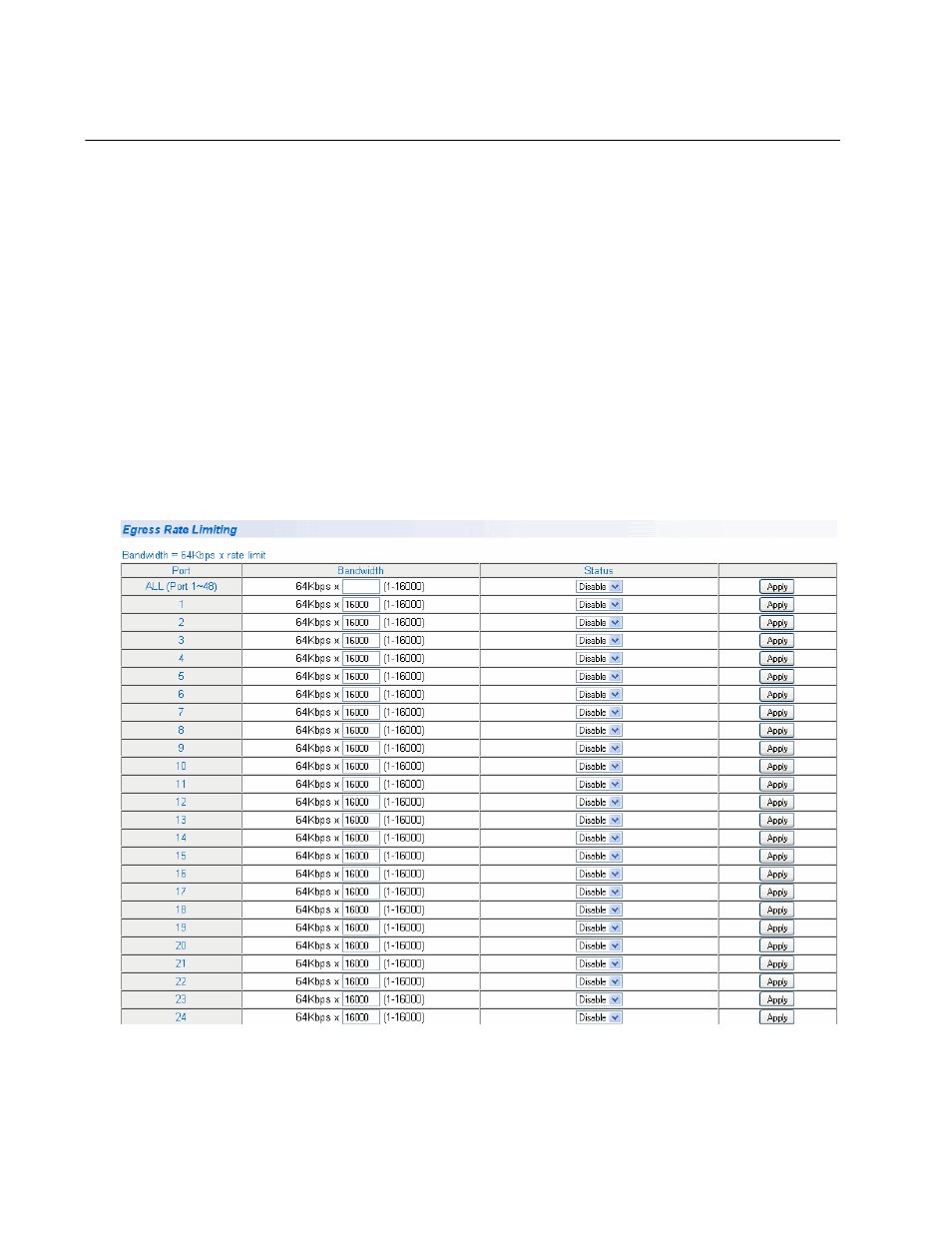

Figure 41. Egress Rate Limiting Page
