AT-GS950/24 Web Interface User Guide
121
Port Mirroring Configuration
To configure Port Mirroring, perform the following procedure:
1. Select the Bridge folder.
The Bridge folder expands.
2. From the Bridge folder, select Mirroring.
The Mirroring Page is displayed. See Figure 41.

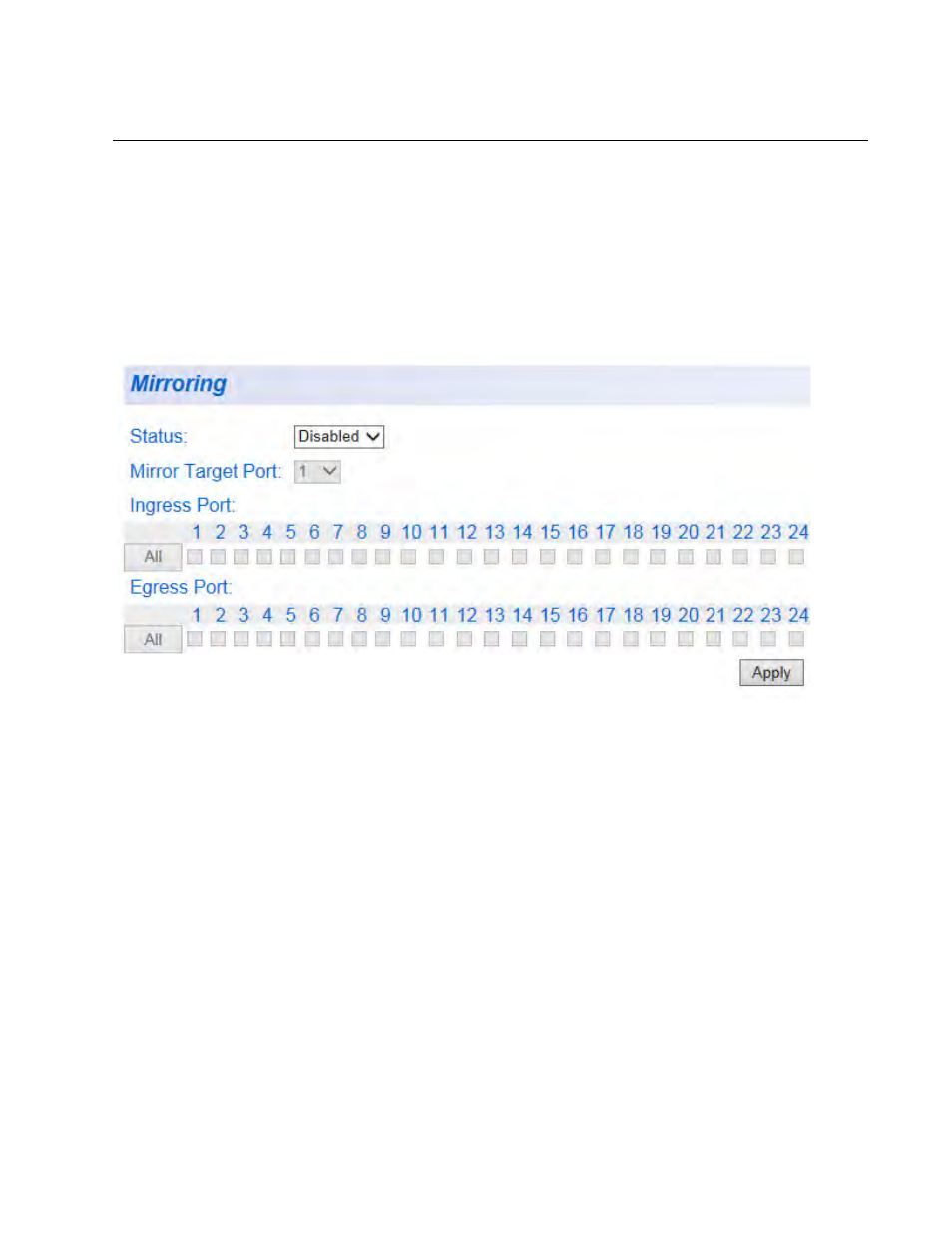

Figure 41. AT-GS950/24 Mirroring Page
3. Click the pull-down menu next to the Status field and select one of the
following choices:
Enabled - This parameter activates the Port Mirroring feature, and
the rest of the configuration parameters become active on the
page.
Disabled - This parameter de-activates the Port Mirroring feature,
and the rest of the configuration parameters become inactive on
the page.
4. Click Mirroring Port and from the pull-down menu, select the port.
