PROGRAM USER MENU

There are four external User

Inputs and two front panel

Function keys, which have a

variety

programmable

capabilities. An external User

Input is active when tied to

common. A front panel function

key is active when pressed. The

options for each User input are the

same, except as noted below:

1. The two Function keys

(F1/RUN & F2/STP) have some

additional functions: RUN (F1

only), R-STOP, F-STOP and JOG.

2. The two Function keys DO

NOT have the Program Disable

(PGM.DIS.) option.

The operator can select only

one option for each User Input.

The operator may enter a second

sub-menu for some options before

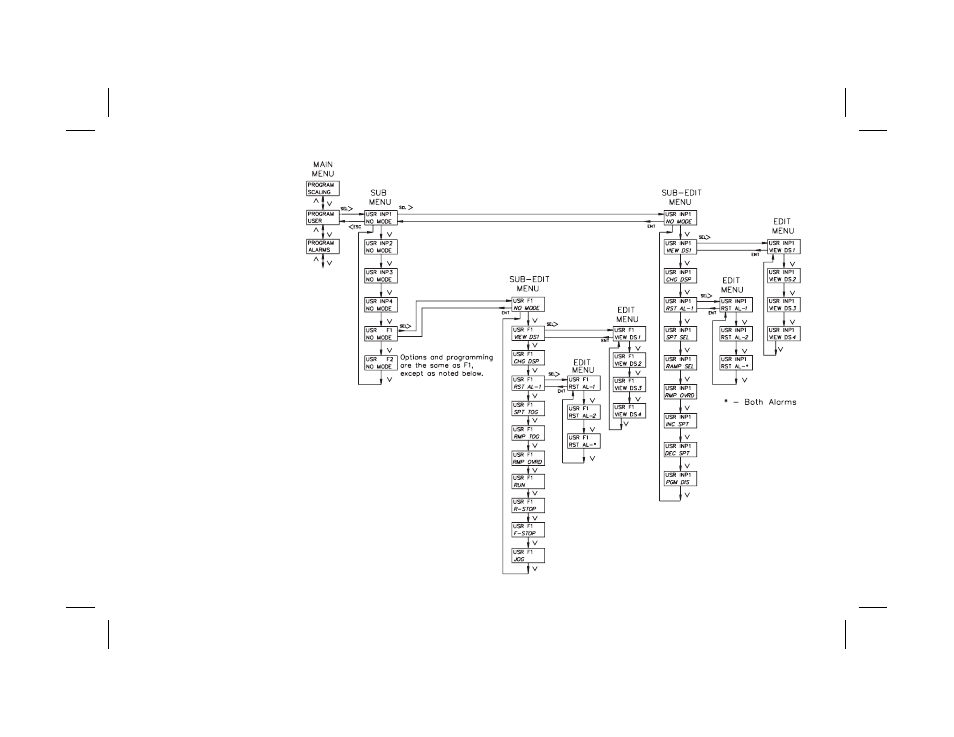

entering the edit menu. The

following flowchart shows only

the User portion:

-19-

Note: Only F1 may be programmed for

RUN. Programming F1 for run
automatically programs F2 for R-STOP.
F2 may then be programmed to F-STOP
or left as R-STOP.
