APPENDIX “A” - INSTALLATION & INPUT CONFIGURATION SWITCH SET-UP
Before installing the Gemini into the panel, the user should first become
familiar with the unit. It may also be desirable to program the unit and appropriate
DIP switches for the application at hand (Refer to the “Programming and
Applications” sections). Once the unit is programmed, the settings will be saved
in memory. The Program Disable “PGM. DIS.” terminal should be connected to
“COMM.” to prevent accidental or unauthorized programming changes.
Installation Environment
The unit should be installed in a location that does not exceed the maximum
operating temperature and provides good air circulation. Placing the unit near
devices that generate excessive heat should be avoided.
The bezel should be cleaned only with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the
aging process of the bezel.
Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the
keypad of the unit.
-37-
PANEL MOUNTING {Note: See Appendix “B” for dimensions}
The Gemini is intended to be mounted into an enclosed panel with a gasket
to provide a water-tight seal. The unit meets NEMA 4/IP65 requirements for
indoor use when properly installed. Two mounting clips and screws are
provided for easy installation. Consideration should be given to the thickness
of the panel. A panel which is too thin may distort and not provide a
water-tight seal. (Recommended minimum panel thickness is 1/8".)
After the panel cut-out has been completed and deburred, remove the
backing from the adhesive side of the gasket, and carefully apply the gasket
to the panel. DO NOT APPLY THE ADHESIVE SIDE OF THE
GASKET TO THE COUNTER BEZEL. Insert the unit into the panel.

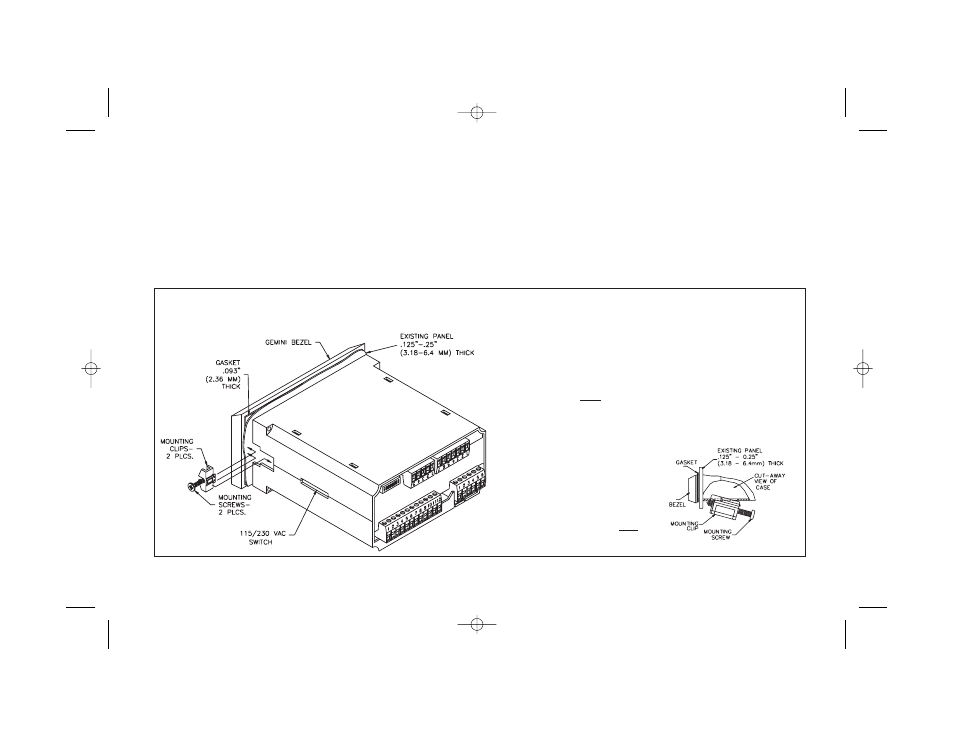

Install the screws into the narrow ends of the mounting clips as shown in the
drawing to the left. Thread the screws into the clips until the pointed end
just protrudes through the other side.
Install each of the two mounting clips
by inserting the wide lip of the clips into
the wide end of the holes located on either
side of the case. Tighten the screws
evenly, applying uniform compression,
thus providing a water-tight seal.
CAUTION: Only minimum pressure is
required to seal panel. Do NOT over
tighten mounting screws.
