8-8

Viewing Your Maps
Locating a Node

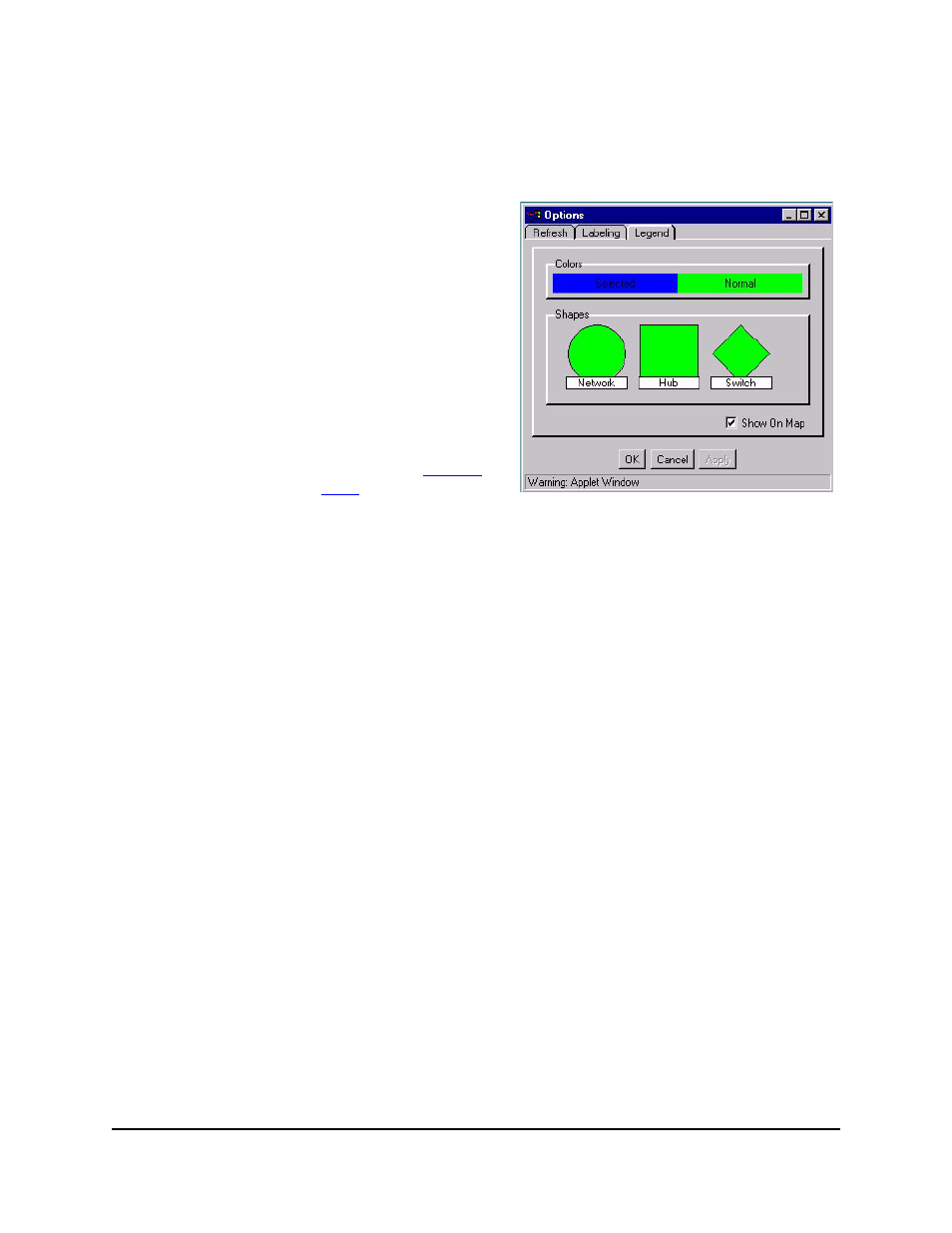

Options—Legend

Select this option to
display the legend for
the map. Check the box
Show on Map to have the
legend display on the
map. Click on

Apply to

save your choices.

Changing Map
Views

Click on the

Views

button to select the
style of map layout that
you prefer. See

for an explanation

of the four styles.

Locating a Node

To locate a particular end node, click the

Locate button at the bottom of the

page displaying a map. In the Locate browser window, select the network that
the node is in, then select the node. Click on the

Locate button to locate the

node. A dialog box displays stating that the node has been found and the
appropriate map is opened (if it not open already).

Select

Pan in the dialog box to set the panner window so that the located item

is enlarged and centered in the map. If

Show labels is turned on, the label under

the located device is displayed in reverse video.
