Networking Devices

Device Topology

6-5

•

Threshold—the value of the event at which the trap or alarm is
triggered

•

Tolerance—the device does not send another event to the manager
until the value goes below the tolerance value and the threshold value
is reached again. The default is 80% of the threshold value.

•

Time Interval—the time elapsed while HP TopTools examines speci-
fied traffic for threshold and tolerance violations. If the threshold is
reached with the time interval specified, an event is triggered.

Select the

Trap Receivers tab and set the management stations that should

receive traps.

Select the

Authorized Managers tab and set the management stations that

can send and receive SNMP requests for the device.

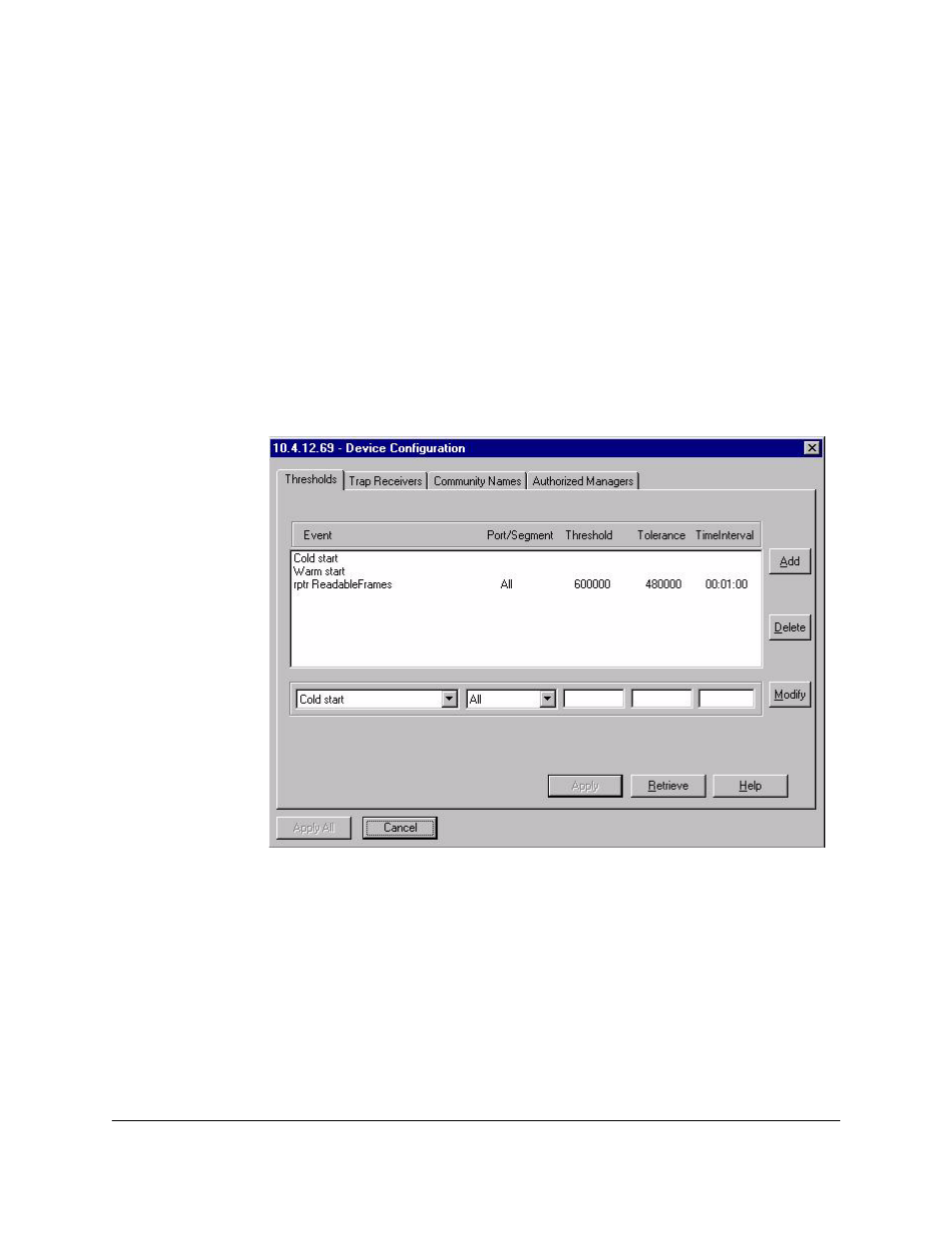

Figure 6-3. Thresholds Dialog Box

Device Topology

The Topology view displays a hierarchical representation of your network
device connections. If HP TopTools is not able to associate a device with a
segment, the device is listed as unmapped.
