Options for resolving zoning

The Resolving Zoning options enable you to manage the active, configured, and merged zone sets in the

zoning database. To access the Resolving Zoning dialog box options, open the faceplate display, and then

select Zoning > Resolve Zoning.

Capture Active Zoning—The Capture Active Zoning option copies the active zone set to the configured

zone set.

Restore Configured Zoning—The Restore Configured Zoning option reverts back to the previously saved

configured zone set.

Capture Merged Zoning—The Capture Merged Zoning option saves the merged zone set into the

configured zone set.

View Merged/Configured Differences—The View Merged/Configured Differences option opens a

dialog box to display the Merged and Configured zone sets in split panes. The items in the Merged

pane but not in the Configured pane are shown in red and are not persistent after a switch reset. The

items in the Configured pane but not in the Merged pane are shown in green and are persistent after a

switch reset. The bottom pane shows a summary description of the differences between the Merged

and Configured zone sets.

Configuring the zoning database

Use the Zoning Config dialog box (

Figure 19

) to change the Merge Auto Save, Default Zone, and Discard

Inactive configuration parameters. To open the Zoning Config dialog box, open the Zoning menu and

select Edit Zoning Config. After making the changes, click OK to put the new values into effect.

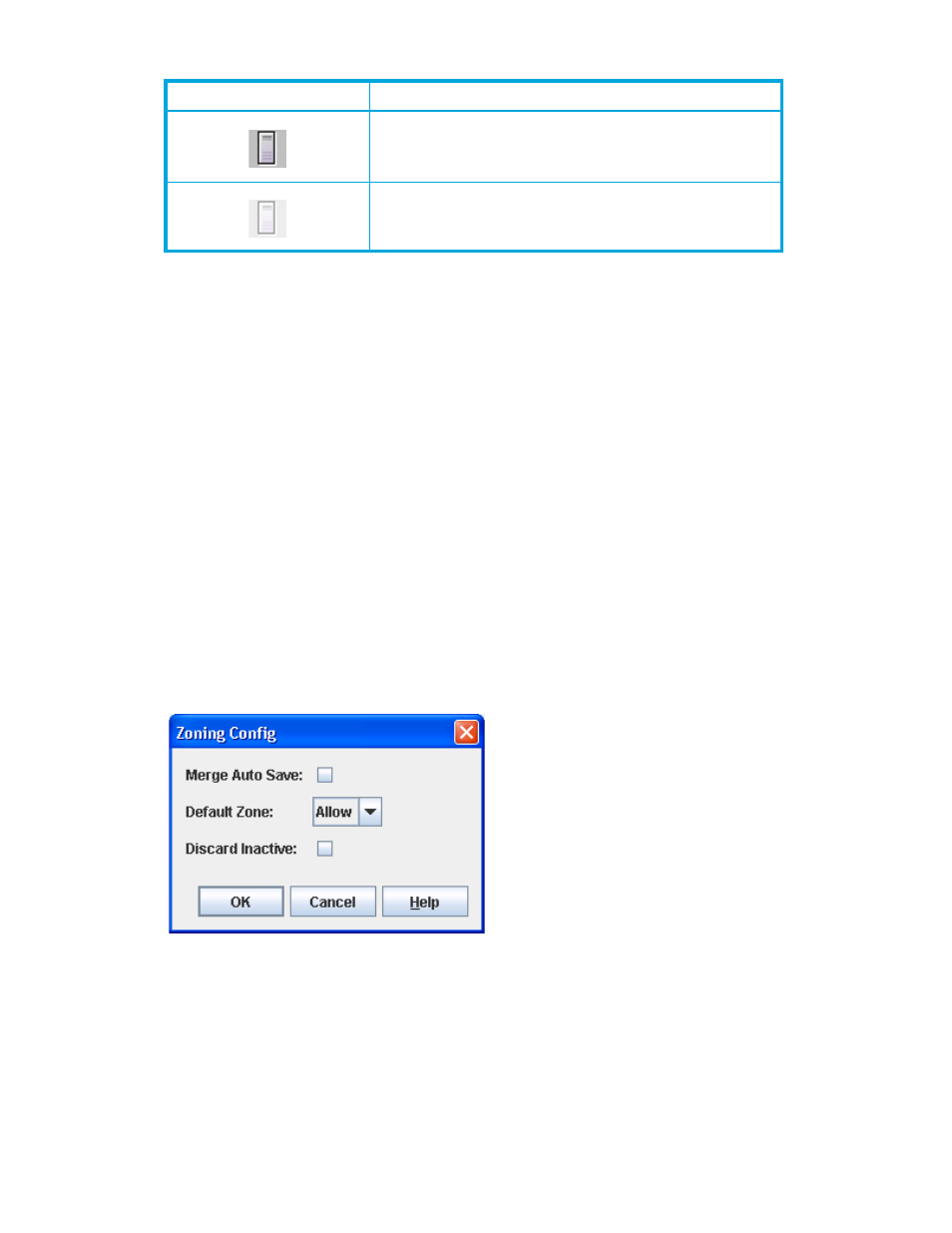

Figure 19

Zoning Config dialog box

Merge Auto Save

The Merge Auto Save parameter determines whether changes to the active zone set that a switch receives

from other switches in the fabric will be saved to the zoning database on that switch. Changes are saved

when an updated zone set is activated. Zoning changes are always saved to temporary memory.

If Merge Auto Save is enabled, the switch firmware saves changes to the active zone set in temporary

memory and to the zoning database.

If Merge Auto Save is disabled, changes to the active zone set are stored only in temporary memory,

which is cleared when the switch is reset.

N_Port device icon—When logged in to fabric

N_Port device icon—When not logged in to fabric
