IMPORTANT:

Since C-series switches do not support the Unzoned Name Server, C-series fabrics must be

“pre-zoned” before you can set up TR mappings to a remote C-series fabric using the TR Mapping

Manager dialog box. The C-series fabric zone set must be changed to add zones so that the WWNs of the

remote devices to be mapped and the WWNs of the HP SN6000 Fibre Channel Switch TR ports are

zoned together. For more information, see the C-series documentation for specific information to configure

zoning. Retain these zones in the zone set after completion of the TR mapping as a best practice, until you

no longer need to map the device to the local fabric.

TR Mapping Manager dialog

The TR Mapping Manager dialog (

Figure 7

) displays the currently mapped inter-fabric routes. You can

create new inter-fabric routes, view detail information on existing inter-fabric routes, and remove existing

inter-fabric routes. To open the TR Mapping Manager dialog, select Fabric > TR Mapping Manager.

NOTE:

The Merge Auto Save option in the Config Zoning dialog must be selected before you can open

the TR Mapping Manager dialog. See ”

Merge Auto Save

” (page 39) for more information.

To create a new TR mapping, click Add or select Edit > Add to open the Add TR Mapping dialog. See

Add TR Mapping dialog

” (page 23) for more information.

Select a TR mapping member in the TR Mapping List window to:

Delete that TR mapping member

View detailed information for that TR mapping member in the Selected TR Mapping area

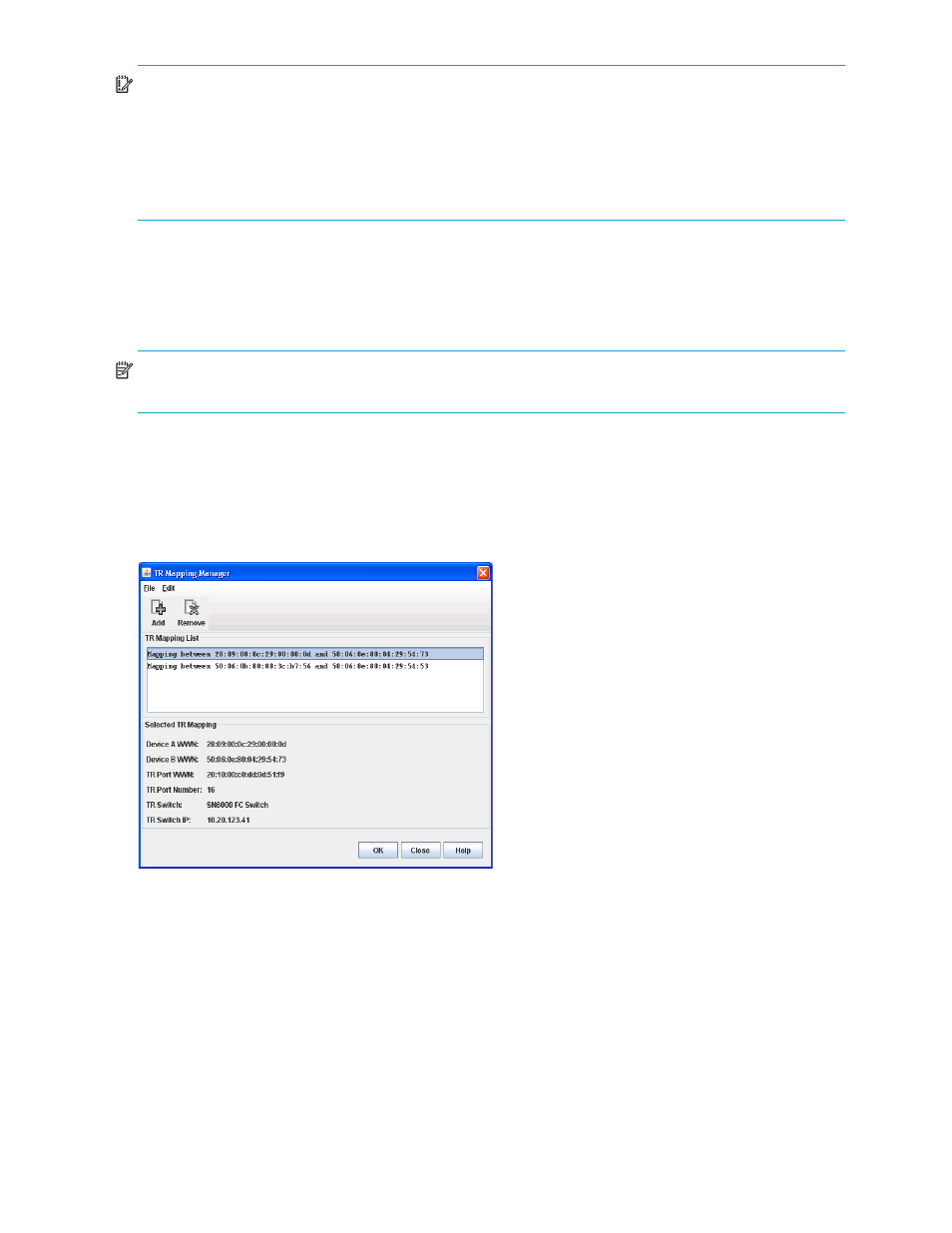

Figure 7

TR Mapping Manager dialog

After you click OK in the TR Mapping Manager dialog, the IFZs are created and saved to the switch. If

there is an active zone set with TR mappings, the old IFZs are deleted and replaced with the new IFZs, and

then the active zone set is re-activated. If there is no active zone set, a zone set named TR_MAPPING_SET”

(default name) is created, the new IFZs are added to the zone set, and then the zone set is activated. If

there are no TR mappings, the old IFZs are deleted from the active zone set, and then the active zone set is

re-activated. If there are no zones and no IFZs in the active set, the active zone set is deactivated.
