HP SN6000 Fibre Channel Switch QuickTools Switch Management User Guide

11

QuickTools user interface

The QuickTools web applet uses faceplate and backplate displays to manage the switches in a fabric. The

interface (

Figure 3

) consists of a menu bar, fabric tree, graphic window, data windows (some with

buttons), and data window tabs. The switch faceplate is displayed in the graphic window and shows the

front of a single switch and its ports. While there is no topology display, the fabric name is displayed for

reference in the fabric tree above the switch names. Click a switch name or icon to display a different

switch faceplate in the graphic window. Information displayed in the data windows corresponds to the

data window tab selected.

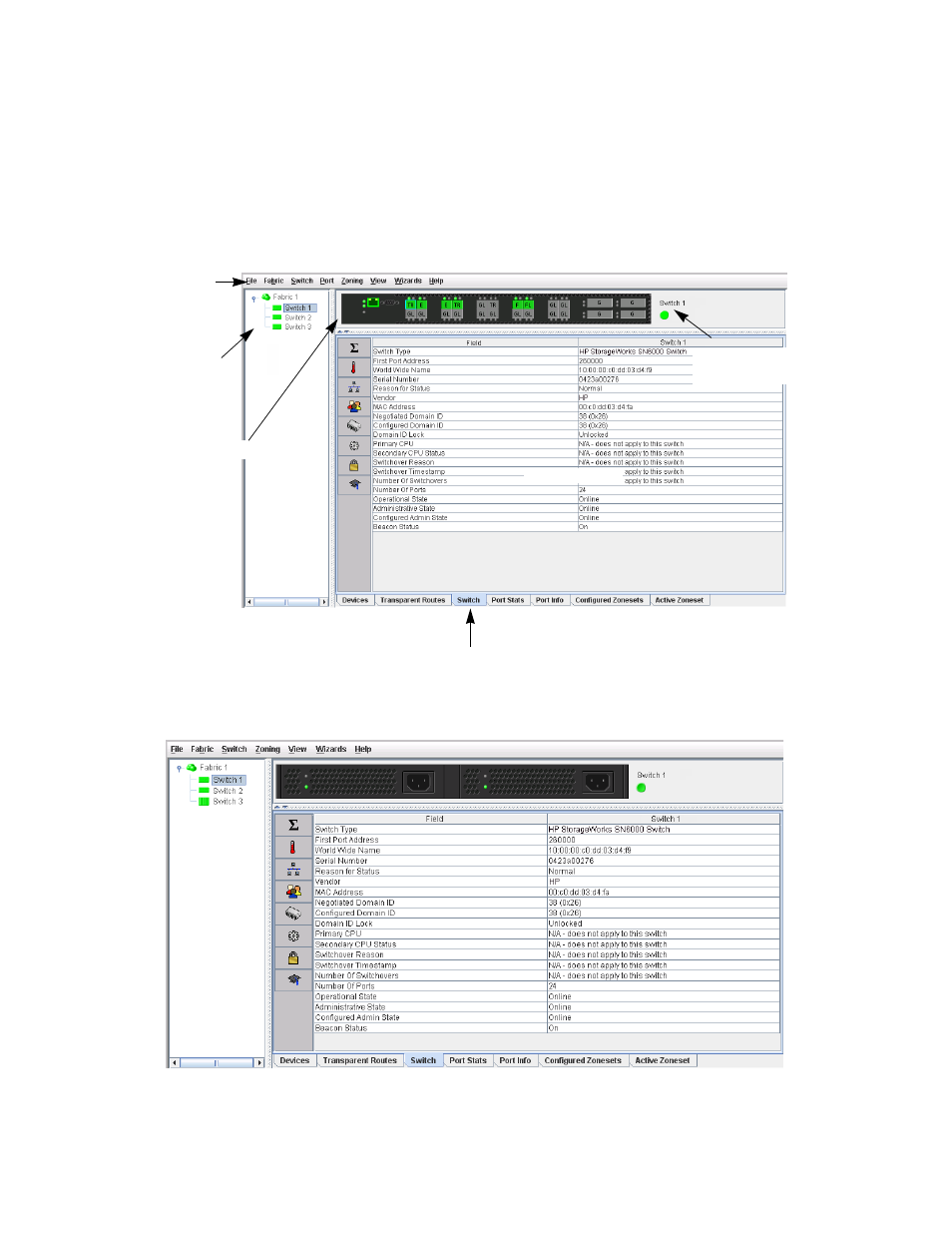

The faceplate display (

Figure 3

) shows the front of a single SN6000 Fibre Channel Switch.

Figure 3

QuickTools faceplate display

The backplate display (

Figure 4

) shows the back of a dual-power supply SN6000 Fibre Channel Switch.

Figure 4

QuickTools backplate display

Data window tabs

Graphic window

Fabric

tree

Menu

bar

Data window

Fabric/Switch name

and status
