Alerts panel

The Alerts panel shows all reasons for status, including faults. The Alerts panel entries are the highlighted

rows between the faceplate image and the data window entries.

NOTE:

The up/down arrows on the divider bar between the Alerts panel entries and data windows

enable you to move the divider bar up or down incrementally. With the faceplate image in the graphic

window and the data window displayed, click the up arrow (on left) to move the divider up to the top of

the window, completely hiding the faceplate image. Click the down arrow (on right) to move the divider

back to the middle; click the down arrow again to completely hide the data window. You can also

click-and-drag the divider bar to manually move it up or down.

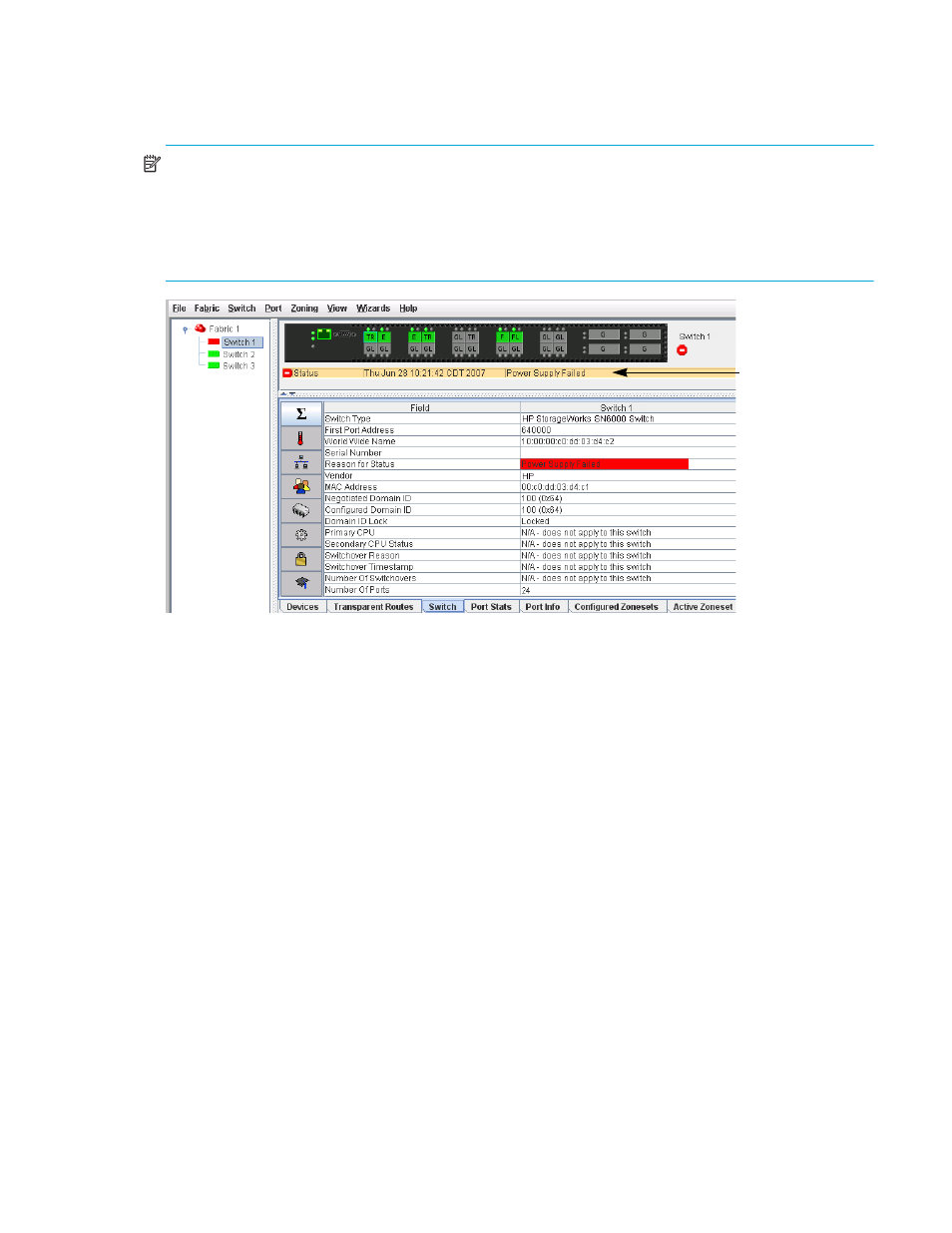

Figure 5

Alerts panel
