HP SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 101

Port transceiver media status

To display the transceiver media status, open the View menu and select View Port Media.

Table 25

lists the

port media states and their meanings.

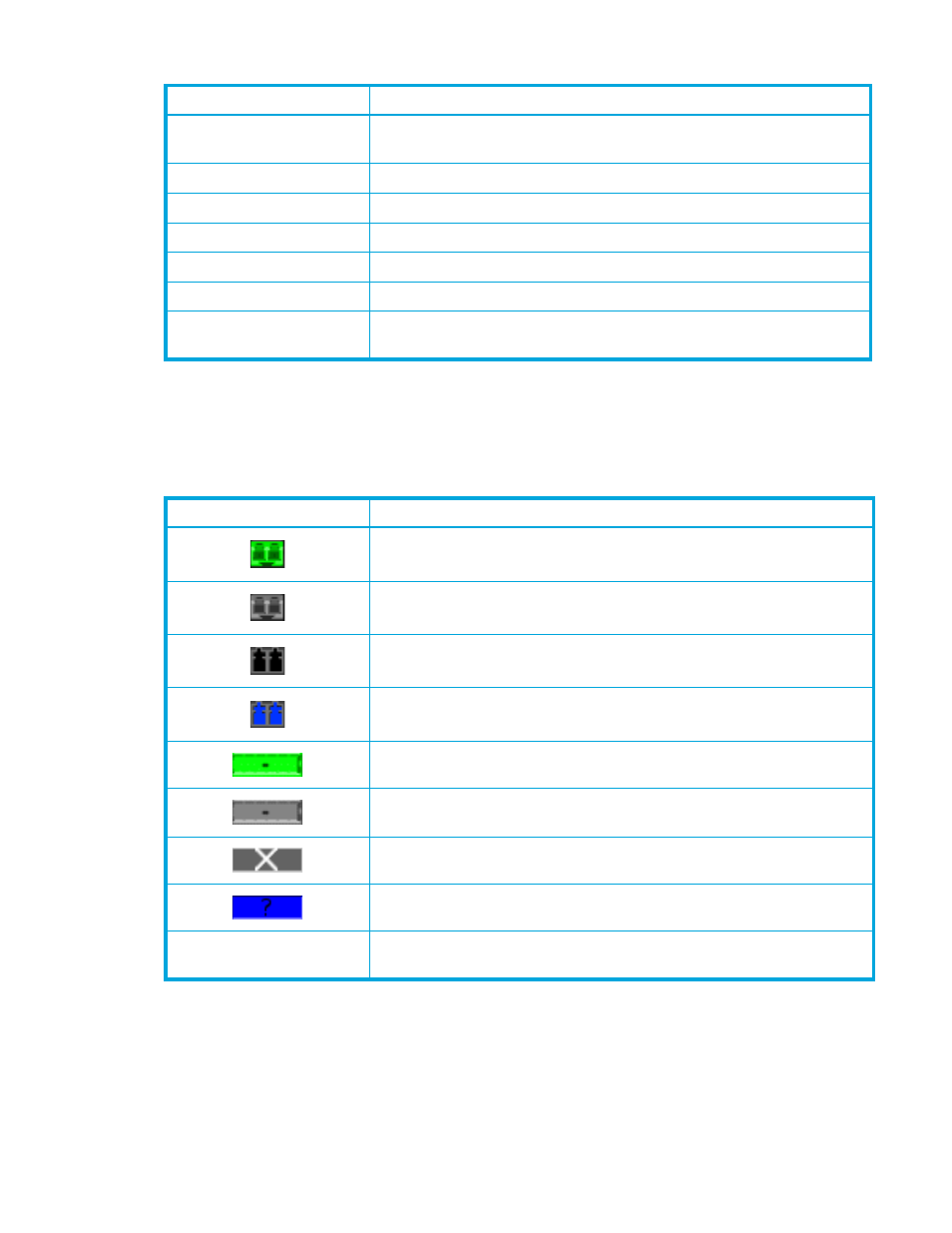

Table 24

Port speeds

State

Description

Auto-Detect

Matches the transmission speed of the connected device. This is the

default for SFPs.

1 Gb/s

Fixed 1 Gb/s transmission speed

2 Gb/s

Fixed 2 Gb/s transmission speed

4 Gb/s

Fixed 4 Gb/s transmission speed

8 Gb/s

Fixed 8 Gb/s transmission speed

10 Gb/s

Fixed 10 Gb/s transmission speed.

20 Gb/s

Fixed 20 Gb/s transmission speed. Requires the HP SN6000 Stackable

20Gb ISL Upgrade LTU feature license key.

Table 25

Port transceiver media view

Media icon

Description
Optical SFP, online (green/black), logged-in, active, and ready to send

data.

Optical SFP, offline (gray/black), not logged-in, active, can receive signal,

but cannot accept a device login

Optical SFP, unlicensed (dark gray/black)

Optical SFP, unknown, unlicensed (dark gray/blue)

XPAK online (green/black), logged-in, active, and ready to send data

XPAK offline (gray/black), not logged-in, active, can receive signal, but

cannot accept a device login
XPAK, unlicensed (dark gray/white)

XPAK, unknown (blue/black)

None

Empty port; no transceiver installed (gray) or unlicensed transceiver (dark

gray)
