3. Create a copy pair.

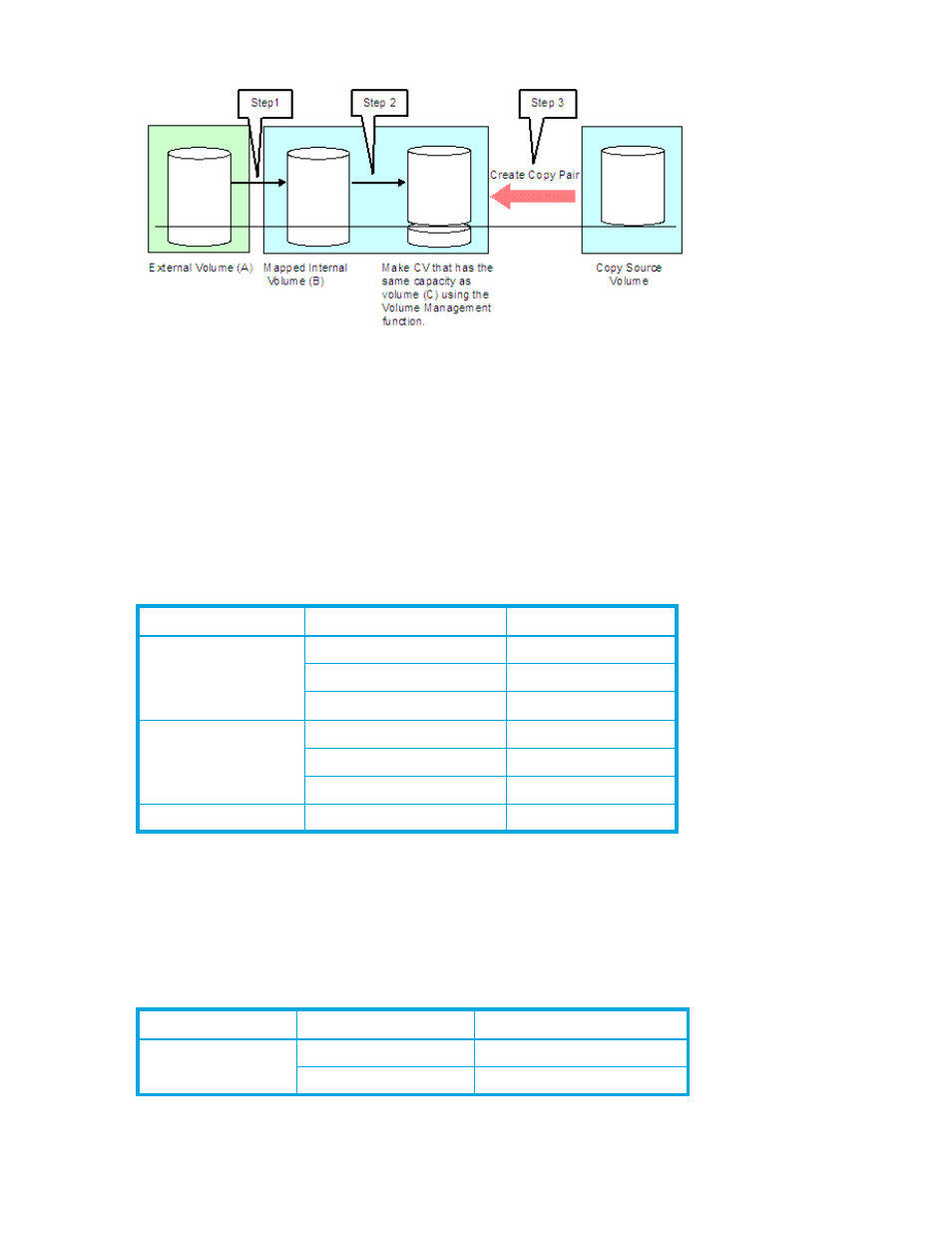

Figure 47 Copying data to external disk arrays (setting external volumes as S-VOLs)
Additional information about TagmaStore AMS, TagmaStore WMS, and
Thunder 9500V Series subsystems
Relationship between serial number and subsystem model
When the external disk array is a TagmaStore AMS, TagmaStore WMS, or Thunder 9500V Series
subsystem, you can identify the disk array model from the serial number displayed in the Serial column in
the Device List on the LU Operation pane.
Table 15 shows the relationship between the serial number displayed in the Serial column and the disk
array model.
Relationship between port’s WWN and controller
When the external disk array is a TagmaStore AMS, TagmaStore WMS, or Thunder 9500V Series
subsystem, you can identify the controller (controller 0 or controller 1) from the port’s WWN.
Table 16 shows the relationship between the port’s WWN and controller.
Table 15 Relationship between serial number and disk array model
Storage subsystem Displayed serial number 1
1. In serial numbers, X is an arbitrary number or character.
Model
9500V D600XXXX 9570V, 9520V
D60JXXXX 9530V
D60HXXXX 9580V, 9585V
AMS 77XXXXXX AMS 1000
75XXXXXX AMS 500
73XXXXXX AMS 200
WMS 71XXXXXX WMS 100
Table 16 Relationship between port’s WWN and controller
Model Controller Port WWN 1
AMS 200
WMS 100 Controller 0 XXXXXXXXXXXXXXX0
Controller 1 XXXXXXXXXXXXXXX1
