External Storage XP user guide 39
• Delete
Cancels settings selected in the Preset list.
Port Operation pane
Use this pane to check port settings and set port attributes. This section describes items displayed in the
pane. For instructions, see ” Setting port attributes on the local disk arrays ” on page 44.

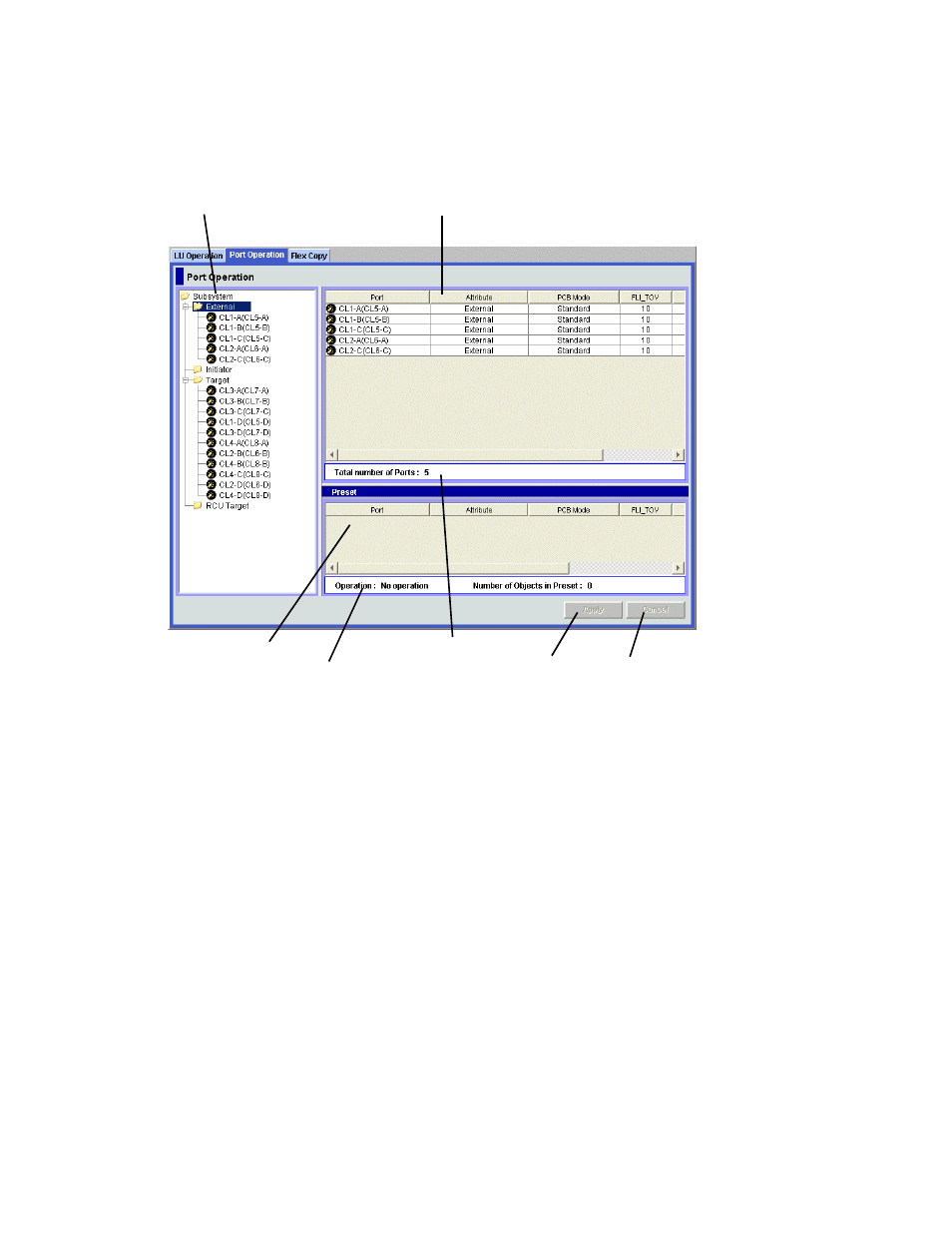

Figure 20 Port Operation pane
The Port Operation pane consists of the following items:
• Port Tree
When you select a port in the Port Tree (left pane), the corresponding port information is displayed in
the Port List (right pane). You can select Subsystem, a port attribute, or a port number. For detailed
information, see ” Port Tree ” on page 40.
• Port List
Displays detailed information about the port or ports selected in the Port Tree. For detailed information,
see ” Port List ” on page 40.
• Information Area
Displays the total number of ports currently detailed in the Port List (Total Number of Ports).
• Preset List
Displays the rows corresponding to the ports which are about to be acted upon. If you click Apply on
the Port Operation pane, of the actions designated in the Preset list are applied to the local disk array.
For detailed information, see ” Preset List (Port Operation pane) ” on page 41.
• Operation Information Area
Displays operation information about settings displayed in the Preset list.
• Apply button
Applies actions designated in the Preset list to the local disk array. When actions are applied without
error, they are removed from the Preset list. If errors occur, settings are not applied, error messages
appear, and error settings remain in the Preset list.
Port Tree Port List
Preset List
Operation Information Area
Information Area
Apply and Cancel buttons
