The rows corresponding to the ports that are about to be acted upon appear in the Preset list and the
corresponding row in the Port List appears in blue italics.

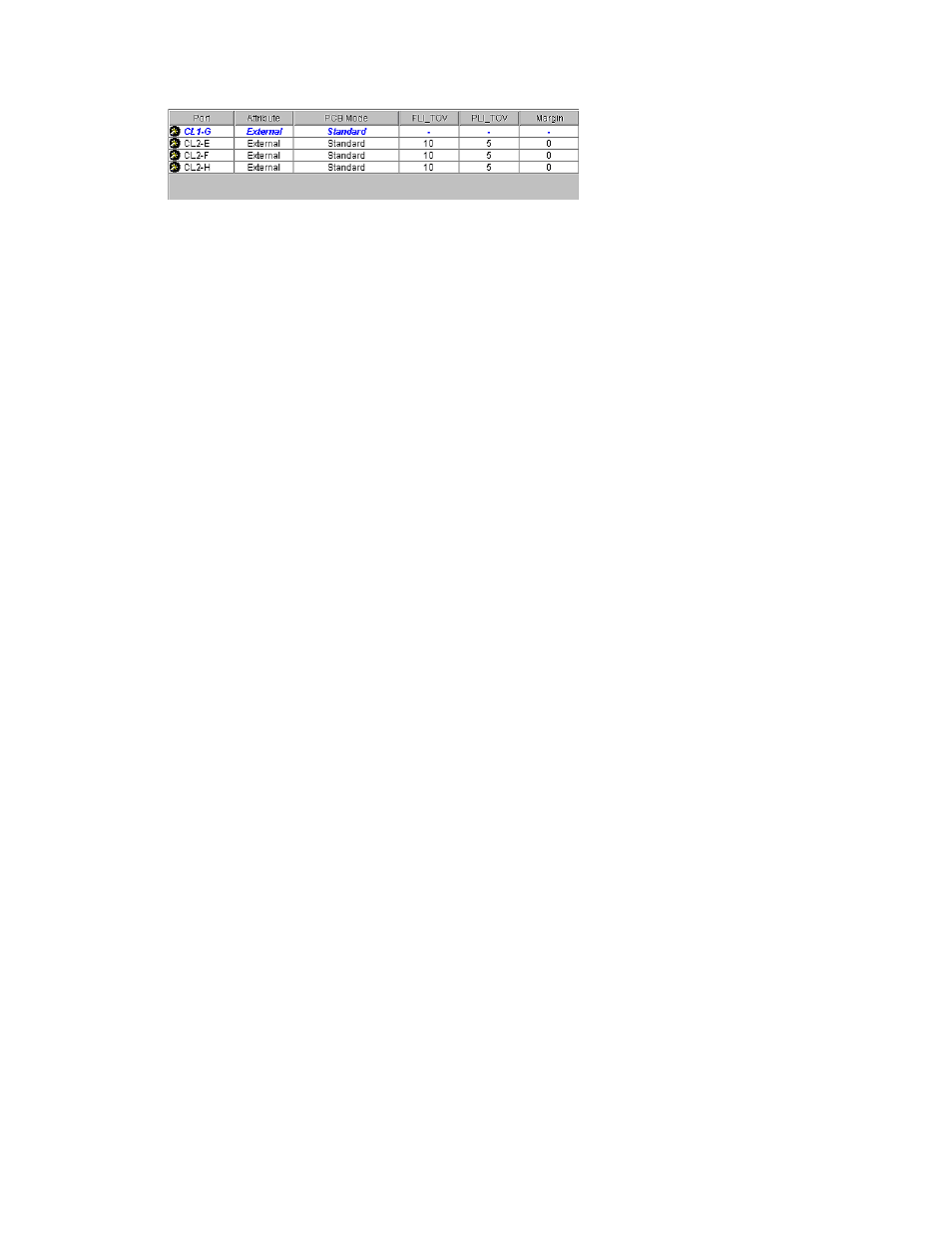

Figure 22 Port List
The Port List displays the following items:
• Port
Port number.
• Attribute
Port attribute. External ports are used for connecting to the external disk array.
• PCB Mode
PCB mode of the port. Ports designated as External do not have High Speed mode.
• FLI_TOV (Fabric Login Timeout Value)
Maximum time allowed (in seconds) for an external array to perform a fabric login after being
connected to a switch. This value is preset and cannot be changed.
• PLI_TOV (Port Login Timeout Value)
Maximum time allowed (in seconds) for the external array to perform a port login after being
connected. This value is preset and cannot be changed.
• Margin
The sum of the FLI_TOV and PLI_TOV values.
Preset List (Port Operation pane)
This list displays rows from the Port List that are about to be acted on. Check the contents of the Preset list
before applying them to the local disk array. Contents displayed in the Preset list appear in blue and italics
in the Port List. When you click Apply in the Port Operation pane, actions designated in the Preset list are
applied and the contents of the Preset list disappear.
If you click Cancel in the Port Operation pane, all designated actions in the Preset list are canceled.
If settings in the Preset list contain errors, actions are not applied to the local disk array even if you click
Apply. In that case, error messages appear, incorrect settings appear in the Preset list, and error codes
appear in the Preset list.
