If an error occurs, the failed setting appears in the Preset list and an error code appears.

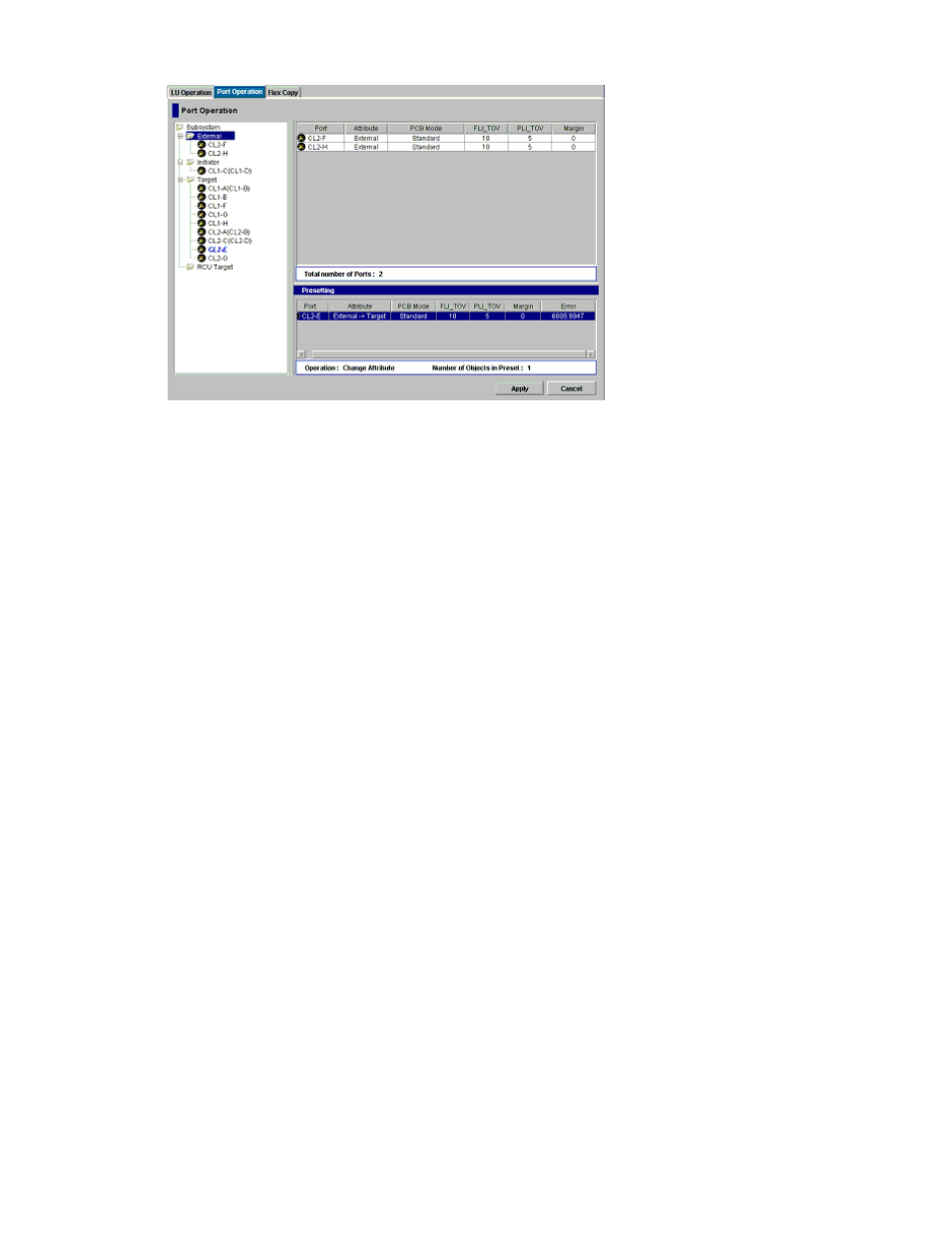

Figure 25
Error when changing port attribute
To view error messages, select the failed row, right-click, and select Detail.
6.
Set the topology according to the connection type.
• When a switch is connected, set the topology to Fabric ON + Point to Point.
• When a point-to-point connection is used, set the topology to FC_AL and AL_PA.
For further information, see the HP StorageWorks LUN Configuration and Security Manager XP User
Guide for the XP10000/XP12000.
7.
Set the channel transfer speed to Auto Negotiation.
Mapping external LUs
After setting the port used for External Storage XP to External, map the external LU as an internal XP LDEV.
There are two ways to map external LUs:
•
Manually via the Add LU command (”
Manually mapping external LDEVs (Add LU)
” on page 52). This
method displays the Add LU window (”
•
Automatically map several external LUs at one time via the Add LU (AUTO) command. This method
displays the Auto Map Setting window (”
” on page 50) and the Select LDEV
window (”
If you mapped the external volume and previously set the VMA of LUN Security XP Extension in that
volume, the former VMA setting is superseded when you map the volume again. However, if LUN Security
XP Extension is not installed when you remap the volume, the volume with the VMA setting cannot be
mapped.
