INTRODUCTION

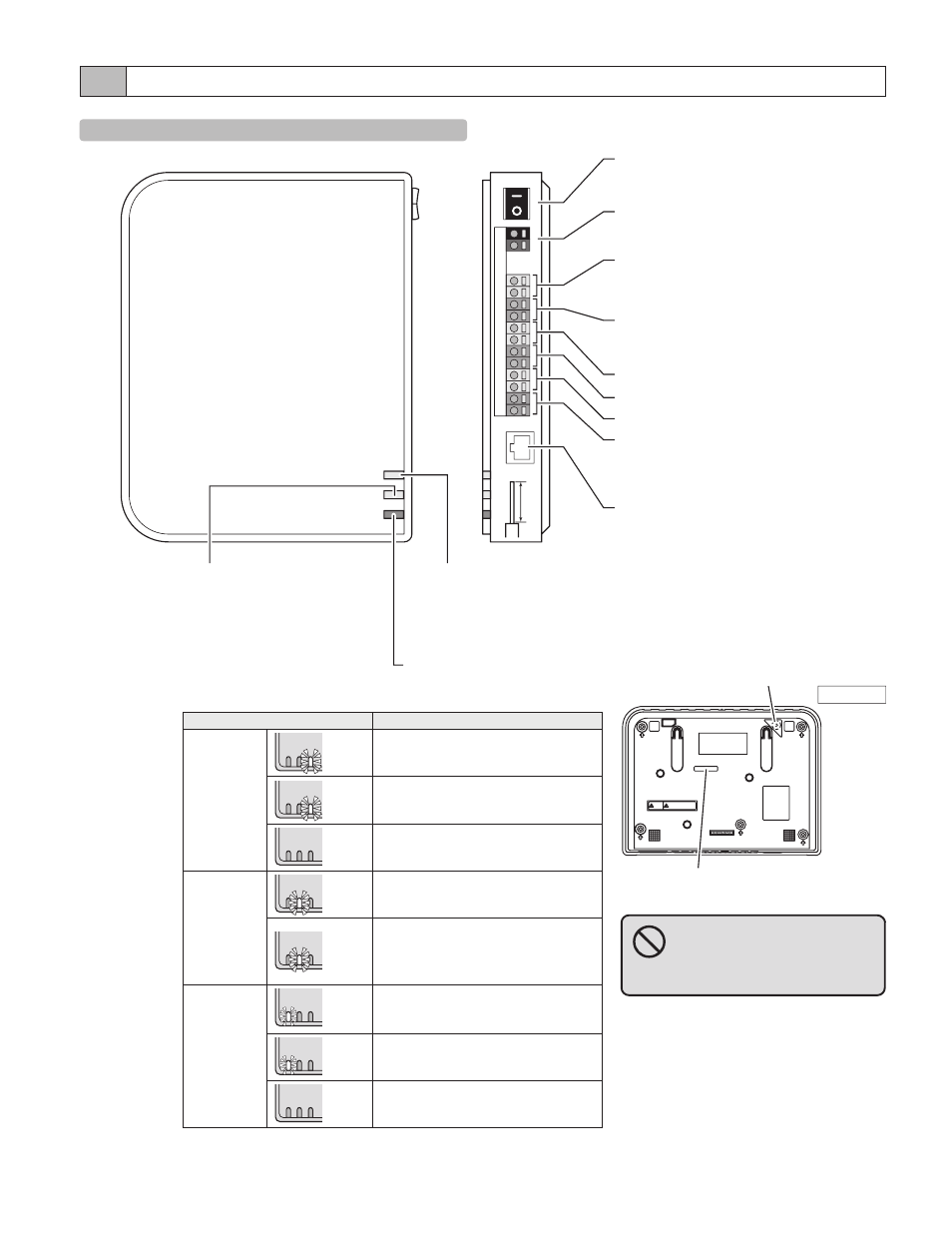

1-2 Names
S1
E
S2
E
S3
E
S4
E
RY
RY
B1
B2
DC18V
POWER
ON
OFF
+
-
POWER
AIPHONE JKW-IP
STATUS
LAN ACT
STRI
P
LENGTH
LAN
11
mm
Ш0.65
Ш1.2
IP Video Intercom Adaptor
POWER indicator (Green)
Lit green when the power is on.
STATUS indicator (Orange)
Blinks orange while the system
starts up, and remains lit once
startup is complete.
LAN ACT indicator (Orange)
Lit orange when a L A N is
connected, and blinks while
exchanging information over
the Ethernet.
Default setting switch (within the sticker area)
When pressed for 5 seconds or more, IP Video
Intercom Adaptor settings are returned to their
factory default settings.
POWER terminal (18V DC)
Connects the power cable.
POWER switch
Turns the power ON or OFF.
Master monitor station connection
terminal
Connects to the master monitor station.
Option output terminal
Connects output signals for option units.
Sensor input 4 terminal
Sensor input 3 terminal
Sensor input 2 terminal
Sensor input 1 terminal
Connects to buttons, sensors, etc. for option
units.
LAN port
Connects networking unit such as router.
MAC Address
(Do not remove.)
Back view
Never press the default set ting
switch unless it is necessary.
The registered settings will return to
the default (factory) settings.
Indicator operation summary
Indicator Description
LAN ACT
indicator
(Orange)
Lit
Normal operation (When connected
to network) •
Blinking
Exchanging information with LAN
port •
Off Network connection abnormality •
STATUS
indicator
(Orange)
Lit Normal operation •
Blinking
Starting up
When the default setting switch is
pressed and held for 5 seconds or
more
•
•
POWER
indicator
(Green)
Lit Power is on •
Blinking
Abnormality in communication with
master monitor station •
Off Power is off •
