- INSTRUCTIONS -
The IP-EWST offers voice-quality Intercom function over TCP/IP based networks. Designed specifically to
integrate seamlessly into a new or existing LAN / WAN infrastructure, the IP-EWST is capable of hundreds of
stations, fulfilling a large variety of applications including commercial, industrial and residential access
control; general security, office, and institutional intercom / paging; and many more. Power over Ethernet
(PoE) capability is also supported (IP-EWST-POE only), allowing greater installation flexibility for both new
and retrofit applications.
Intercom-Over-IP Adaptor Set
Pg. 1
NAMES & FEATURES
FEATURES:
Cost-effective PC-based design
Compatible with LE-series and IE-series
substations, as well as standard speaker /
pushbutton stations
Scalable to hundreds of stations / locations
Works with standard wired and wireless TCP/
IP networks (LAN/WAN)
Digital audio recording and playback capability
Relay output for remote release (N/O and N/C)

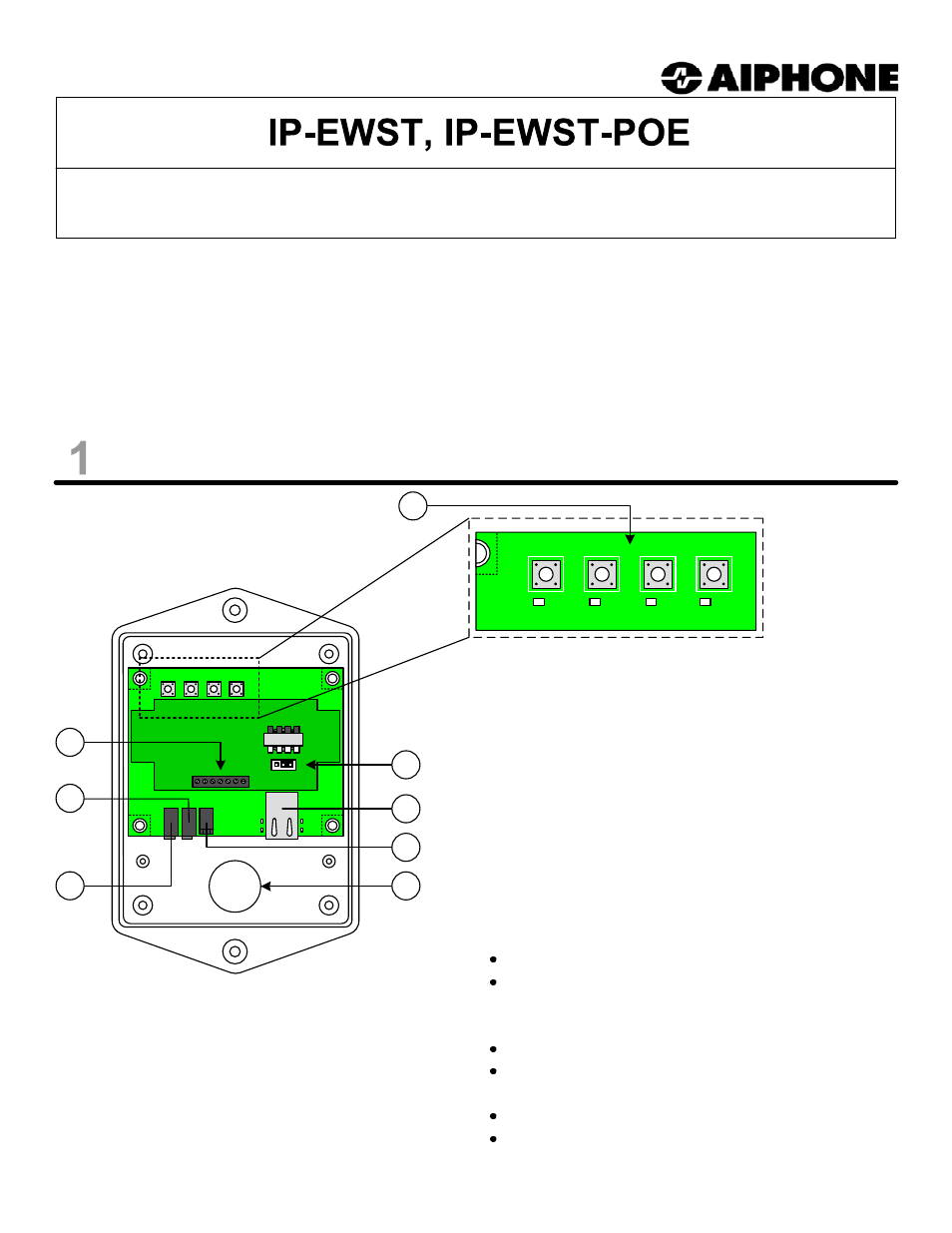

NAMES & FUNCTIONS:
1. RJ-45 10/100 Ethernet jack &
connection indicator LEDs
2. 2.1mm Power jack
3. 3.5mm Audio output jack
4. 3.5mm Mic input jack
5. Sub station personality jumper
6. Sub station / relay terminals
7. Manual sub station push buttons &
Diagnostic LEDs (LD1,LD8,LD9,LD10)
9. Wire access hole
IP-EWST
IP-EWST-POE
1106
1
2
3
5
6
7
9 4
2W ST
Package Contents:
(1) IP-EWST or IP-EWST-POE
(1) Talkmaster™LE mini-CD
(4) Chassis screws
(2) Adhesive-backed pull tie guides
RESET + - TA LK
LD10 LD9 LD8 LD1
