O AlPHONE
83259300 1090 <
MID-POWER INTERCOM SYSTEM
MODEL: MP-1S (one call master)
MODEL: MP-3S
(three call master)
-
INSTRUCTIONS -
©

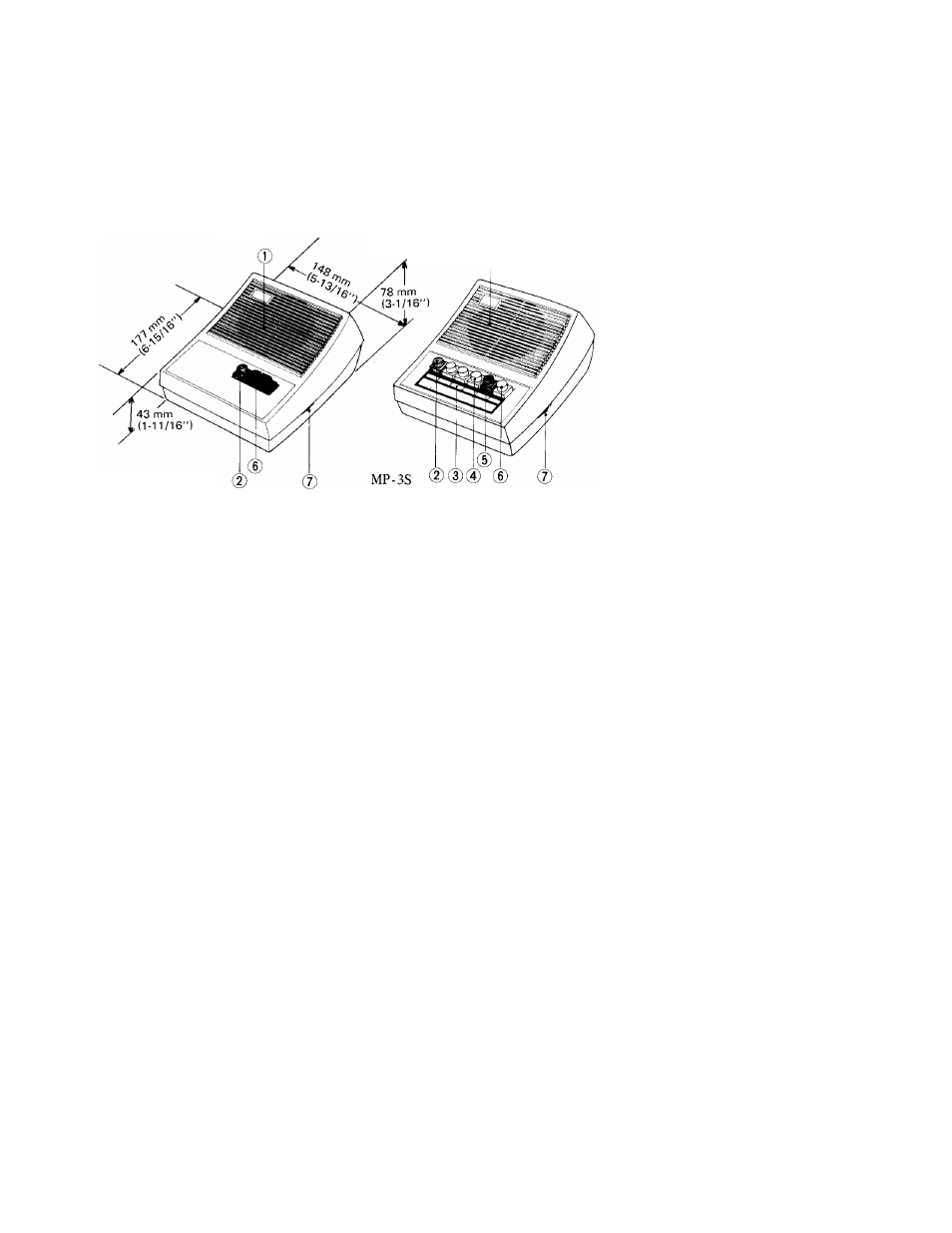

CONTROLS AND FUNCTIONS:
Speaker/Microphone
(©) OFF Button
(D Call LED
( 7 ) Selector Button
(©) CALL Button
@ TALK Button
(T) Volume Control
MP-IS
SPECIFICATIONS:
* Power Source:
* Current Consumption;
* Power Output:
* Wiring:
* Output Impedance: DC 12V — Use 1 PS-12A (or PS-12C in North America) power supply per system
lA maximum
2.5W maximum at IKHz.
Single pair per sub station
8 ohms
FEATURES:
* Desk or Wall Mount
* Call tone volume adjustable for individual station requirements
* 2.5 Watt output for powerful communication
* Audible call tone plus LED announce incoming calls
* Ease of operation — Press to talk, Release to listen
* Talkback ceiling speakers (optional) for added versatility
* System can utilize up to 10 watt horns
COMPONENTS AVAILABLE EROM AlPHONE TO DESIGN YOUR MP-S INTERCOM SYSTEM
MP-IS: 1 call master station. NP-B, Call button
MP-3S: 3 call master station. PS-12C: CSA & UL Listed power supply
(available only in North America).
PS-12A: Power supply (not available in
North America).
AS-3N: Ceiling or wall mount
speaker. N-EA: Round frame for AS-3N
surface-mounting.
AS-3A: Desk or wall mount
sub station. NBZ-M; Square frame for AS-3N
flush-mounting.
1
-
Note: Horn speakers not available from Aiphone
