1: General Description
3
1.3 Supplied Hardware
The PUF equipment is supplied in a rugged IP67 carrying case fitted with a foam insert to give added protection
for transportation. The supplied components are shown in Figure 1.2.

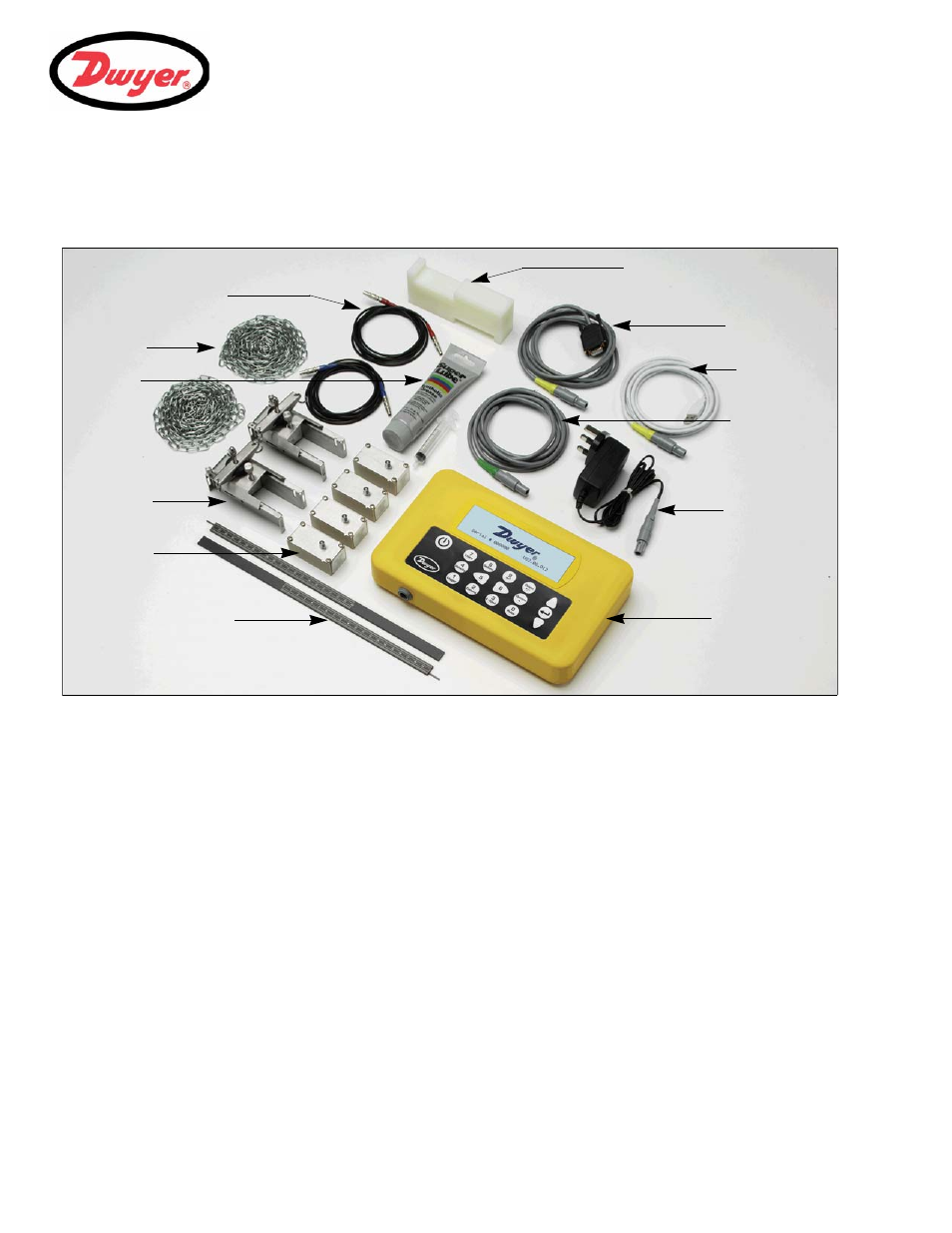

Figure 1.2 Standard PUF equipment
Standard equipment
• PUF instrument with backlit graphic display.
• Power supply - with UK, US, European adaptors. 110/240VAC.
• 4 to 20 mA/Pulse Output cable, USB cable and RS232-C cable.
• 2 lengths of chain each at 130 inches (3.3 m) long.
• Test block.
• Transducer cables (x2) 79 inches (2 m) long.
• Transducer set 'A' (Transducers x2).
• Transducer set 'B' (Transducers x2).
• Set of transducer holders for use with ‘A’ or ‘B’ transducers.
• Ruled separation bar (2-piece).
• Ultrasonic couplant.
• Manual.
Optional equipment
• Transducer set 'D' – used for monitoring pipes of 50 to 197 inches (1.27 to 5 m) diameter, over a
temperature range of -4°F to +176°F (-20°C to +80°C). Kit is supplied in a separate case and includes the
sensors together with ratchet straps and transducer holders for attaching to the pipe.
4 to 20 mA/
Test Block
RS232 Cable
USB Cable
Power Supply
Pulse Output
Cable
Transducer Cables (x2)
Chains (x2)
Transducer
Transducers
(Sensors) (Ax2, Bx2)
Ultrasonic
Ruled Separation bar (x2) PUF Instrument
Couplant
(Batt. Charger)
Holders (x2)
