Printer test, Operating procedures – Dwyer Series PUF User Manual
Page 44
3: Operating Procedures
40
Printer test
5.
To check that the PUF printer interface is operational, select
Printer test from the SETUP RS232/USB
menu. If the RS232 interface is working correctly the software revisions and serial number will be printed:

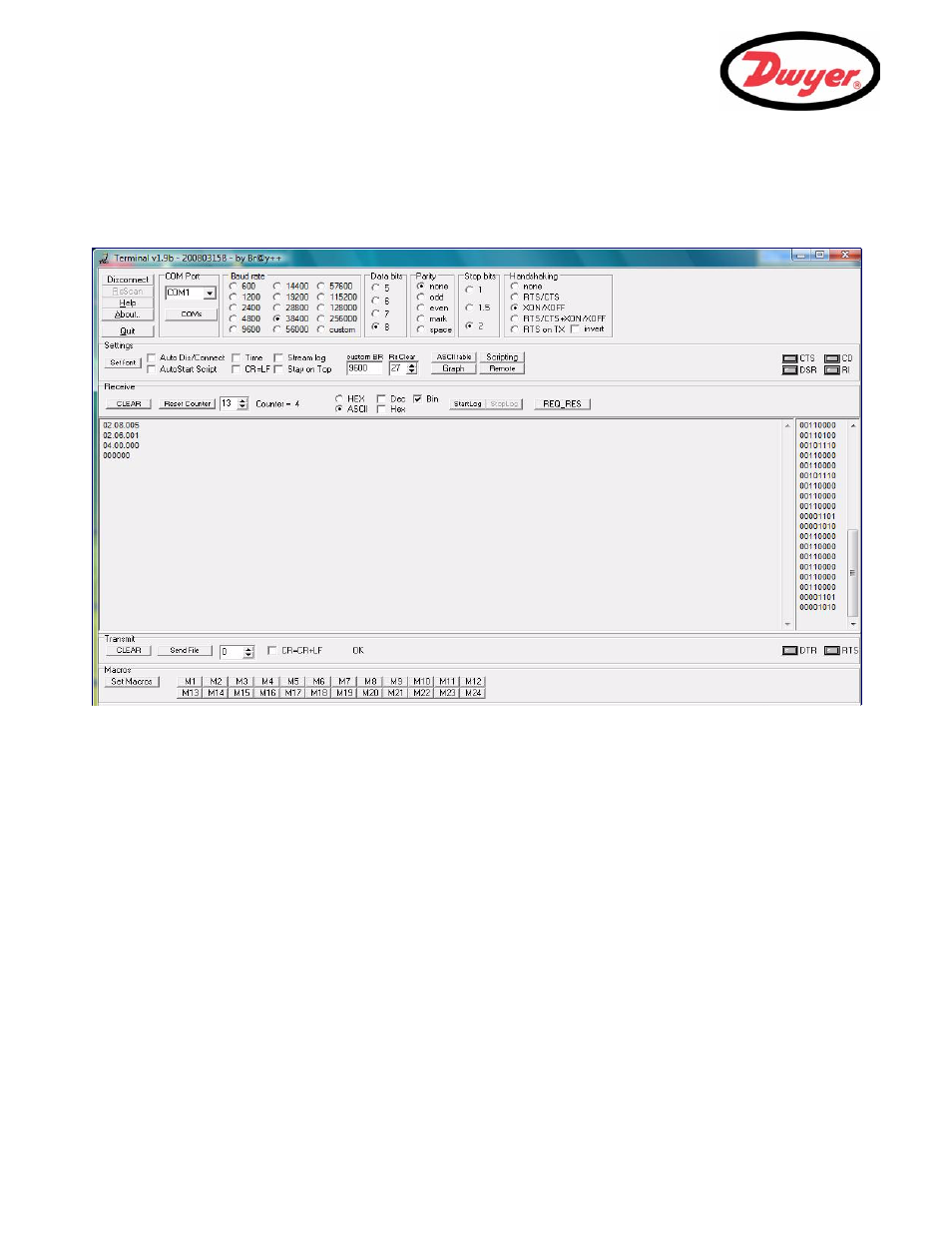

Figure 3.1 Printer test results in Terminal window
If nothing is printed, check that the RS232 parameter settings are correct for the printer and that the PUF TxD
and RxD signals are compatible with the printer’s RS232 interface. A gender changer may be required to
swap the TxD and RxD signals.
