EasiCool™ Precision Air Conditioning
Dimensional & Installation Data
Dimensions

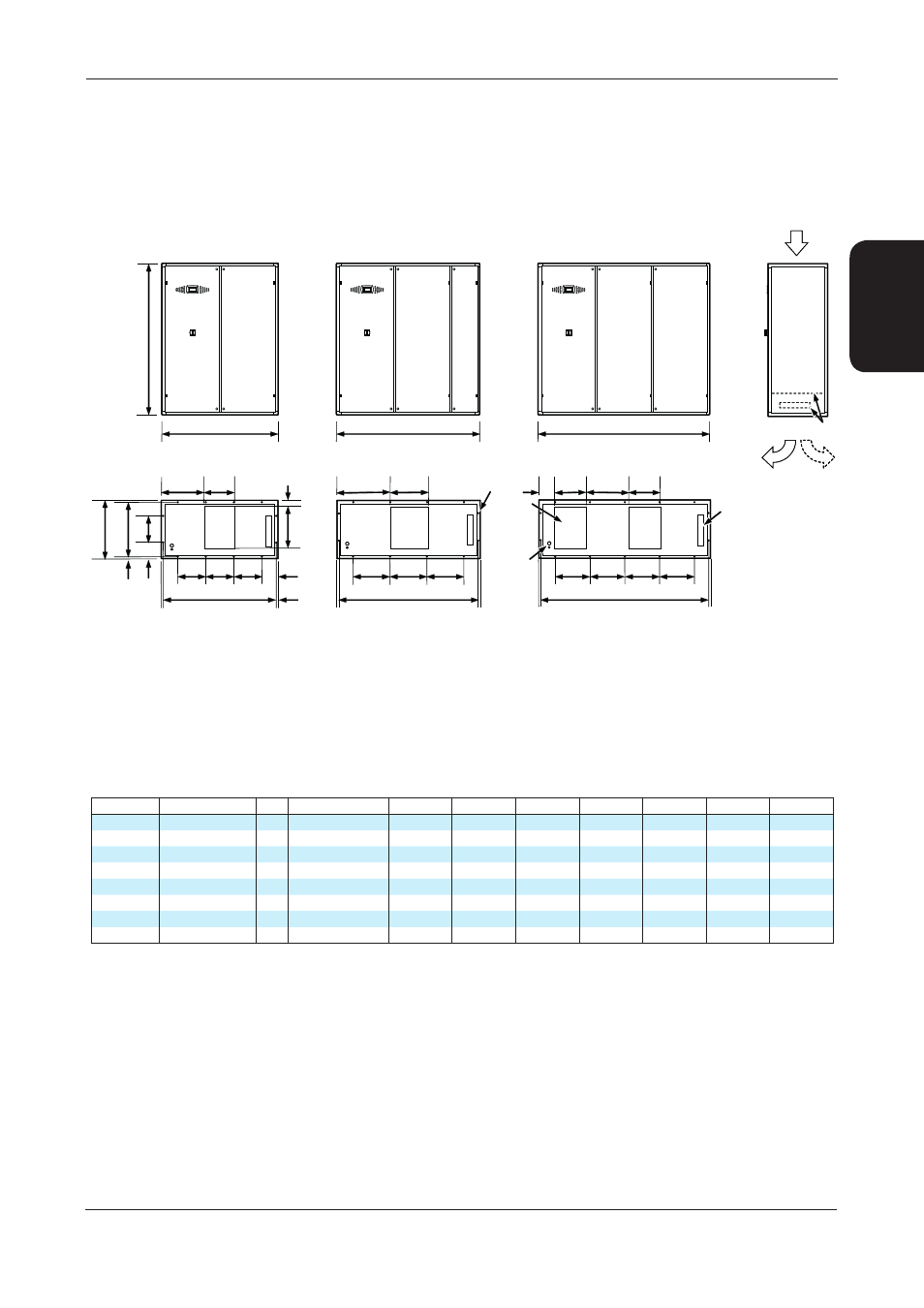

DF28 - DF60 - Standard Airflow Configuration (mm) with Standard AC Fan Motors
1 2
19
40
1460
28 - 31
1835
35 - 45
2170
50 - 60
3
4
20 21
0
75
0
71
0
33
0
A
B B
C
20
210
F
G
B
D
A
B B
C
B
E
A
B B
D
B B
D C D
6
7
5
H x D x W A B C(8) D(8) E F(9) G(8)
DF28 X/WX mm 1940 x 750 x 1460 1420 347 540 379 N/A 91 (113) 546
DF31 X/WX mm 1940 x 750 x 1460 1420 347 540 379 N/A 91 (113) 546
DF35 X/WX mm 1940 x 750 x 1835 1795 472 679 477 N/A 91 (113) 546
DF40 X/WX mm 1940 x 750 x 1835 1795 472 679 477 N/A 91 (113) 546
DF45 X/WX mm 1940 x 750 x 1835 1795 472 679 477 N/A 91 (113) 546
DF50 X2/WX2 mm 1940 x 750 x 2170 2130 438 206 401 543 76 (257) 345
DF55 X2/WX2 mm 1940 x 750 x 2170 2130 438 206 401 543 76 (257) 345
DF60 X2/WX2 mm 1940 x 750 x 2170 2130 438 206 401 543 76 (257) 345
(1) Standard forward airflow direction.
(2) Optional reverse airflow direction.
(3) Optional gland plate and panel for side services access via the right side of unit. For services details contact Airedale.
(4) Base mains cable entry.
(5) Standard base gland plate entry for refrigeration/water services. For services details contact Airedale.
(6) Shaded area denotes fan discharge aperture. Optional EC fan motor discharge aperture provided with protective mesh, not shown.
(7) M6 fixing hole positions.
(8) Figures in brackets represent position of fan discharge aperture when larger AC fan motor option is fitted.
(9) Figures in brackets represent optional reverse air discharge configuration when fitted with standard AC fan motors.
(10) Units fitted with optional EC fan motors require a floorstand.
33 EasiCool Technical Manual 7535776 V1.1.0_04_2013
