EasiCool™ Precision Air Conditioning
H x D x W A B C D E F G
DF8 X/WX mm 1940 x 670 x 670 640 270 183 304 N/A 50 268
DF10 X/WX mm 1940 x 670 x 670 640 270 167 337 N/A 50 295
DF13 X/WX mm 1940 x 670 x 990 960 590 326 337 N/A 50 295
DF15 X/WX mm 1940 x 670 x 990 960 590 294 401 N/A 50 347
DF17 X/WX mm 1940 x 670 x 990 960 590 294 401 N/A 50 347
DF20 X2/WX2 mm 1940 x 670 x 1310 1280 455 166 337 303 50 295
DF22 X2/WX2 mm 1940 x 670 x 1310 1280 455 166 337 303 50 295
DF26 X2/WX2 mm 1940 x 670 x 1310 1280 455 166 337 303 50 295
(1) Standard forward airflow direction.
(2) Optional reverse airflow direction.
(3) Optional gland plate and panel for side services access via the right side of unit. For services details contact Airedale.
(4) Base mains cable entry.
(5) Standard base gland plate entry for refrigeration/water services. For services details contact Airedale.
(6) Shaded area denotes fan discharge aperture. Optional EC fan motor discharge aperture provided with protective mesh, not shown.
(7) M6 fixing hole positions.
(8) Units fitted with optional EC fan motors require a floorstand.
1 2
8 - 10 13 - 17 20 - 26
3
67
0
A
64
0
27
0
15
20
0
B
15
200
D C
F
G
A
B
D C
A
5
B B
D C D E
4
6
7
19
40
670 990 1310

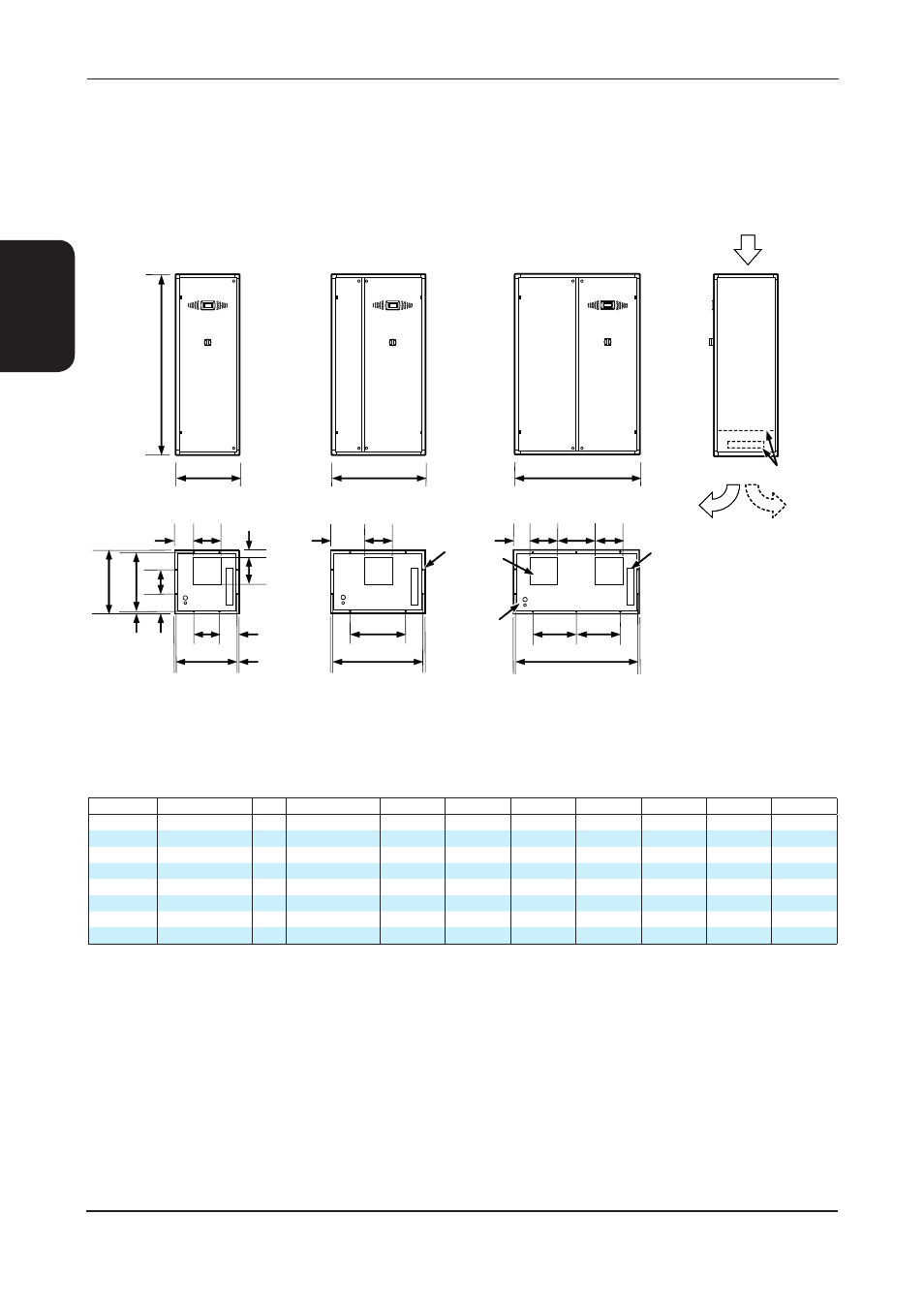

Dimensional & Installation Data
Dimensions
DF8 - DF26 - Standard Airflow Configuration (mm) with Standard EC Fan Motors
32 EasiCool Technical Manual 7535776 V1.1.0_04_2013
