EasiCool™ Precision Air Conditioning

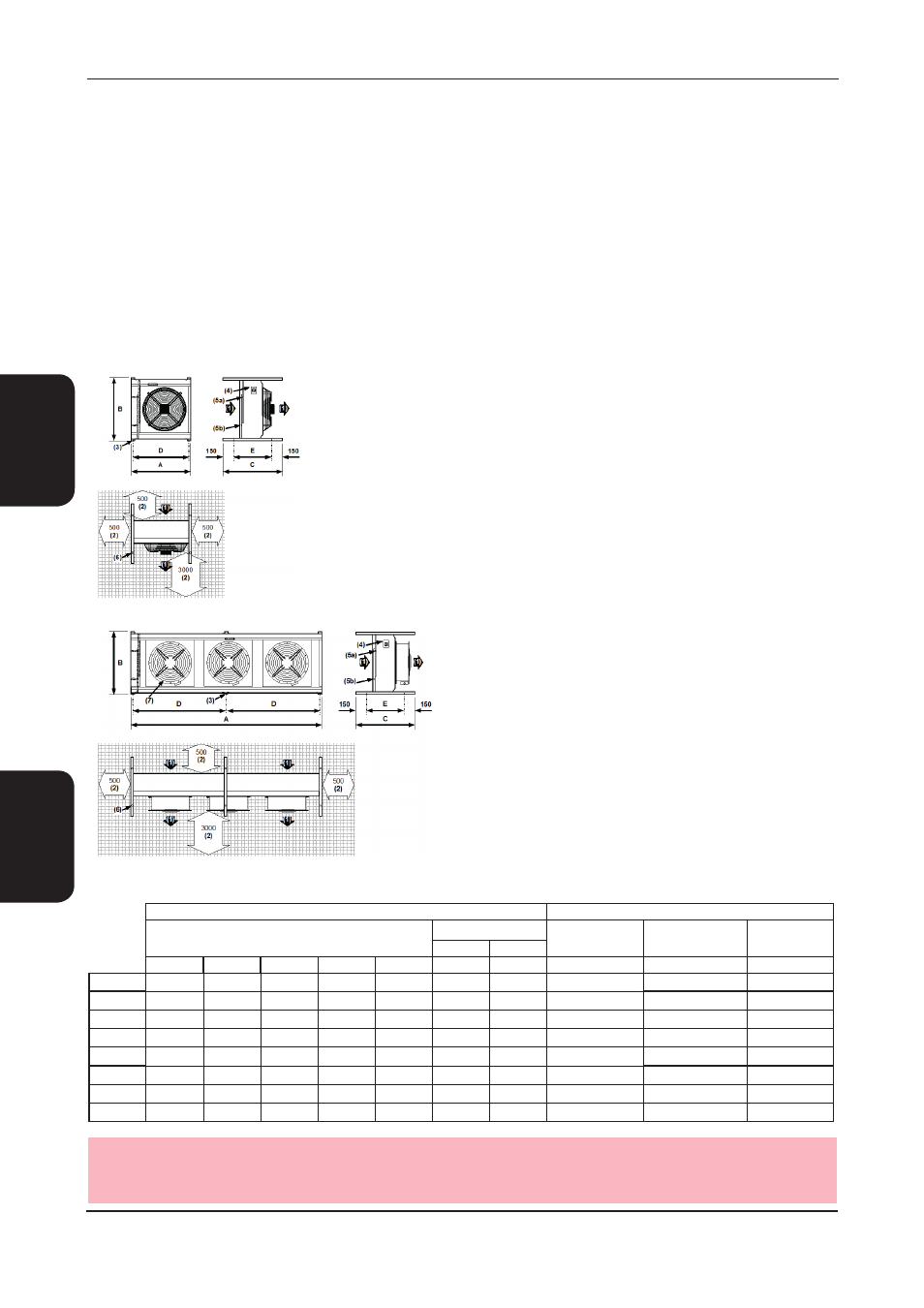

Dimensions / Weights / Positioning - Horizontal
IMPORTANT
Unit diagrams can be supplied on request.
The legs attached to the top of the unit are for lifting and stacking and may be removed and stored safely if not required.
Only 2 units may be stacked together.
Diagram illustrated in mm
(1)
Airflow
(2) Minimum Clearances
(3) 12.7mm fixing hole
(4) Mains Electric Isolator
(5) Service connections to left hand
side of the unit:
a = Liquid Outlet (ALWAYS above (b))
b = Discharge Gas Inlet
(6) Top brackets may be used to secure unit
of similar size on top, using, 2 x 12.7mm
fixing holes
(1) Airflow
(2) Minimum Clearances
(3) 12.7mm fixing hole
(4) Mains Electric Isolator
(5) Service connections to left hand side of
the unit:
a = Liquid Outlet (ALWAYS above (b))
b = Discharge Gas Inlet
(6) Top brackets may be used to secure unit
of similar size on top, using, 2 x 12.7mm
fixing holes
(7) Optional Short Case Axial Fan with
integral duct fixing holes
Standard Condenser Fan (CR12 - CR30 Shown)
Optional Short Case Axial Fan (SCAF) (CR80 - CR105 Shown)
CAUTION
A vertical air discharge unit is recommended for installation in windy locations or wherever a horizontal airflow would be
obstructed.
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options
Standard AC Fan Optional EC Fan Optional SCAF
SCAF EC
A B C D E B B
CR12 907 972 1000 845 700 62 67 67 67 67
CR16
907 972 1000 845 700 70 76 75
76 75
CR22
1102 1167 1000 1040 700 77 83 88
83 88
CR30
1102 1167 1000 1040 700 90 96 101
96 101
CR50
2184 1167 1000 2121 700 132 145 154
145 154
CR65
2184 1167 1000 2121 700 162 175 184
175 184
CR80
3565 1167 1000 1752 700 208 228 242
228 242
CR105
3565 1167 1000 1752 700 260 280 294
280 294
Installation Data
180 EasiCool Technical Manual 7535776 V1.1.0_04_2013
