EasiCool™ Precision Air Conditioning
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options
Standard AC Fan Optional EC Fan Optional SCAF
SCAF EC
A B C D E B B
CR12 907 1076 972 847 912 1080 1065 62 67 67
CR16 907 1076 972 847 912 1080 1065 70 76 75
CR22 1102 1090 1167 1042 1107 1130 1127 77 83 88
CR30 1102 1090 1167 1042 1107 1130 1127 90 96 101
CR50 2184 1090 1167 2124 1107 1130 1127 132 145 154
CR65 2184 1090 1167 2124 1107 1130 1127 162 175 184
CR80 3565 1090 1167 1753 1107 1130 1127 208 228 242
CR105 3565 1090 1167 1753 1107 1130 1127 260 280 294

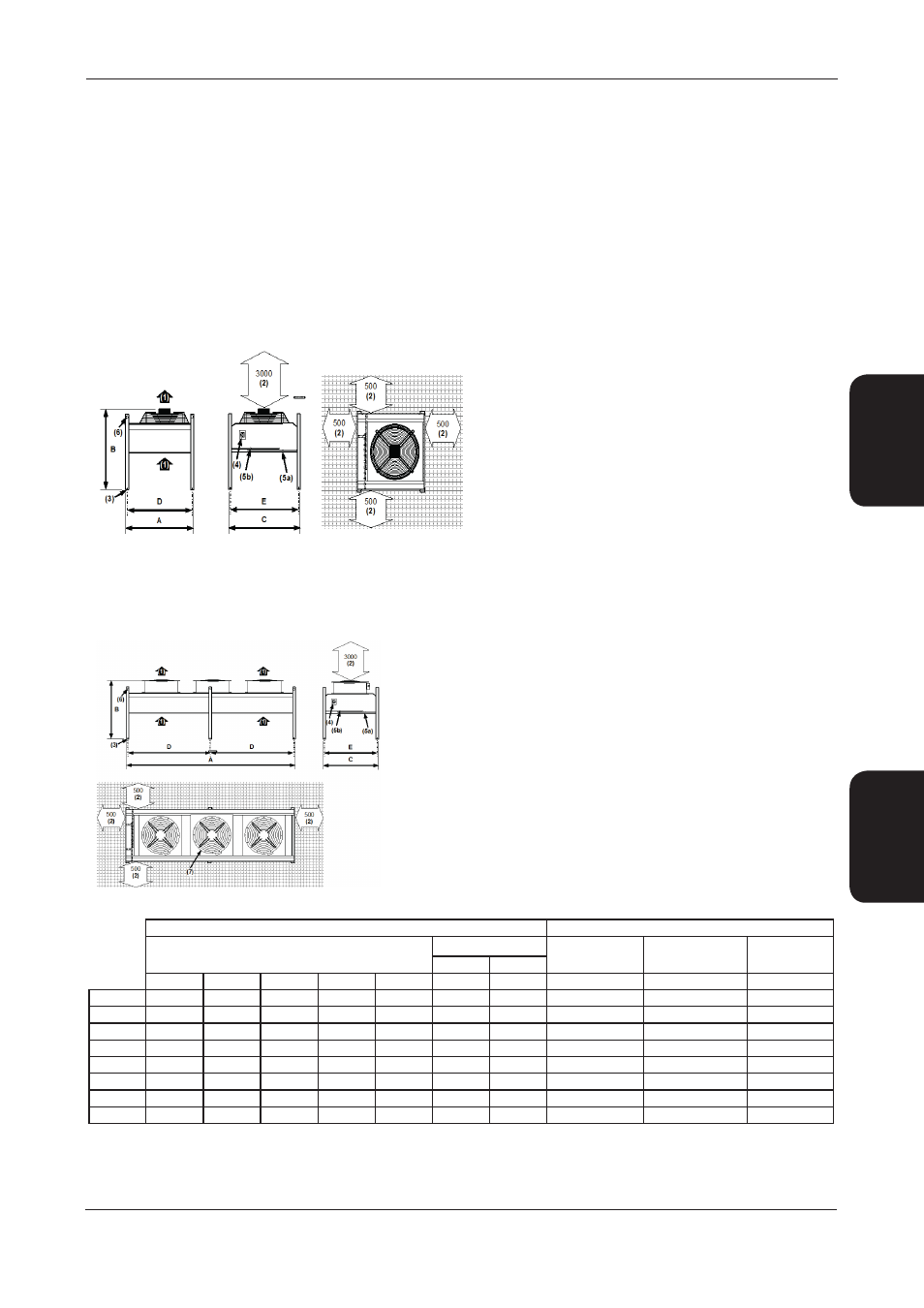

Standard Condenser Fan (CR12 - CR30 Shown)
Diagram illustrated in mm
(1) Airflow
(2) Minimum Clearances
(3) 12.7mm fixing hole
(4) Mains Electric Isolator
(5) Service connections to left
hand side of the unit:
a = Liquid Outlet
b = Discharge Gas Inlet
(6) 40mm Lifting Holes
Dimensions / Weights / Positioning - Vertical
IMPORTANT
Unit diagrams can be supplied on request.
The following illustrations show the unit following fixing leg re-orientation, instructions are provided for this at delivery.
Diagram illustrated in mm
(1) Airflow
(2) Minimum Clearances
(3) 12.7mm fixing hole
(4) Mains Electric Isolator
(5) Service connections to left hand side
of the unit:
a = Liquid Outlet
b = Discharge Gas Inlet
(6) 40mm Lifting Holes
(7) Optional Short Case Axial Fan with
integral duct fixing holes
Optional Short Case Axial Fan (SCAF) (CR80 - CR105 Shown)
Dimensional & Installation Data
181 EasiCool Technical Manual 7535776 V1.1.0_04_2013
