EasiCool™ Precision Air Conditioning
System Configuration
Downflow Upflow
X Type WX Type X Type WX Type
Refrigeration
Scroll Compressor
● ● ● ●
Evaporator Coil
● ● ● ●
Refrigeration Sight Glass
● ● ● ●
Oil Separator
○ ○ ○ ○
Liquid Line Solenoid Valve
○ ○ ○ ○
Refrigerant Pump down
○ ○ ○ ○
Hot Gas Reheat
○ – ○ –
Suction Throttle Valve
○ ○ ○ ○
Plate Condenser
○ ● ○ ●
Thermostatic Expansion Valve (TEV)
● ● ● ●
Electronic expansion Valve (EEV)
○ ○ ○ ○
●
Standard Feature
○
Optional Feature
–
Not Available
Evaporator
Large surface area coil ideally positioned to optimise airflow and heat transfer, manufactured from refrigeration quality
copper tube with mechanically bonded aluminium fins.
The copper tube is internally rifled for improved heat transfer.
Fins are coated with a non-stick acrylic film (hydrophilic) which provides additional corrosion protection and efficient
surface water removal for improved performance.
The cooling coil is mounted over a full width stainless steel condensate tray.
Factory pressure tested to 45 Barg.
X Models Only Sweat copper pipe for brazed connection as standard.

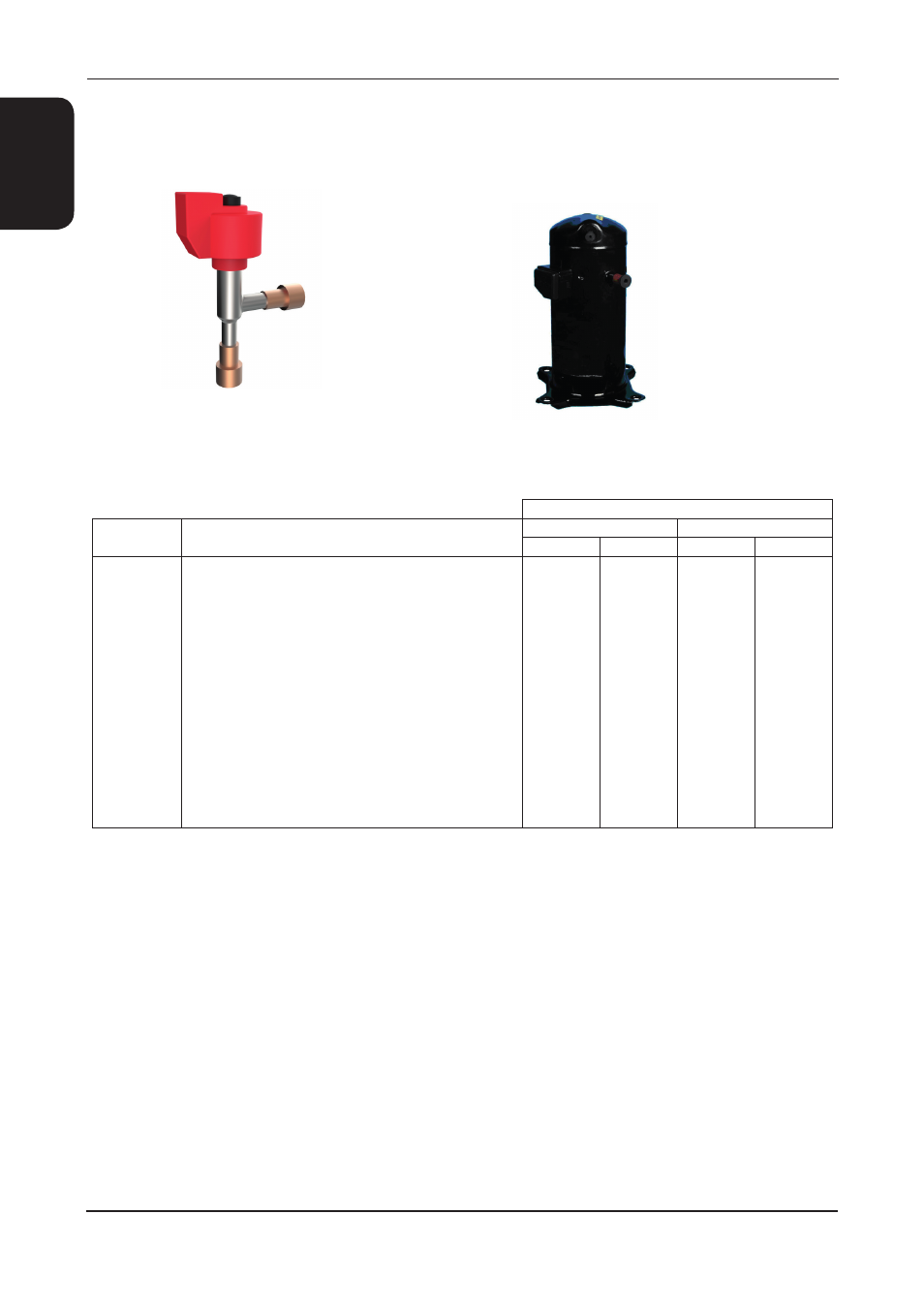

Refrigeration Components
12
Introduction
EasiCool Technical Manual 7535776 V1.1.0_04_2013
