B-18
SERIES EL 071414
B.100 SYSTem:MODE COMMAND
SYST:MODE
Syntax: Short Form: SYST:MODE
Long Form: SYSTem:MODE
Description: Initiates a transient. Sending SYST:MODE TRANS initiates a transient pulse. The operating MODE
(PAR. B.40) determines the type of transient (voltage, current, conductance or resistance) and the
transient parameters are determined by the corresponding transient command: for voltage see
VOLT:TRAN, (PAR. B.62), for current see CURR:TRAN (PAR. B.38), for conductance see
COND:TRAN (PAR. B.30) and for resistance see RES:TRAN (PAR. B.50).
Sending SYST:MODE FIX terminates SYST:MODE TRANS and disables analog programming (sets
SYST:EXT (see PAR. B.96) to OFF.
Sending SYST:MODE EXT terminates SYST:MODE TRANS and enables analog programming (sets
SYST:EXT (see PAR. B.96) to ON.

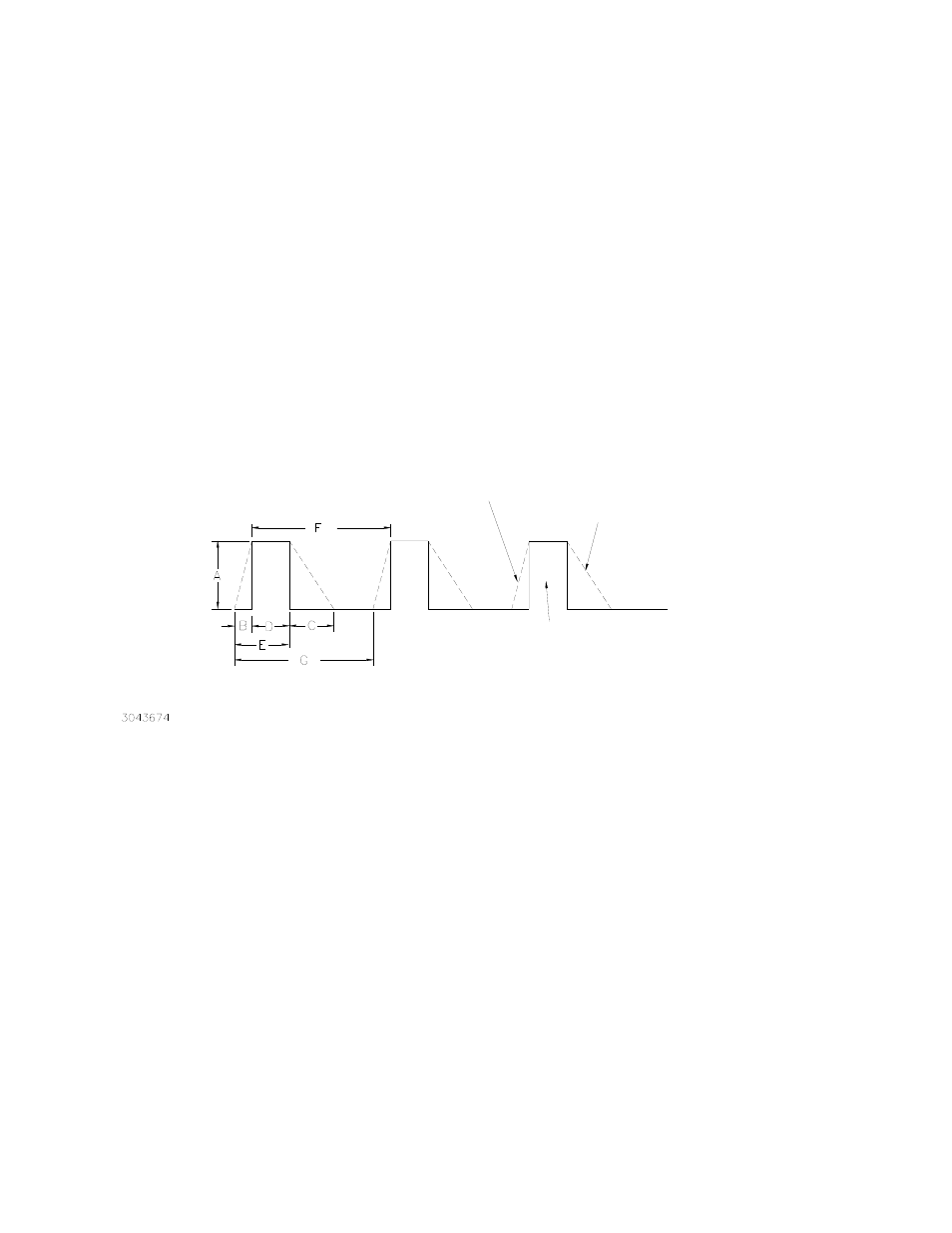

FIGURE B-1. RAMP AND TRANSIENT TIMING
B.101 SYSTem:MODE? QUERY
SYST:MODE?
Syntax: Short Form: SYST:MODE? Long Form: SYSTem:MODE?
Returns
Description: Indicates SYSTem:MODE status. Returns TRANS if transient is enabled, returns FIX if both transient
and analog programming are disabled, and returns EXT if analog programming is enabled.
A = Transient
B = SYST:RAMP:POS or RAMP POS time from front panel
C = SYST:RAMP:NEG or RAMP NEG time from front panel
D = Transient (no ramp)
E = Transient (with ramp)
F = Transient (no ramp)
G = Transient (with ramp)
Positive
Ramp Negative
Ramp
Transient pulse
(Count = 3)
NOTE: TRANSIENT WILL NOT EXECUTE IF:
1. B > D
2. E + C > G
