Page 29

SERIES EL 071414

2-11

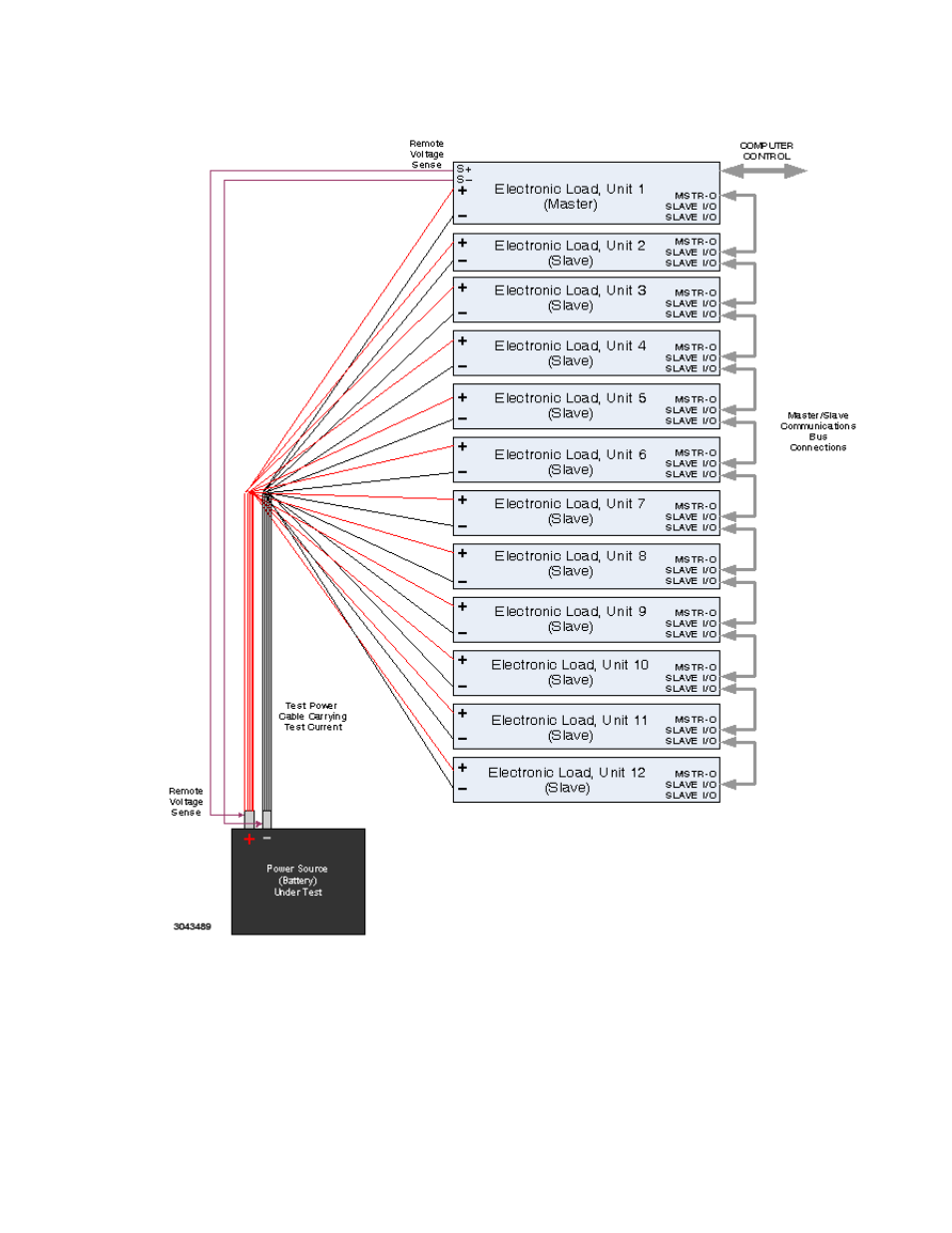

FIGURE 2-7. TYPICAL MASTER/SLAVE INTERCONNECTIONS

NOTES:
1 Remove local sense jumpers between + and S+ and between – and S– on

Master only. (See Fig. 2-4 for single or Figure 2-5 for dual output models.)

2. Connect all Electronic Loads to Earth (safety) Ground using ground stud with

wingnut at upper left corner of each rear panel.
