2-2 SERIES EL 071414

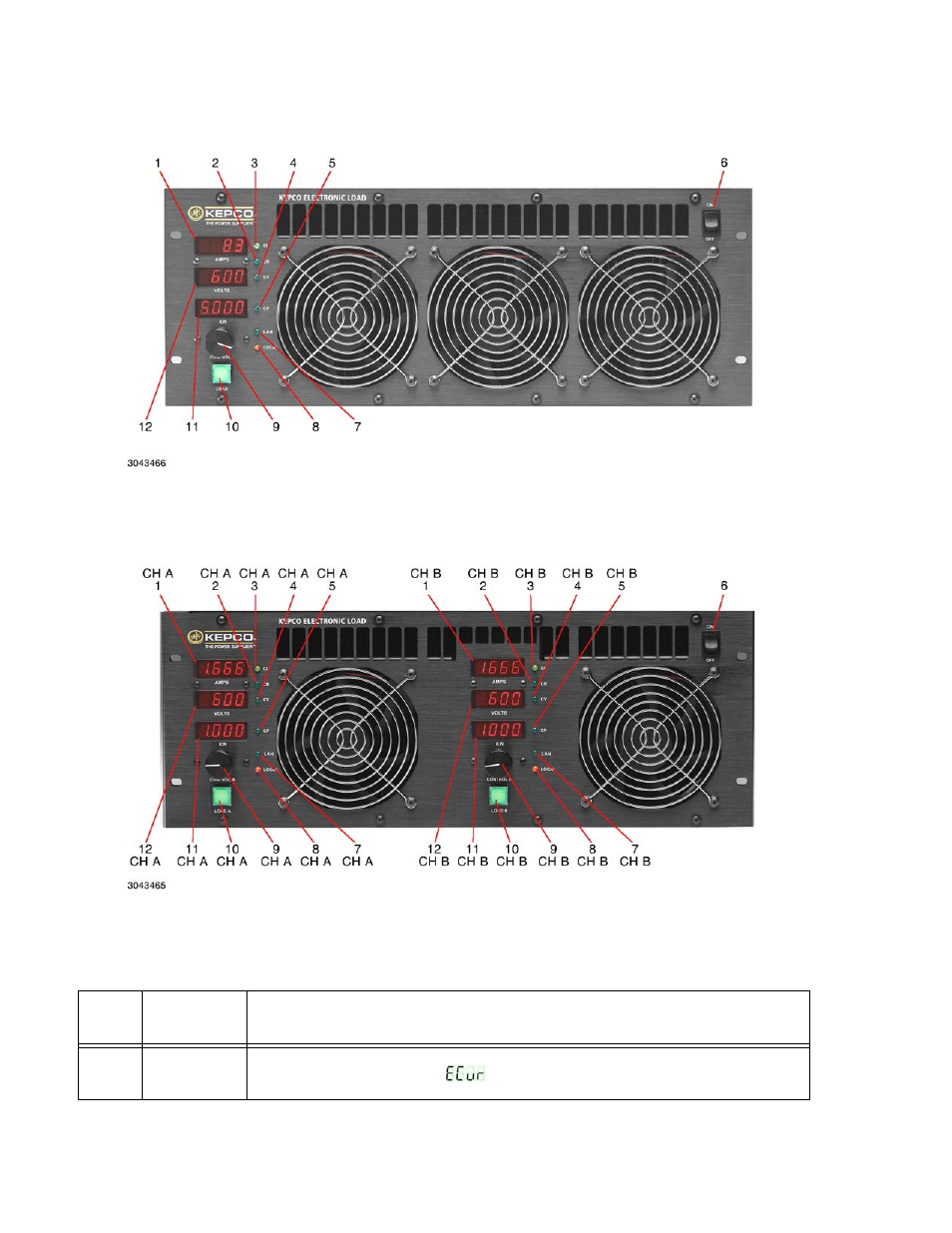

FIGURE 2-2. SERIES EL, FRONT PANEL CONTROLS AND INDICATORS
FIGURE 2-3. SERIES EL, DUAL MODEL FRONT PANEL CONTROLS AND INDICATORS
TABLE 2-1. FRONT PANEL FUNCTIONS
SEE
FIG. 2-2
OR 2-3
COMPONENT FUNCTION
1 AMPS display Displays the load test current in Amps (factory default setpoint (see NOTE): 0 Amps) or test current
setpoint in Amps. May also show
(ECUR) error message (see PAR. 3.3.1) This fault sets
the input to OFF.
NOTE: See Table 2-1 for callout descriptions.
NOTE: See Table 2-1 for callout descriptions.
