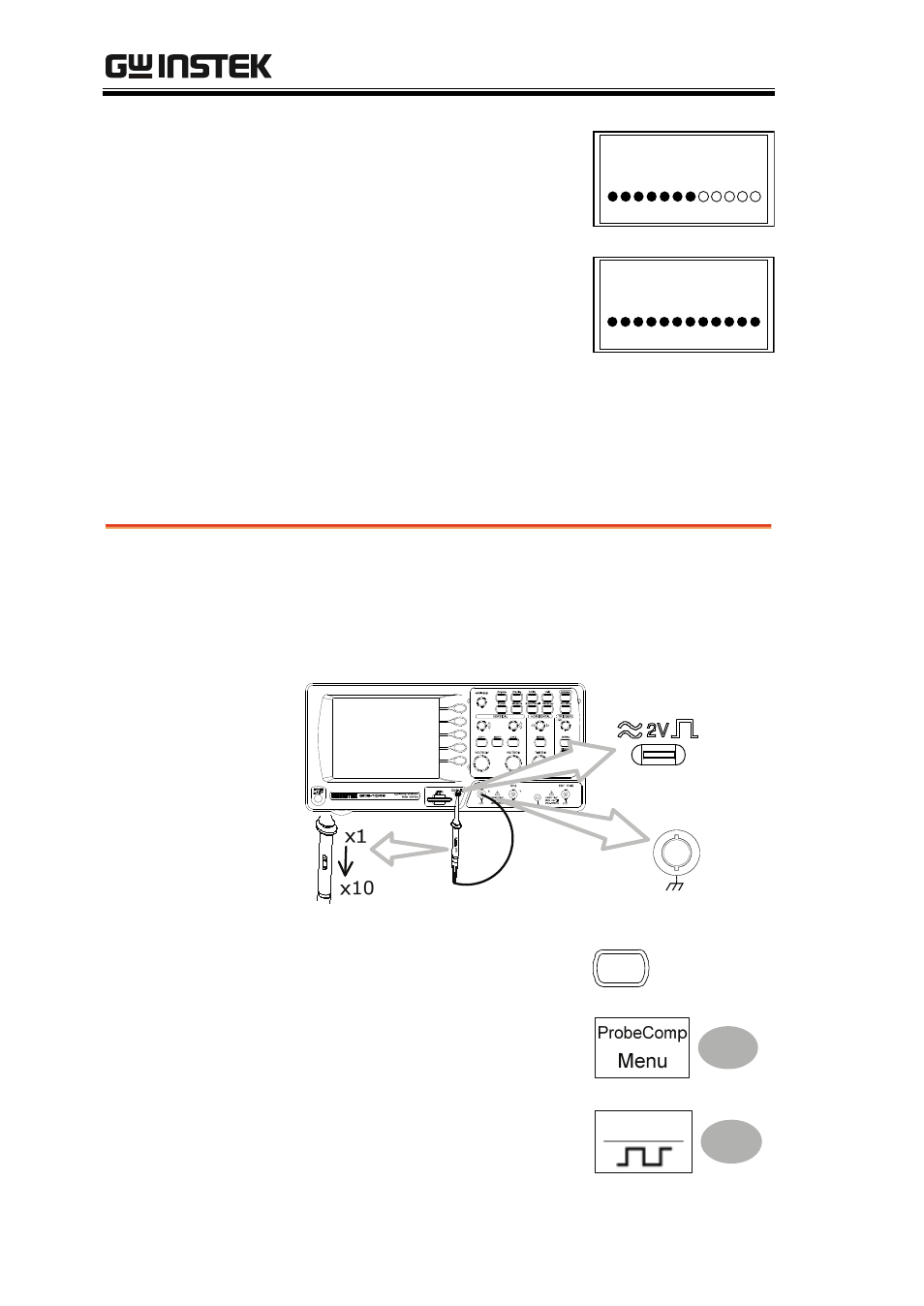

GDS-1000 Series User Manual

94

7. The Channel1 calibration

will complete in less than 5
minutes.

Ch1 calibration 1/3

8. When finished, connect the

calibration signal to the
Channel 2 input and repeat
the procedure.

Done!!

9. The calibration is completed and the display

goes back to the previous state.

Probe Compensation

Procedure

1. Connect the probe between Channel1 input and

the probe compensation output (2Vp-p, 1kHz
square wave) on the front panel. Set the probe
attenuation to x10.

CH1

2. Press the Utility key.

Utility

3. Press ProbeComp.

4. Press Wavetype repeatedly to

select the standard square
wave.

Wave Type
