GDS-1000 Series User Manual
50

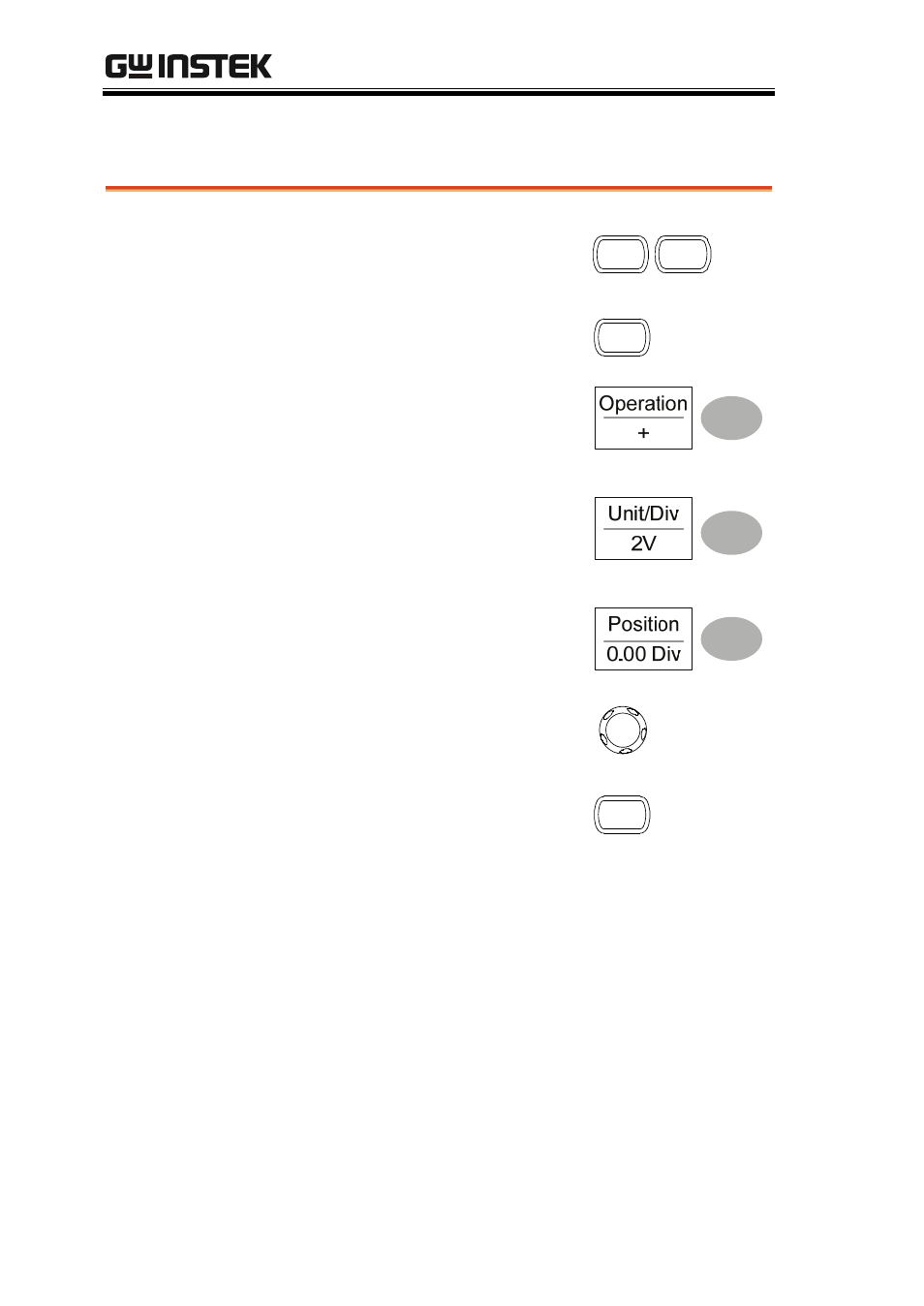

Adding or subtracting signals
Procedure 1. Activate both CH1 and
CH2.
CH 1 CH 2
2. Press the Math key. MATH
3. Press Operation repeatedly
to select addition (+) or
subtraction (–).
4. The math measurement
result appears in the
display.
5. To move the math result
vertically, press Position and
use the Variable knob.
VARIABLE
6. To clear the math result
from the display, press the
Math key again.
MATH
