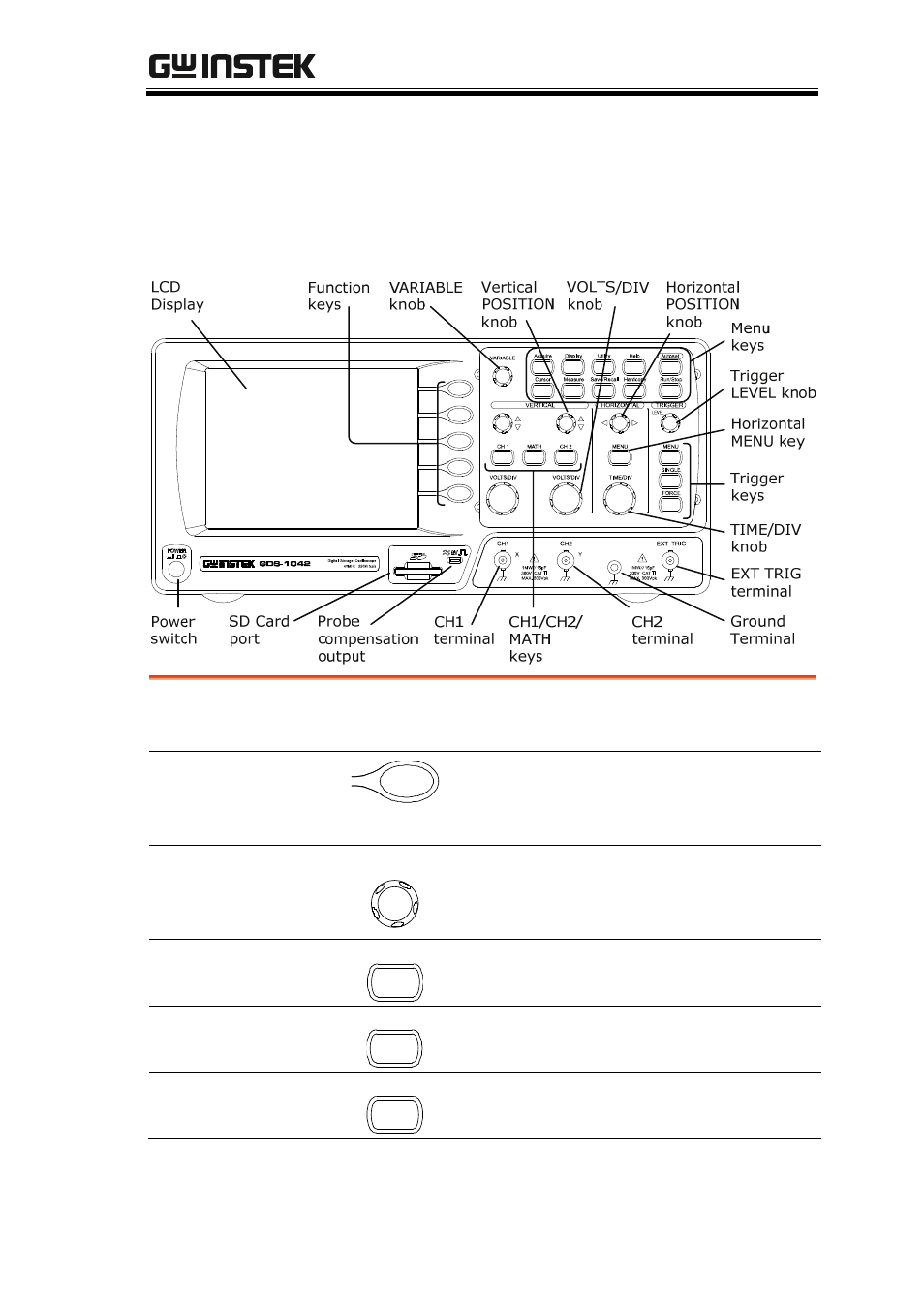

Panel Overview

Front Panel

LCD display

TFT color, 320 x 234 resolution, wide angle view
LCD display.

Function keys:
F1 (top) to
F5 (bottom)

Activates the functions which
appear in the left side of the LCD
display.

Variable knob

VARIABLE

Increases or decreases value and
moves to the next or previous
parameter.

Acquire key

Acquire

Configures the acquisition mode
(page52).

Display key

Display

Configures the display settings
(page55).

Cursor key

Cursor

Runs cursor measurements
(page46).
