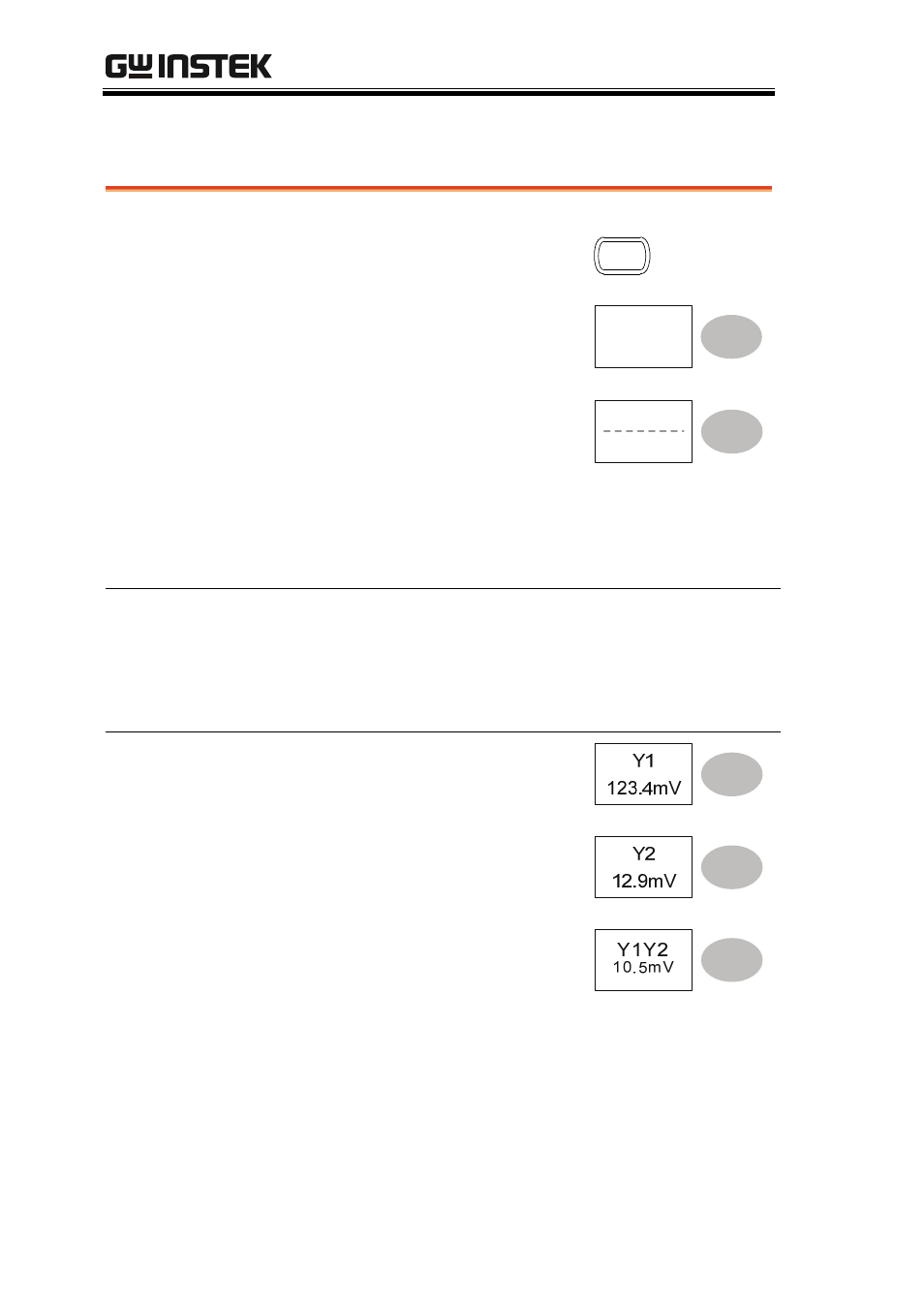

background image

GDS-1000 Series User Manual

48

Using the vertical cursors

Procedure

5. Press the Cursor key.

Cursor

6. Press X↔Y to select the

vertical (Y1&Y2) cursor.

X↔Y

7. Press Source repeatedly to

select the source channel.

Source

CH1

Range

CH1, 2, Math

8. The cursor measurement results will appear in

the menu.

Parameters Y1

Voltage level of the upper cursor

Y2

Voltage level of the lower cursor

Y1Y2

The voltage difference between the upper
and lower cursor

Moving the
vertical cursors

To move the upper cursor,
press Y1 and then use the
Variable knob.

To move the lower cursor,
press Y2 and then use the
Variable knob.

To move both cursors at once,
press Y1Y2 and then use the
Variable knob.
