MEASUREMENT

39

Waveform
operation

Waveforms can be moved or scaled in both the
Run and Stop mode. For details, see page57
(Horizontal position/scale) and page61 (Vertical
position/scale).

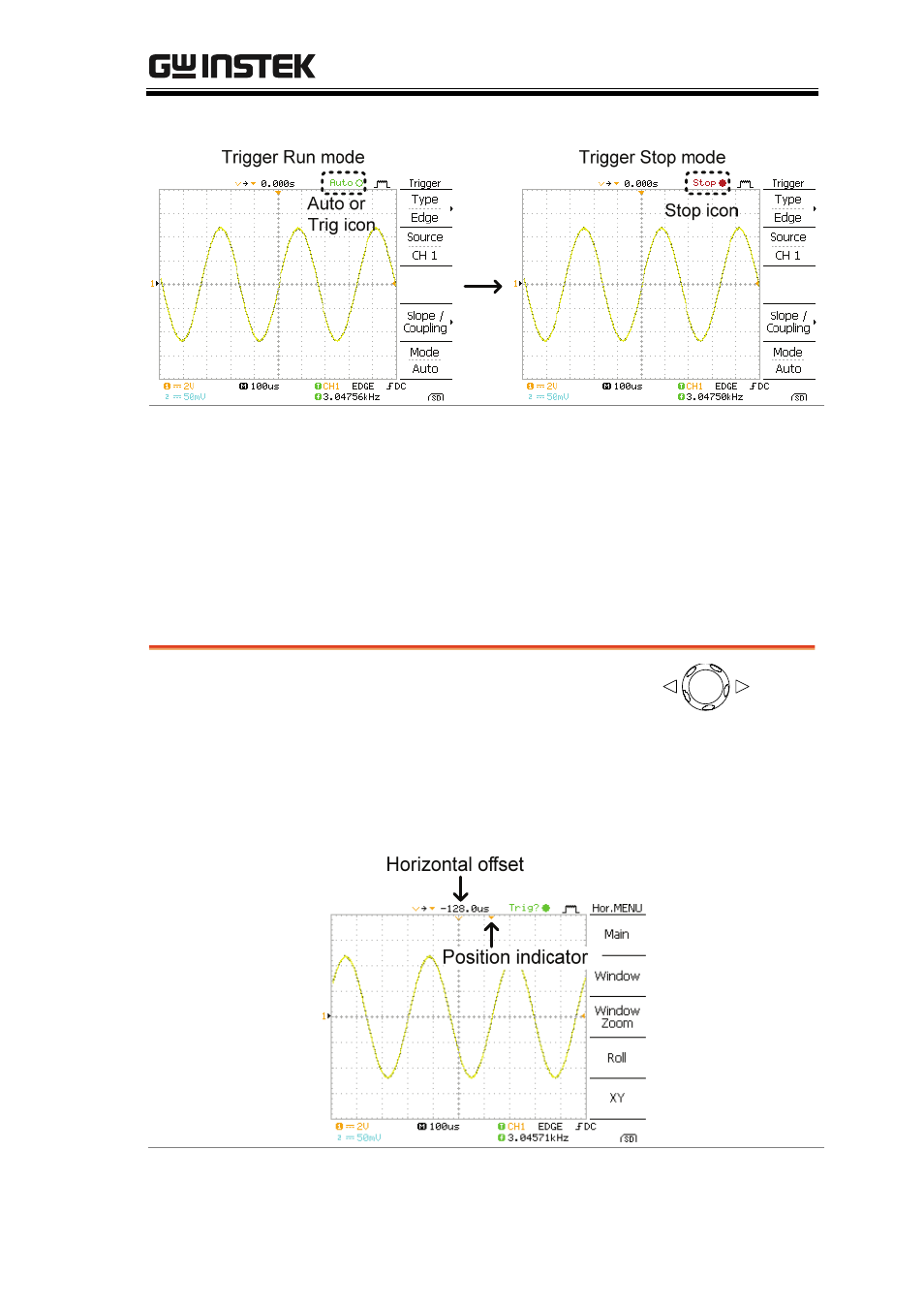

Changing the horizontal position and scale

For more detailed configurations, see page57.

Setting the
horizontal
position

The horizontal position knob
moves the waveform left or right.

The position indicator moves along with the
waveform and the distance from the center point is
displayed as the offset in the upper side of the
display.
