CONFIGURATION
63

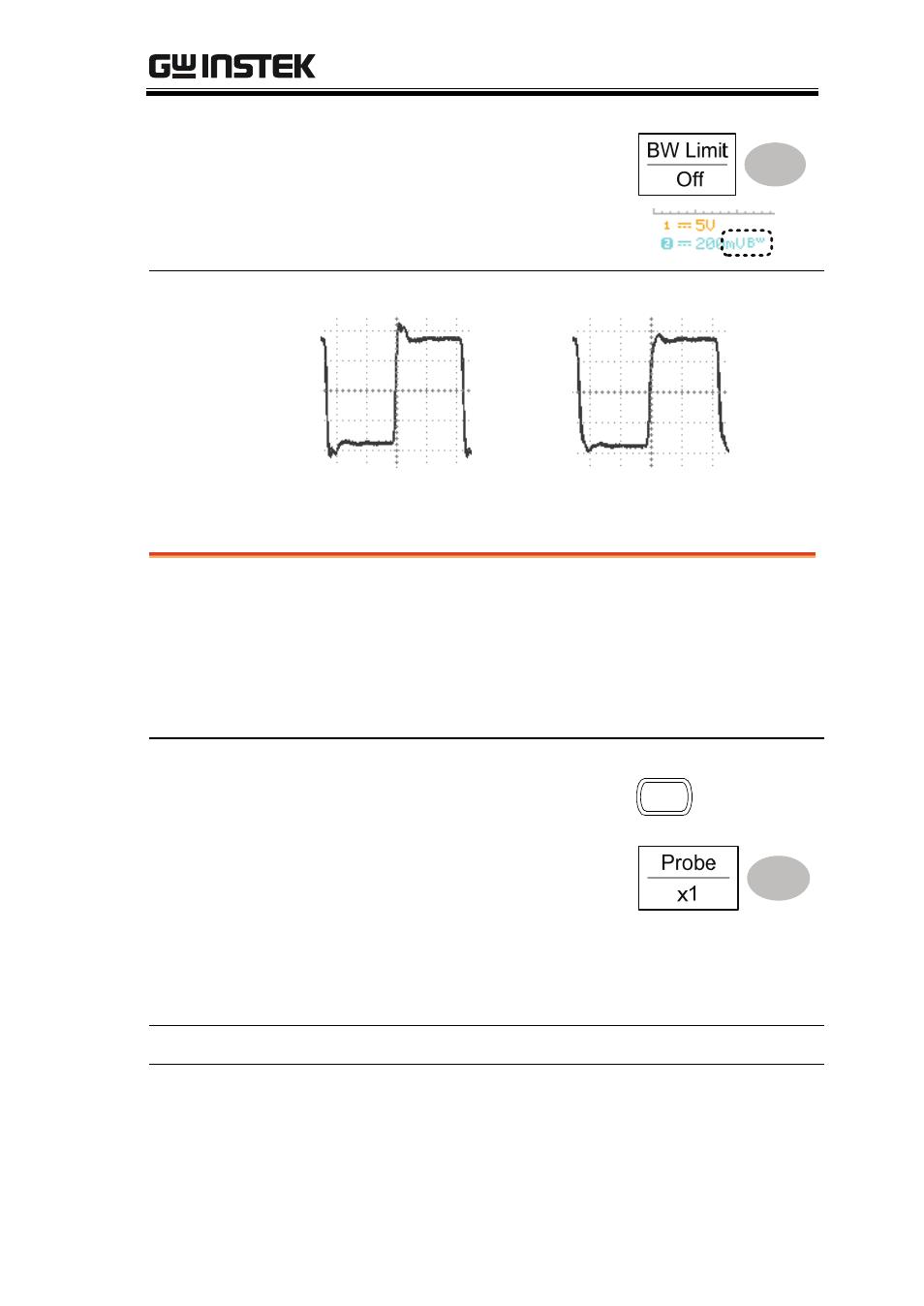

2. Press BW Limit to turn on or
off the limitation. When
turned on, the BW incicator
appears next to the Channel
indicator in the display.
Example BW Limit Off BW Limit On
Selecting the probe attenuation level
Background A signal probe has an attenuation switch to lower
the original DUT signal level to the oscilloscope
input range, if necessary. The probe attenuation
selection adjusts the vertical scale so that the
voltage level on the display reflects the real value,
not the attenuated level.
Procedure 1. Press the Channel key. CH 1
2. Press Probe repeatedly to
select the attenuation level.
3. The voltage scale in the channel indicator
changes accordingly. There is no change in the
waveform shape.
Range x1, x10, x100
Note The attenuation factor adds no influence on the
real signal; it only changes the voltage scale on the
display.
