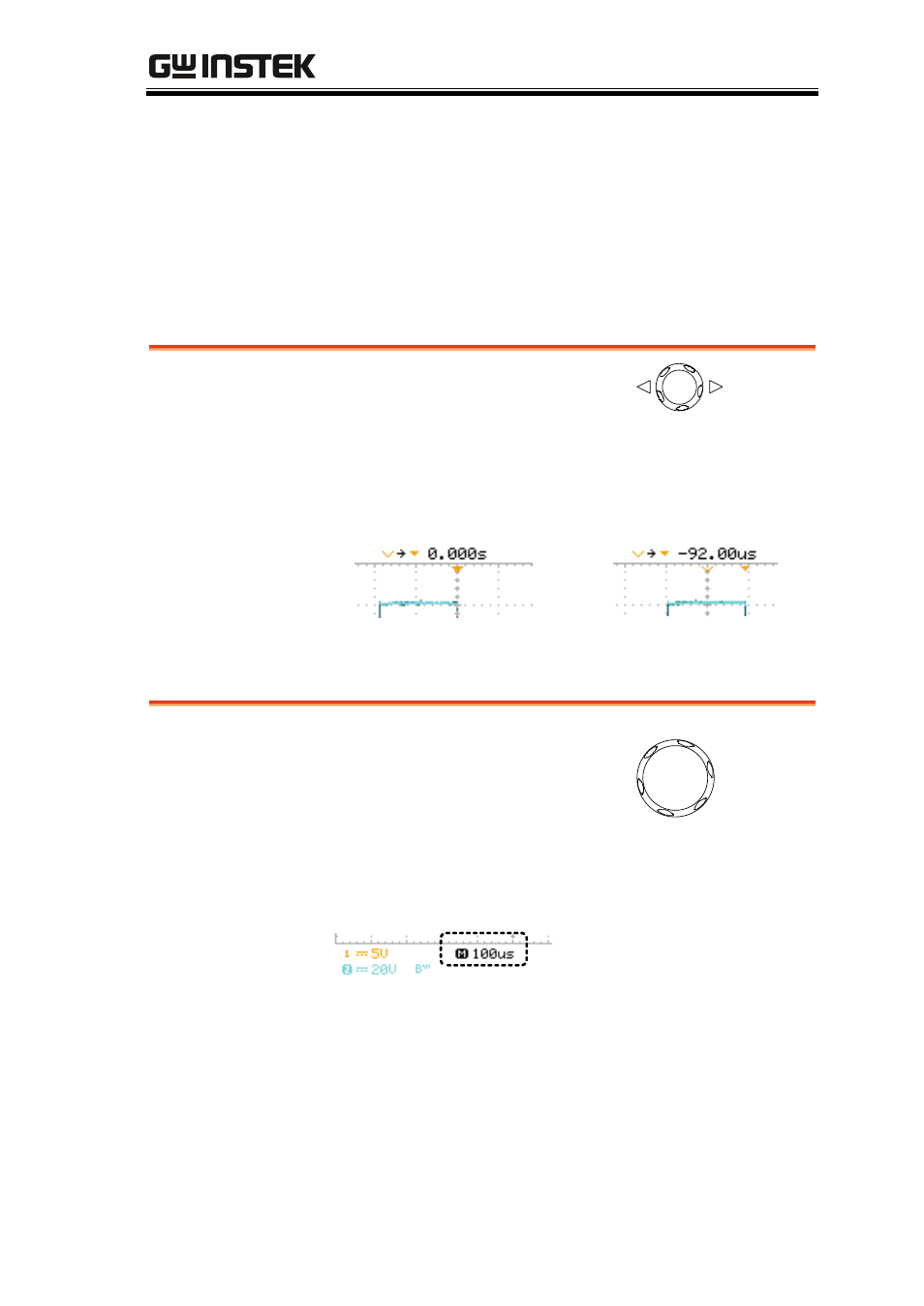

background image

CONFIGURATION

57

Horizontal View

The Horizontal view section describes how to configure the
horizontal scale, position, waveform update mode, window zoom,
and X-Y mode.

Moving the waveform position horizontally

Procedure

The horizontal position knob
moves the waveform left or
right. The position indicator at
the top of the display shows the
center and current position.

Center

position

Moving right

Selecting the horizontal scale

Select horizontal
scale

To select the timebase (scale),
turn the TIME/DIV knob; left
(slow) or right (fast).

TIME/DIV

Range

1ns/Div ~ 10s/Div, 1-2.5-5 increment

The timebase indicator at the bottom of the display
updates the current horizontal scale.
