CONFIGURATION
67

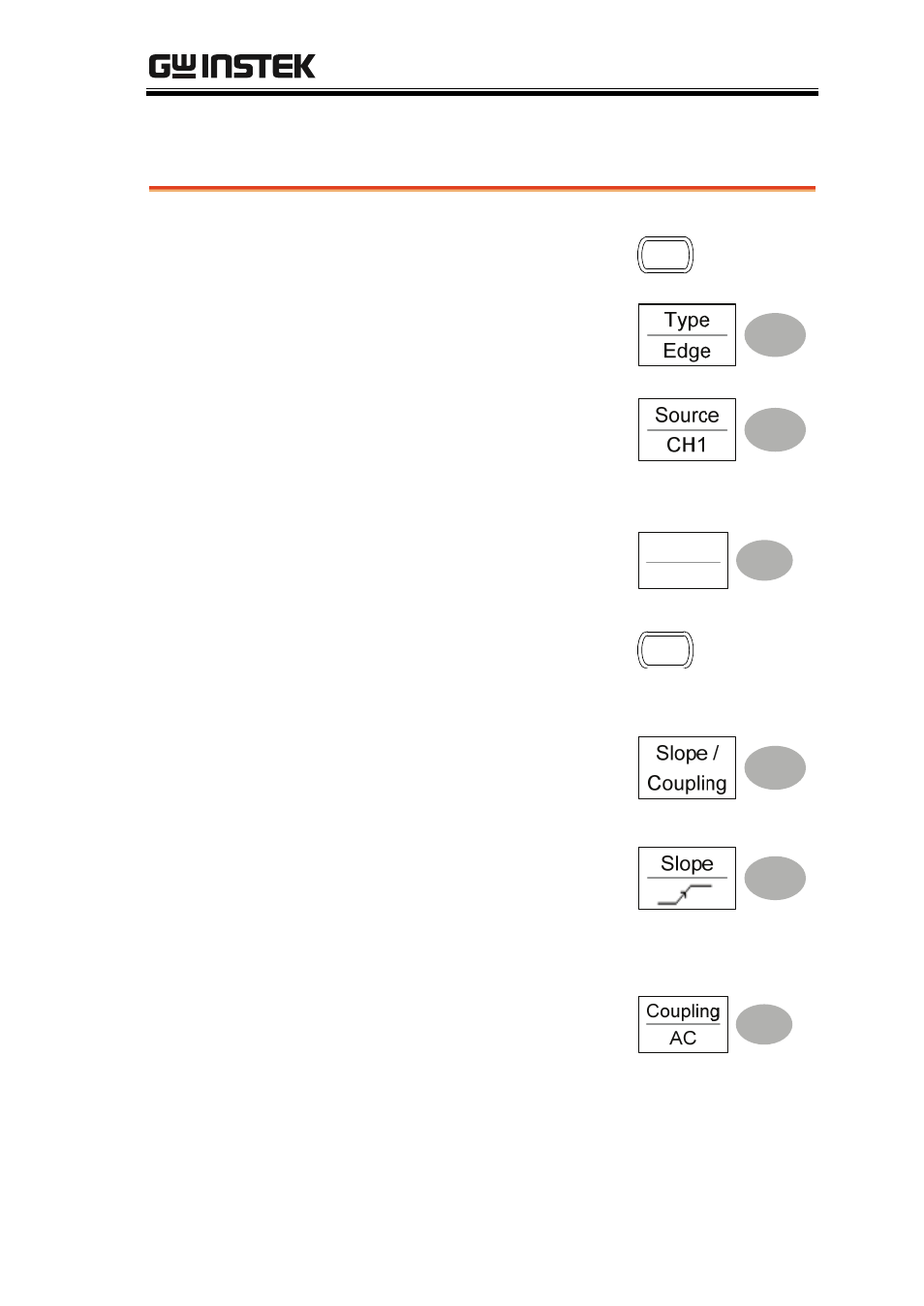

Configuring the edge trigger
Procedure 1. Press the Trigger menu key. MENU
2. Press Type repeatedly to
select edge trigger.
3. Press Source repeatedly to
select the trigger source.
Range Channel 1, 2, Line, Ext
4. Press Mode repeatedly to
select the Auto or Normal
trigger mode. To select the
Single trigger mode, press
the Single key.
Mode
Auto
SINGLE
Range Auto, Normal, Single
5. Press Slope/coupling to enter
into the trigger slope and
coupling selection menu.
6. Press Slope repeatedly to
select the trigger slope,
rising or falling edge.
Range Rising edge, falling edge
7. Press Coupling repeatedly to
select the trigger coupling,
DC or AC.
Range DC, AC
