OVERVIEW
15

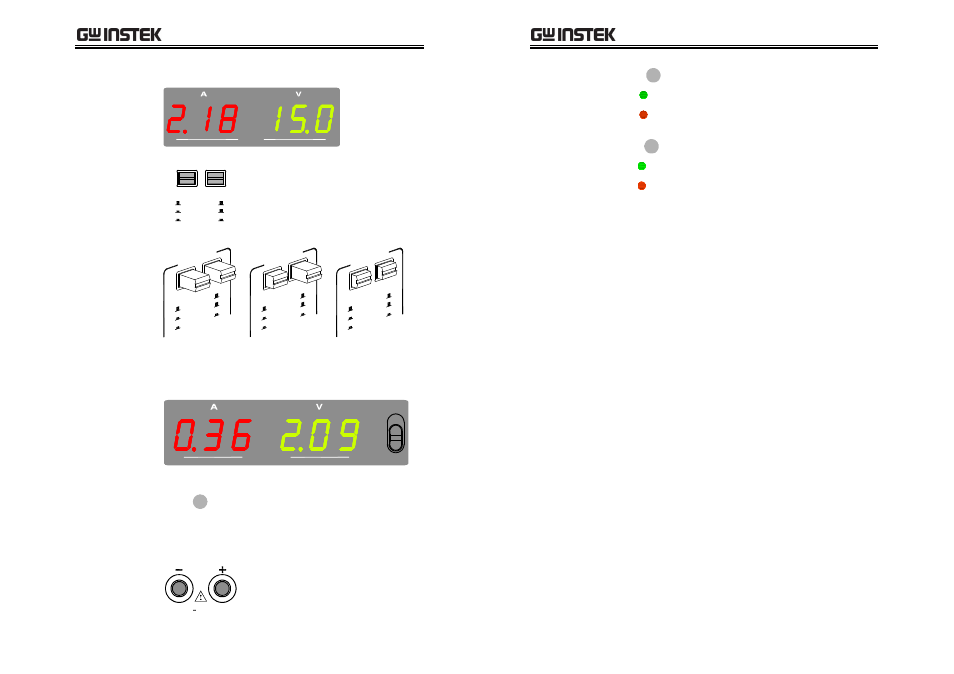

CH2 meter
Displays Channel2 current (A) and voltage (V).
CH2
Tracking mode
switches
TRACKING
INDEP.
SERIES
PARALLEL
Activates and selects the tracking
mode. For tracking mode details, see
page30 (Series) and page36
(Parallel).
Independent
TRAC
KING
INDE
P.
SERI
ES
PARA
LLEL
Tracking Series
TRAC
KING
INDE
P.
SERI
ES
PARA
LLEL
Tracking Parallel
TRAC
KING
INDEP
.
SERI
ES
PARA
LLEL
Displays Channel1 or Channel3 current (A) and
voltage (V). The switch on the right selects the
channel, 1 (up) or 3 (down).
CH1/3 meter +
switch
CH1 / CH3
CH1
CH3
Channel3
overload indicator
OVER LOAD
Turns red when Channel3 output
exceeds the current rating, 3A.
Channel3 switches from Constant
Voltage (CV) mode to Constant
Current (CC) mode.
Channel1/2/3
output terminal
CH3
0.1 5V , 3A
Accepts the load cables. For cable
connection details, see page24.
SPD-3606 User Manual
16
Channel1 CV/CC
indicator
C.V.
C.C.
Turns green when operating in
Constant Voltage (CV) mode, red in
Constant Current (CC) mode. For
CV/CC characteristics, see page18.
Channel2
CV/CC/PAR
indicator
C.V.
C.C.
PAR.
Independent mode:
Turns green in Constant Voltage
(CV) mode, red in Constant Current
(CC) mode.
Tracking parallel mode (page36):
When operating in the Tracking
Parallel mode, the Channel2
indicator always stays red (PAR).
Channel1 indicator shows the
CV/CC status.
