SETUP
21

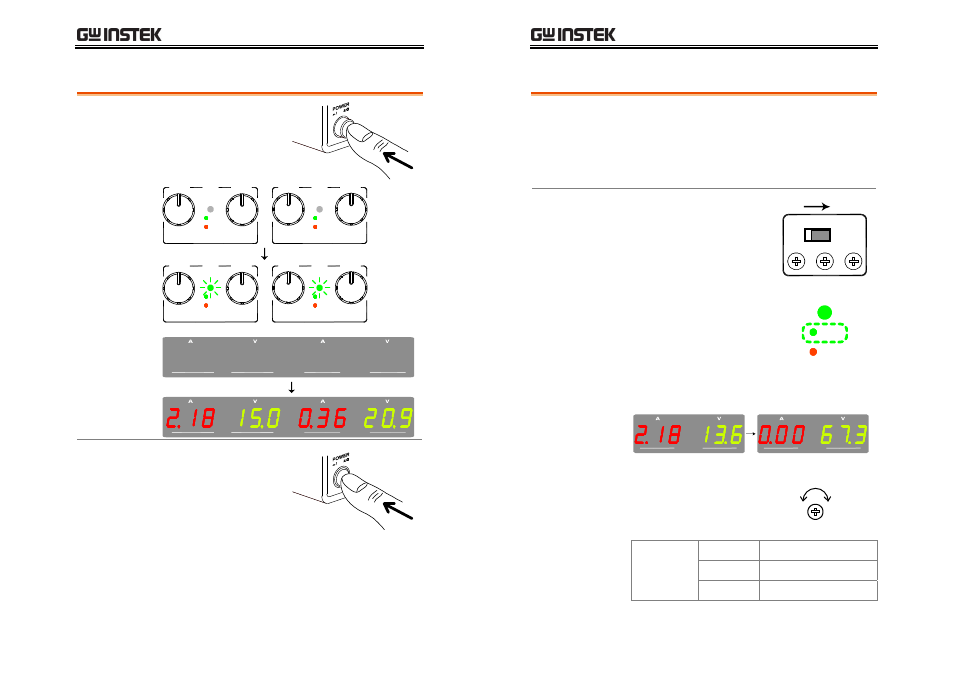

Power Up
Power On Press the Power switch to
turn On the power. The
CH1/CH2 indicators and
meters turn On.
VOLTAGE CURRENT CH1
MASTER
C.V.
C.C.
VOLTAGE CURRENT CH2
SLAVE
C.V.
C.C.
PAR.
VOLTAGE CURRENT CH1
MASTER
C.V.
C.C.
VOLTAGE CURRENT CH2
SLAVE
C.V.
C.C.
PAR.
CH1 / CH3 CH2
CH1 / CH3 CH2
Power Off Press the Power switch
again to turn Off the
power. After two
seconds, the meters and
indicators turn Off.
SPD-3606 User Manual
22
Over Voltage Protection Setup
Background Over Voltage Protection (OVP) protects SPD and
DUT from excessive output Voltage. The user sets
the maximum output voltage limit before
operation. When the output voltage exceeds this
limit, the indicator shows the over voltage status
and the output is shut off immediately.
OVP setup 1. Slide the rear panel switch
to the “O.V.P. SET”
position.
CH3 CH2 CH1
O.V.P. SET NORMAL
2. The OVP indicator on the
front panel turns green,
indicating OVP setup.
O.V.P.
SET
TRIP
3. The Voltage meters show the OVP setting level
instead of the output level. The Current meters
show zero (0.00).
CH1 / CH3 CH1 / CH3
4. Adjust the OVP level
using the rear panel
terminal. The setting on
the front panel meter
changes accordingly.
CH1
INCREASE DECREASE
Channel1 1.0V ~ 67.0V
Channel2 1.0V ~ 67.0V Setting range
Channel3 0.1V ~ 6.0V
