OPERATION
27

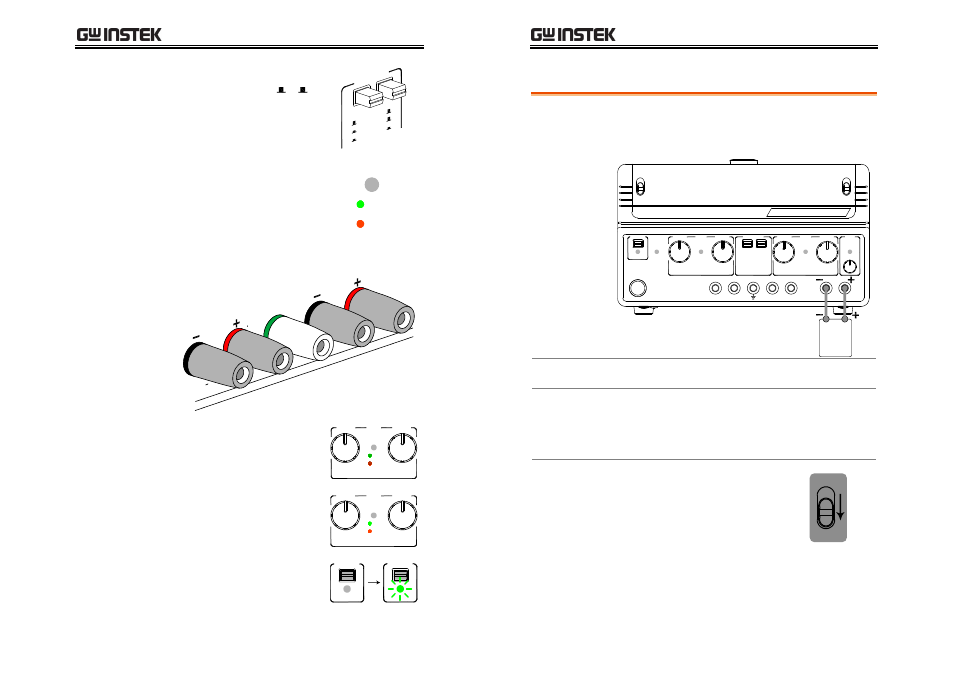

2. Set the tracking switch
position to INDEP, + .
TRAC
KING
INDE
P.
SERI
ES
PARA
LLEL
3. Set the OVP if necessary. For
details, see page22.
O.V.P.
SET
TRIP
4. Connect the load to the front panel terminals,
channel1 +/−, channel2 +/−.
CH2
CH1
GND
0 60
V , 3A
0 30
V , 6A
0 60
V , 3A
0 30
V , 6A
5. Set the output Voltage and
Current using the control
knobs for each channel.
VOLTAGE CURRENT CH1
MASTER
C.V.
C.C.
VOLTAGE CURRENT CH2
SLAVE
C.V.
C.C.
PAR.
6. Press the Output key. The
Output indicator turns
green.
OUTPUT
ON / OFF
OUTPUT
ON / OFF
SPD-3606 User Manual
28
CH3 Independent Mode
Background /
Connection Channel3 rating is 0.1 ~ 5V, maximum 3A. It works
independently from Channel1 and 2, regardless of
their modes.
CH3
CH3
LOAD
Output rating 0.1 ~ 5V, 3A maximum
No Tracking
Series/Parallel Channel3 does not have Tracking Series/Parallel
mode. Also, Channel3 output is not affected by
Channel1 and 2 modes:
independent/series/parallel.
Setting step 1. Set the CH1/CH3 meter
switch to the CH3 position.
CH1
CH3
