PERFORMANCE VERIFICATION
49

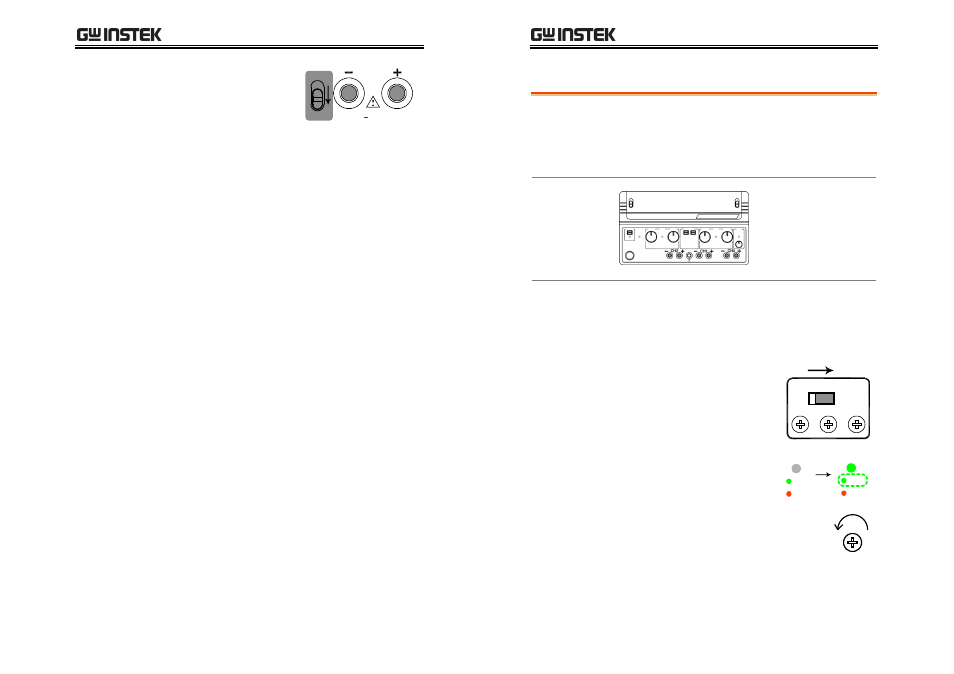

11. Connect the Multimeter
to SPD Channel3 and
repeat step 4, 5, 8, 9.
CH1
CH3
CH3
0.1 5V , 3A
* Skip step 6 and 7 since Channel 3 does not have
minimum current verification and Current knob.
SPD-3606 User Manual
50
OVP verification
Check item • OVP setting accuracy (Minimum)
• OVP functionality (Minimum)
• OVP setting accuracy (Maximum)
• OVP functionality (Maximum)
Connection
SPD-3606
(No connection)
Verification step 1. Set the SPD panel according to the Default
setting list, page41.
2. Power up SPD.
3. Set the OVP setting switch to
the “O.V.P. SET” position.
CH3 CH2 CH1
O.V.P. SET NORMAL
4. The O.V.P. indicator on the
front panel turns green.
O.V.P.
SET
TRIP
O.V.P.
SET
TRIP
5. Turn down the OVP setting
terminal to minimum. CH1
DECREASE
