OVERVIEW
9
O
VERVIEW

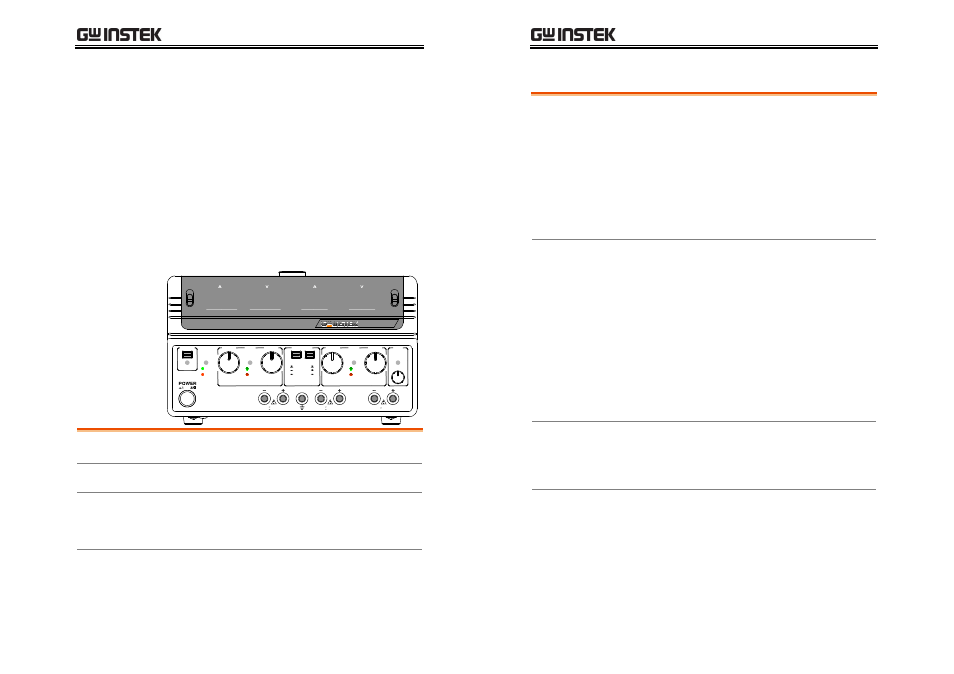

This chapter describes SPD-3606 in a nutshell,
including its main features and front / rear panel
introduction. After going through the overview,
follow the Setup chapter (page19) to properly
power up and set operation environment.
For initial inspection, refer to the Performance
verification chapter (page40).
VOLTAGE VOLTAGE CURRENT CURRENT
OVER LOAD
CH3
VOLTAGE
OUTPUT CH2 CH1
SLAVE MASTER
TRACKING
INDEP.
SERIES
PARALLEL
C.V.
O.V.P.
SET C.V.
C.C. TRIP C.C. PAR.
CH2 CH1 CH3 GND
0.1 5V , 3A 0 60V , 3A 0 30V , 6A 0 60V , 3A 0 30V , 6A
ON / OFF
Dual−Range DC Power Supply
CH1
CH3 CH1 / CH3 CH2
60V/3A
30V/6A
SPD-3606
Main Feature SPD-3606 Main Features ................................. 10
Theory Principle of Operation ..................................... 11
Panel overview Front Panel Overview ...................................... 14
Rear Panel Overview........................................ 17
CV/CC CV/CC Crossover Characteristics ..................... 18
SPD-3606 User Manual
10
SPD-3606 Main Features
Performance • Low noise (≤ 50dB, Cooling fan controlled by
Heatsink temperature)
• High efficiency power conversion, minimum
70% with full load
• Fast Output On/Off response (≤100ms)
• Low temperature coefficient
(≤100ppm/°C+3mV, ≤150ppm/°C+3mA)
• Compact size, light weight (6kg)
Operation • Constant voltage operation
• Constant current operation
• Tracking Series operation
• Tracking Parallel operation
• Output On/Off control
• 3 outputs with full Voltage control
• Output range selection for CH1 and CH2,
60V/3A or 30V/6A
• LED display
Protection • Over voltage protection (OVP)
• Overload protection
• Reverse polarity protection
Interface • Remote control output On/Off terminal
